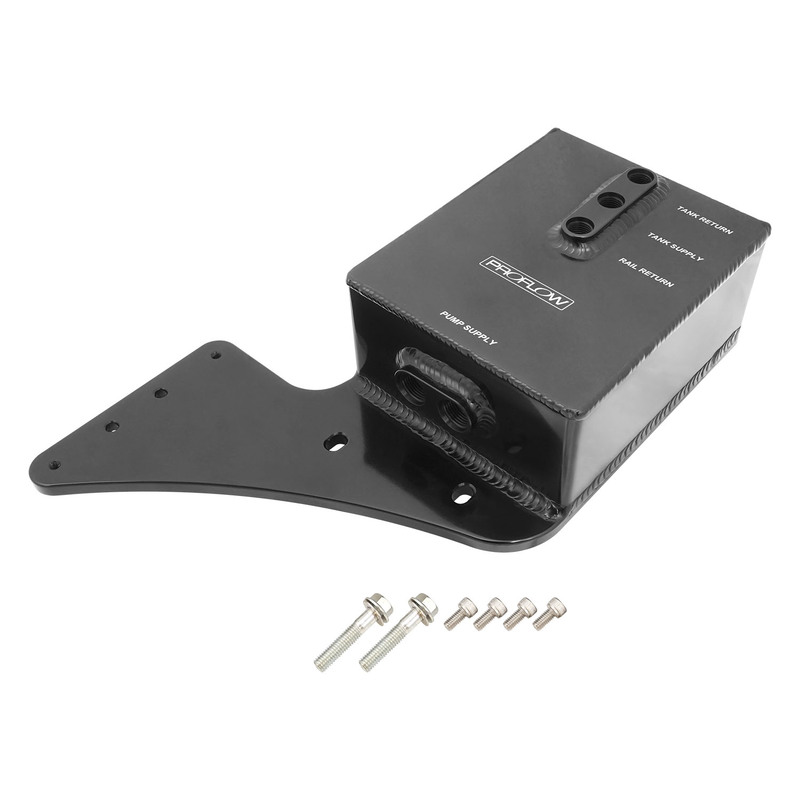

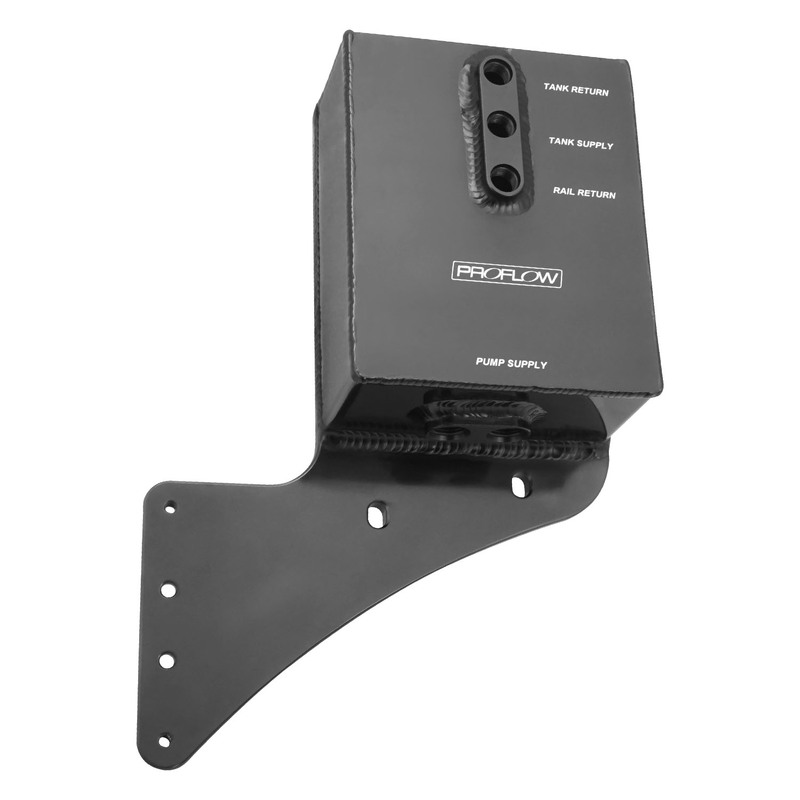

Eliminate starvation under low fuel conditions - especially during violent cornering, rapid acceleration, and hard braking, by installing the Proflow undercar fuel surge tank. This compact ford falcon surge tank has been recently re-designed for 2023, and bolts to the passenger side chassis rail which utilizes the two bolts from the swaybar bracket. This is positioned closely to where the factory fuel lines are locatedt to allow for simple fuel line plumbing.

The fabricated aluminium tank (increased wall thickness from 3mm to 4mm) is now TIG-welded to a 10mm thick billet aluminium base plate and can support up to 500rwkw using a single pump or 700rwkw using a double Proflow or Bosch style 044 fuel pump (brackets sold seperately). Double black anodised to resist corrosion against exotic fuels such as E85 and methanol. Includes replacement hex flange bolts.

Features:

  • 10mm thick billet base plate
  • 4mm thick TIG welded tank
  • Increased tank capacity to 2.0L
  • Fuel pump outlet ports have been moved to allow extra clearance from steering rack
  • Simpler to plumb than previous design
  • Single and dual fuel pump brackets directly bolt on
  • Grade 8.8 steel hex-flange mounting bolts supplied

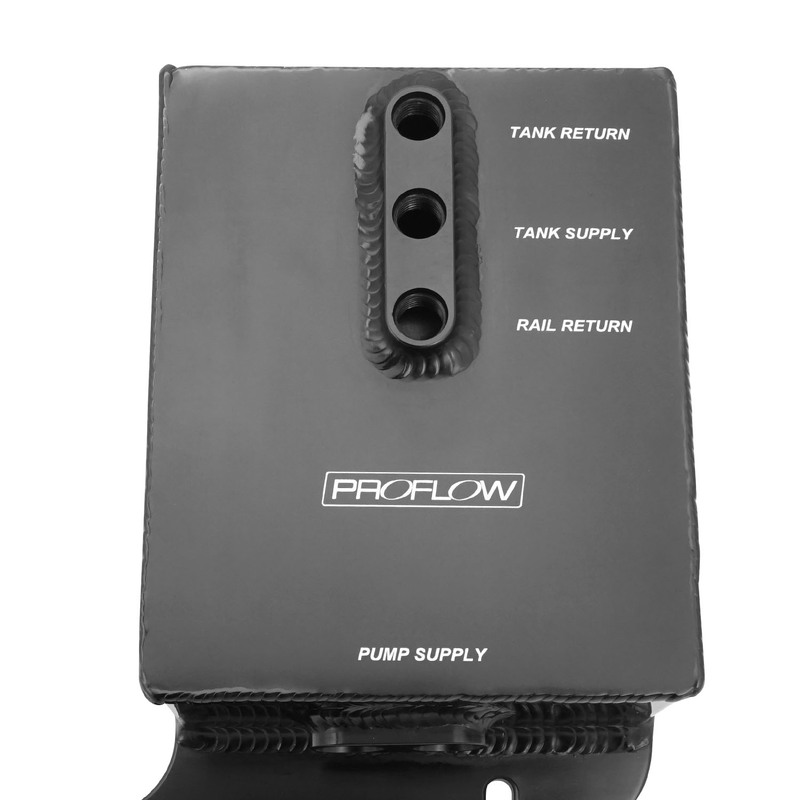

Ports:

  • 2x AN8 ORB Pump Supply Outlets
  • 1x AN6 ORB Tank Return/Overflow
  • 1 x AN6 ORB Fuel Supply Inlet
  • 1x AN6 ORB Fuel Rail Return

Accessory parts:

  • Single Pump Bracket: PFEBOSBK
  • Dual Pump Bracket: PFEFS5076
  • 90 Degree barb-to-barb fitting: PFE491-08

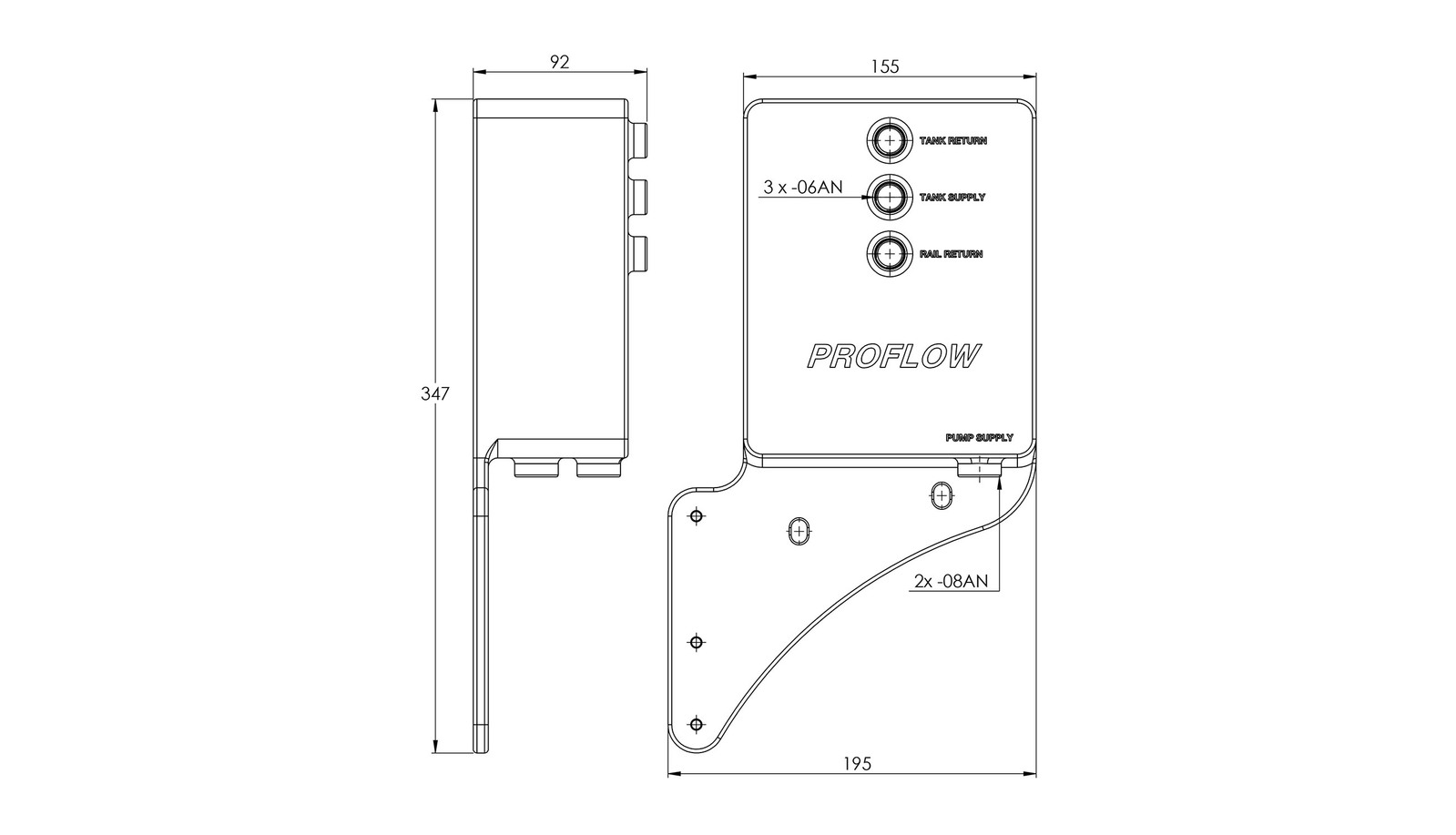

Proflow Fuel Surge Tank V2, Undercar, For Ford Falcon BA/BF/FG XR6 Turbo, XR8, 2.0L, Aluminium, Black Anodised Diagram Image
