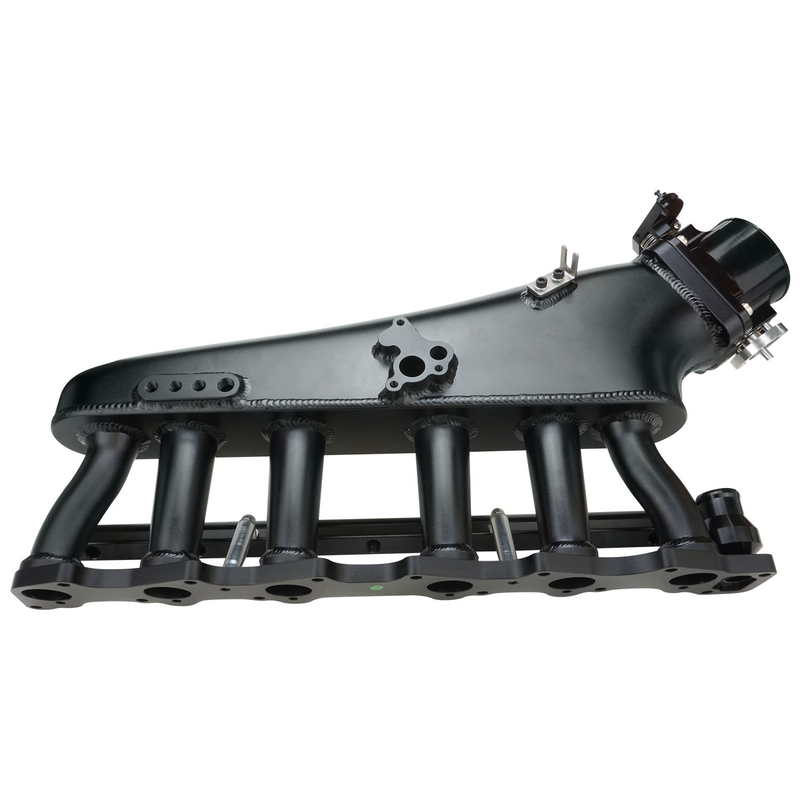

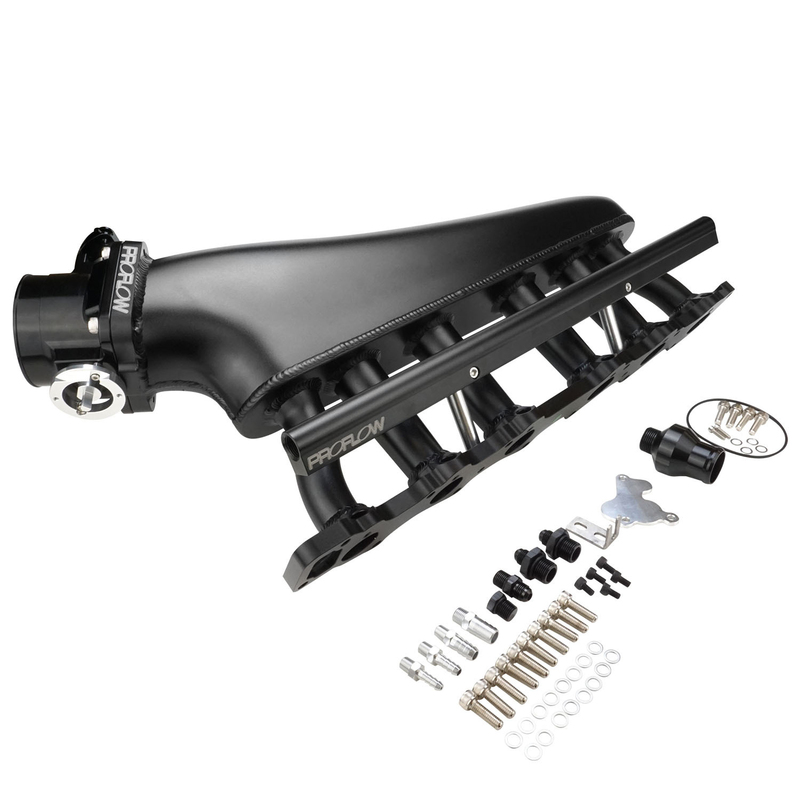

Proflow's fabricated aluminium intake manifold kits provide excellent mid range torque whilst dramatically improving top end power and is ideal for anyone looking to build an ultra responsive street or drag car. Featuring a 90mm throttle body, it seals with an o-ring and will bolt to any vehicle that was running a mechanical throttle body previously, using the supplied cable bracket. With a heavy duty billet flange, this manifold will perform best with any upgraded turbo packages and other aftermarket bolt ons.This kit comes complete with a 17mm ID fuel rail, fittings and all necessary hardware for mounting. Suits a full length 14mm O-ring injector. Does not suit factory style VL commodore injector. Some modifications may be required for fitment.

Suits the following vehicles with RB30 engines:

  • Nissan Skyline R31 Holden VL Commodore

Note: The top radiator hose will have have to be modified to clear the throttle body.

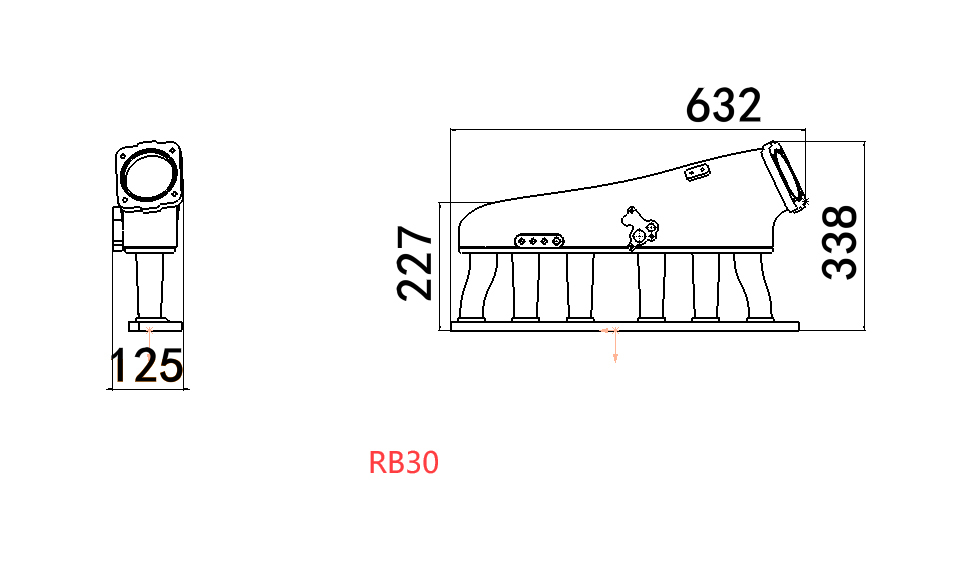

Proflow Intake Manifold Kit, Fabricated Aluminium, Black, For Nissan, Commodore RB30, Inlet Plenum, 90mm Throttle Body, Fuel Rail Kit Diagram Image
