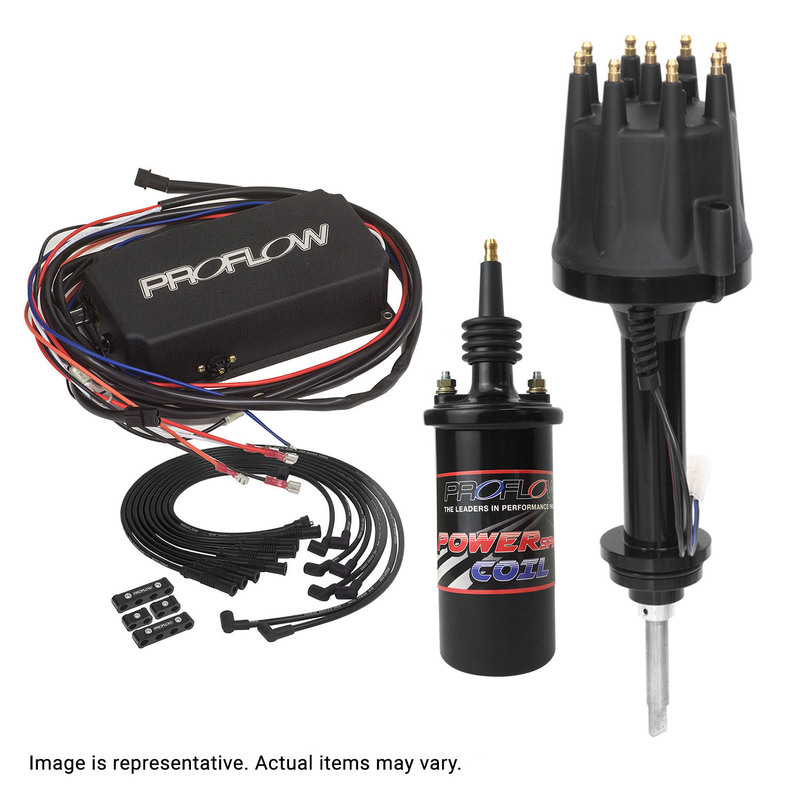

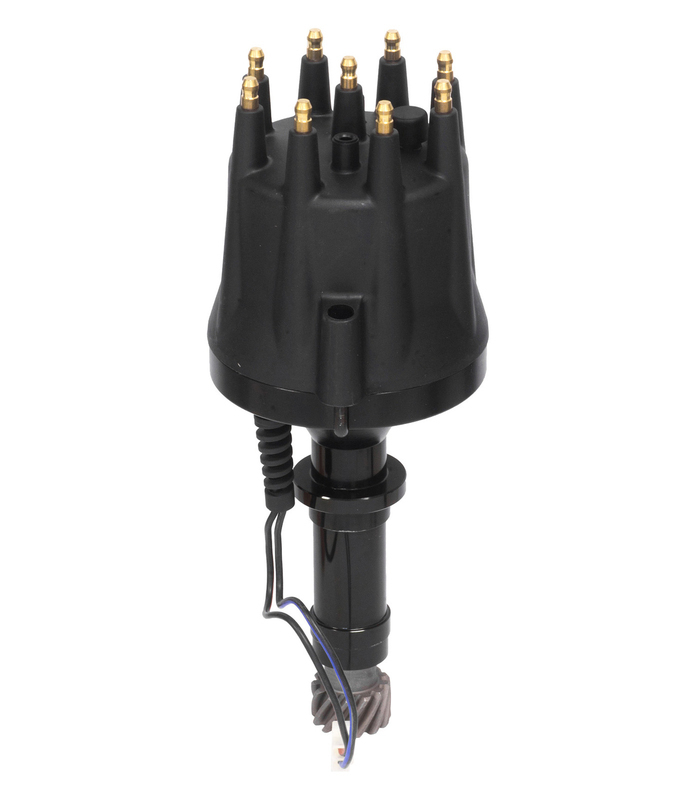

Proflow Ignition System Combo Kits offer improved performance and better throttle response. They're offered with our Pro Series magnetic pickup distributors, CDI ignition box, Pro Series spark plug wires and Striker coil. These combo kits are available for a variety of popular engine applications, such as Chevrolet, Ford, Holden, and Chrysler.

Includes : Distributor , Ignition Control Box, Coil, Ignition Leads & Seperators

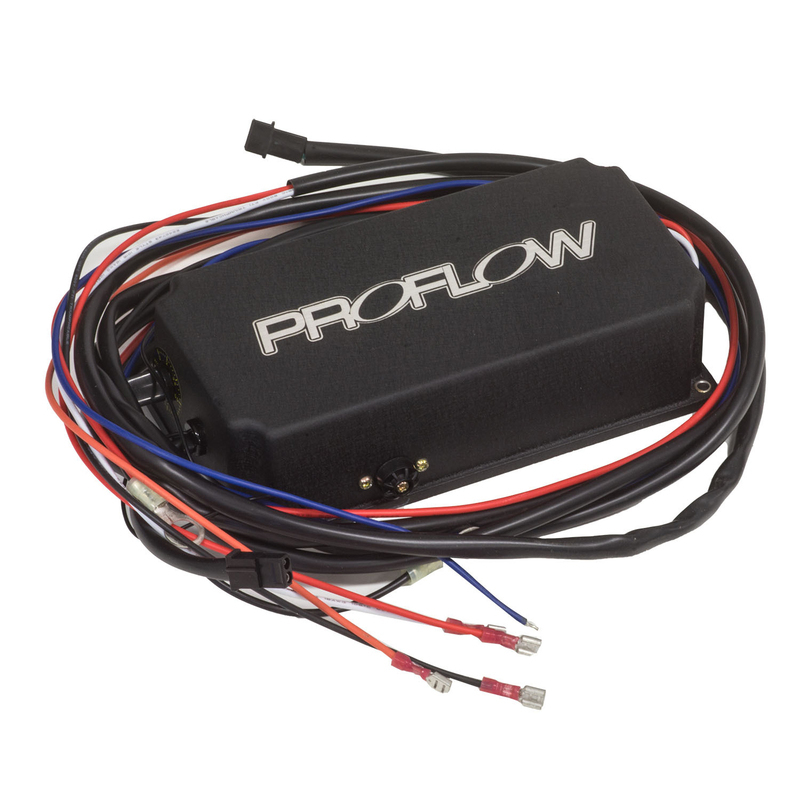

Proflow's Universal black CDI 6AL ignition boxes will increase voltage across the plug gap, improving drivability and performance for everyday drivers. They can be installed on 4, 6 or 8 cylinder engines equipped with a 12 V negative ground electrical system and distributor. These high-powered sparks ensure complete combustion of the fuel mixture at racing RPM, which in turn produces more power! Comes with the option of white wire trigger or 2-wire magnetic pickup connections.

Compatible with PFEIC8202, PFEIC8223, PFEIC92, PFEIC8207 Ignition Coils

Specifications

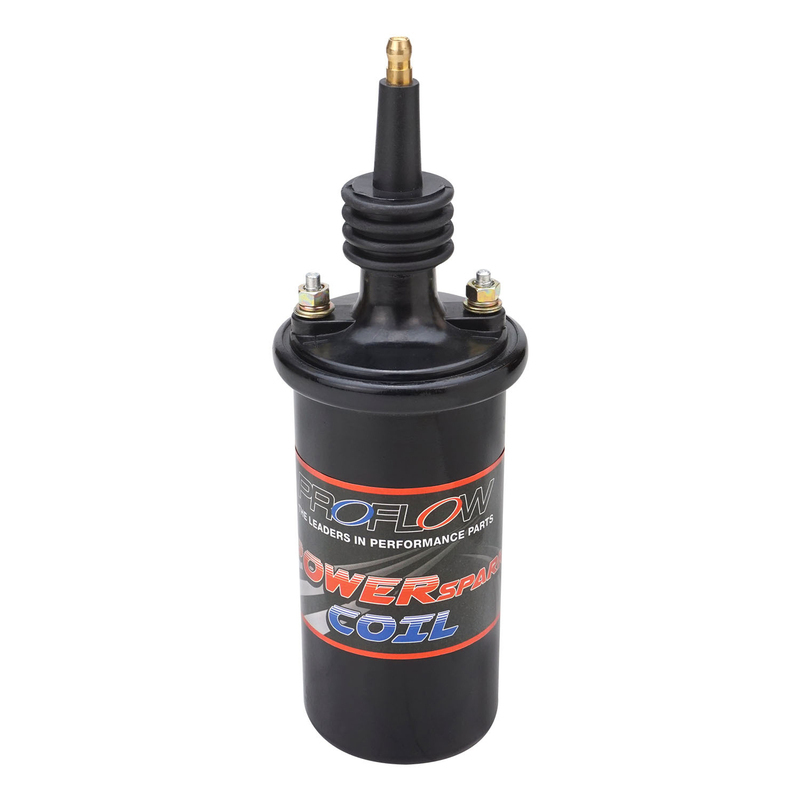

Proflow's PowerSpark's Striker Coils are engineered to significantly improve spark output over stock ignition coils, offering a maximum output of 45,000 volts. These black coils pair well with stock or Proflow's performance ignition systems. Each coil's alkyd tower assembly offers high dielectric characteristics, while wide-spaced brass primary terminals are designed to prevent the possibility of a spark. They also have an oil-filled metal canister and will fit stock mounting brackets.

Specifications:

• Inductance: 8 mH
• Max Voltage: 45,000 V
• Peak Current: 140 mA
• Primary Resistance: 0.7 Ohms
• Secondary Resistance: 4.5K Ohms
• Spark Duration: 300 uS
• Turn Ratio: 100:1

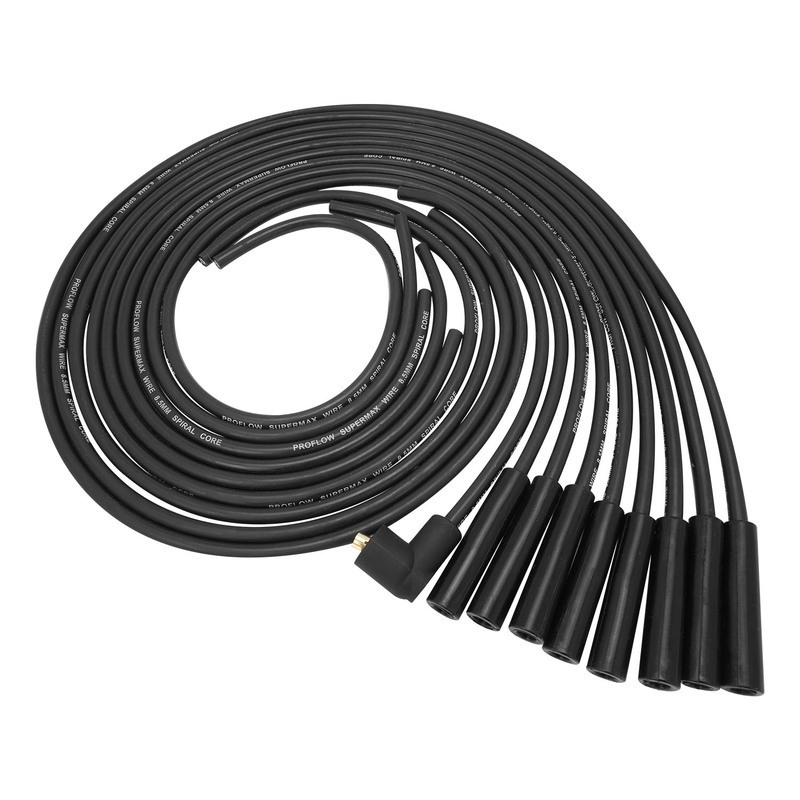

Proflow SuperMax Spiral Core Wire Sets

Proflow's SuperMax ignition wires combine an old-school look with current high powered ignition technology. Whether you’re using these for old school muscle cars or modern street rod, these 8.5mm wires have a super low Resistance of 50 ohm/ft, and an aramid inner core wrapped by a spiral-wound conductor for full spark delivery and excellent EMI suppression. A dielectric barrier prevents current leakage, and a braided fiberglass layer strengthens the wires, while maintaining flexibility.

Proflow's new ignition wires are available in various configurations with either Silicone or Ceramic plug boots, snap-fit stainless steel positive locking terminals on all plug ends with HEI cap terminals, while socket cap terminals are constructed from high quality brass.

For those applications where you could benefit from a combination of straight and 90 degree plug ends, we offer a kit that’s terminated with 2 plug ends and you can choose which you wish to cut off. All part numbers are available in choice of Red or Black wire with black silicone boots and come in either direct or universal fitment. Don’t be fooled by ignition lead diameter, it’s what’s inside that counts!

All universal kits are supplied with nylon lead separators and dielectric grease to aid in assembly.

Lead Lengths:

• 2x 52", 1x 48", 1x 45", 2x 37", 2x 33", and 1x 36" Coil Lead
