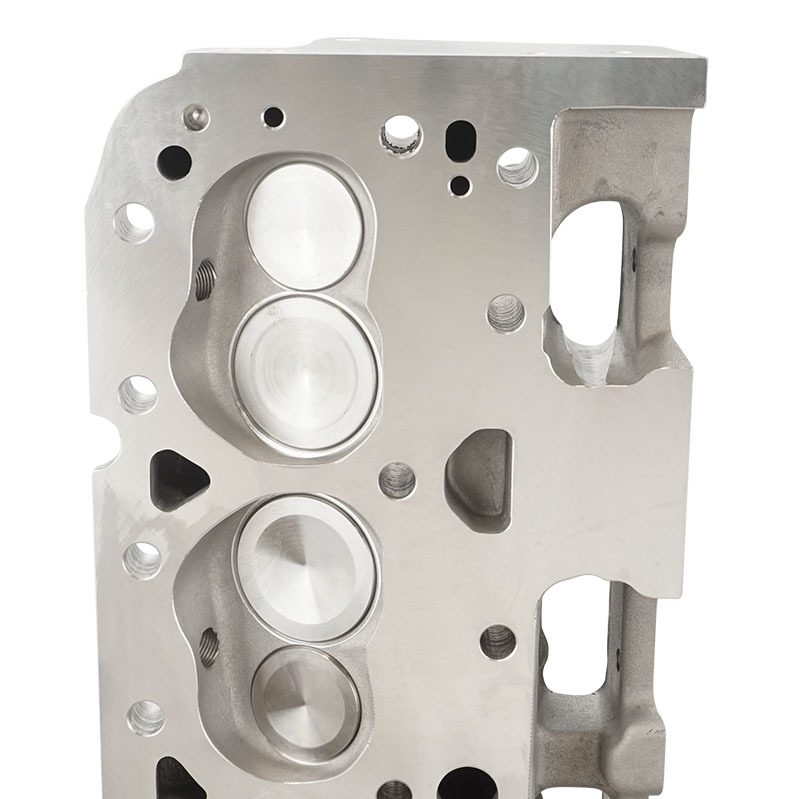

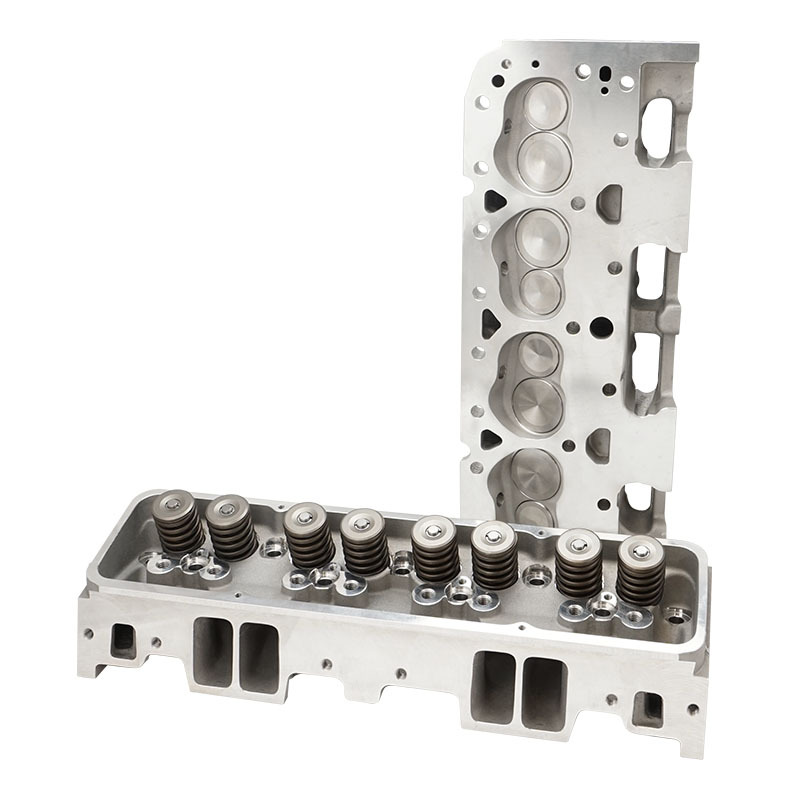

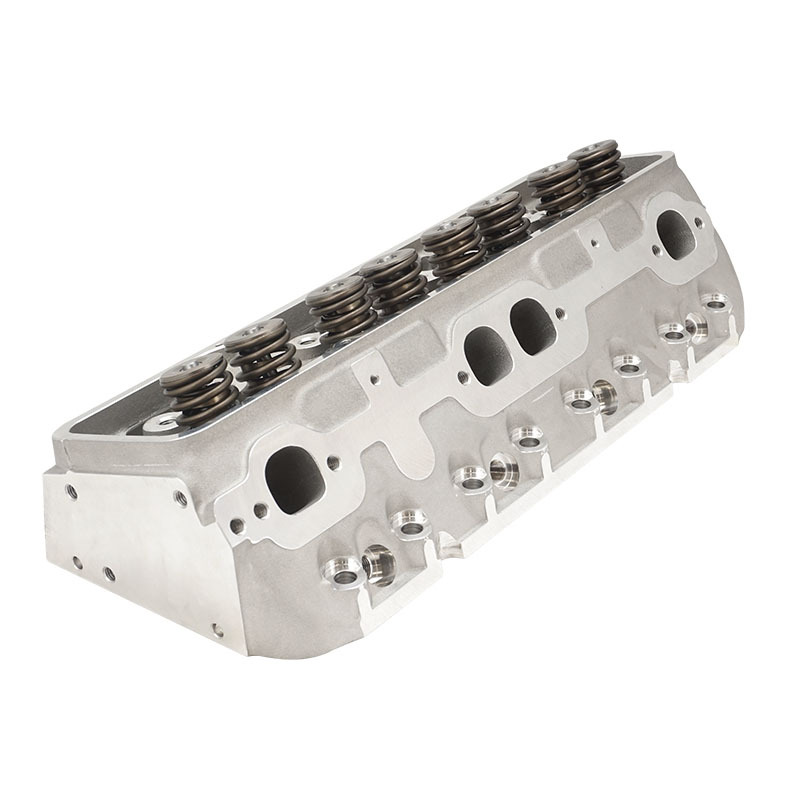

Proflow Cylinder Heads, AirMax 200,SB Chev Aluminium, Assembled, 64cc Chamber

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Specifications & Features:
Material A356 Aluminum
Intake Port Volume 200cc
Intake seat size 2.02
Exhaust seat size 1.6
Intake Port Dimension 2.050" H x 1.250" W x 5/16° Radius
Intake Port Location Stock
Exhaust Port Volume 64cc
Exhaust Port Dimension 1.450" H x 1.550" W
Exhaust Port Location 0.100" Raised
Combustion Chamber  65cc or 72cc
Valve Cover Bolt Pattern Perimeter Bolt
Valve Angle 23°
Valve Spring Pocket Diameter 1.460" O.D
Max Valve Spring Pocket Machining 1.750" O.D
Warning: Do not machine spring pad any deeper.
Deck Thickness .750"
Minimum Bore Diameter 4.000"
Flat Mill .006" per cc 60cc Maximum
Angle Mill .009" per cc 55cc Maximum
Note: Angle mills might require .120 thick intake gasket.
Minimum Cross Sectional Area 1.810 sq. in.
Spark Plug Dimensions 14mm x .750" w/Gasket Seat

Spark Plug Position Angle Plug option

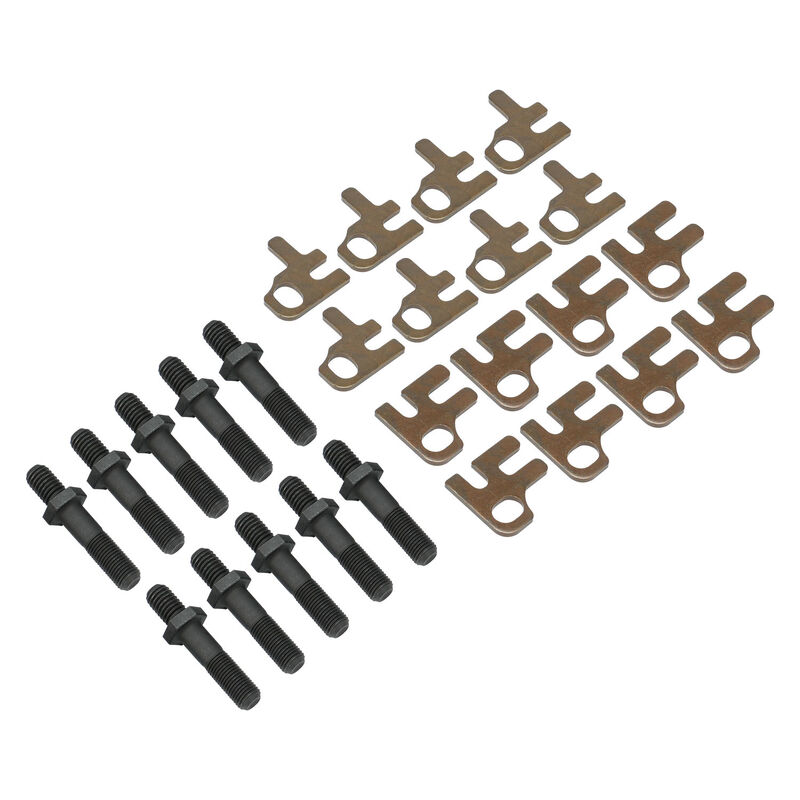

7/16 Studs Included 7/16
Adjustable GuidePlates Included 5/16
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit MIC heads.

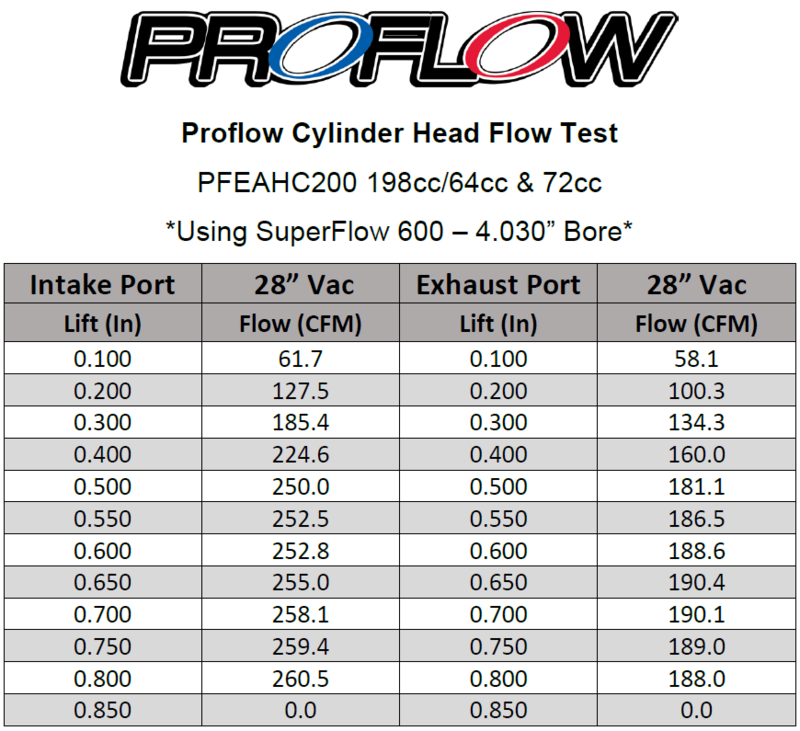

Proflow Cylinder Heads, AirMax 200 SB Chev, 535HP, Aluminium, Assembled, 7/16 Studs, Adj G/Plates, 64cc Chamber, Angle Plug, 200cc Intake Runner, Pair Diagram Image
