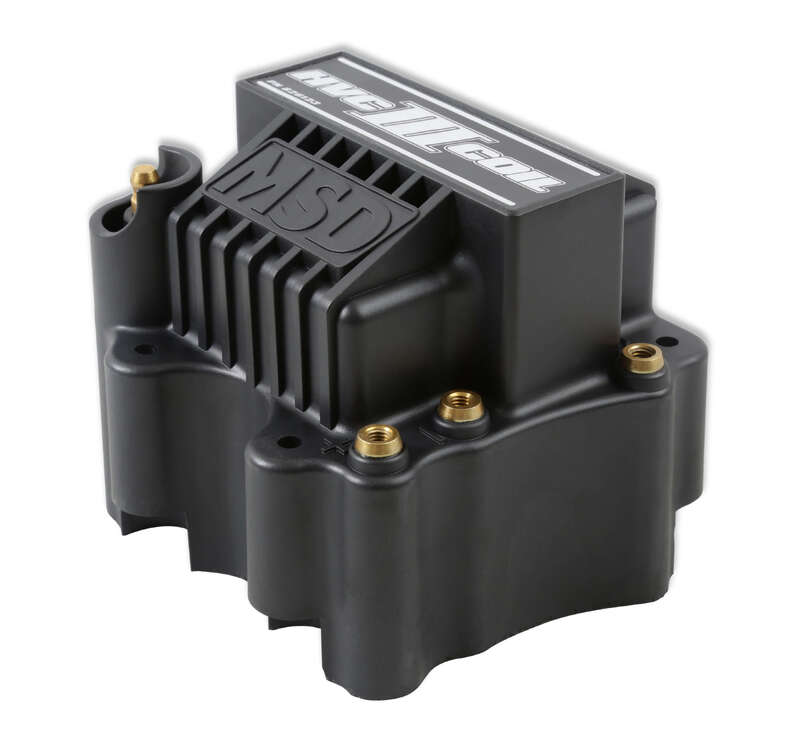

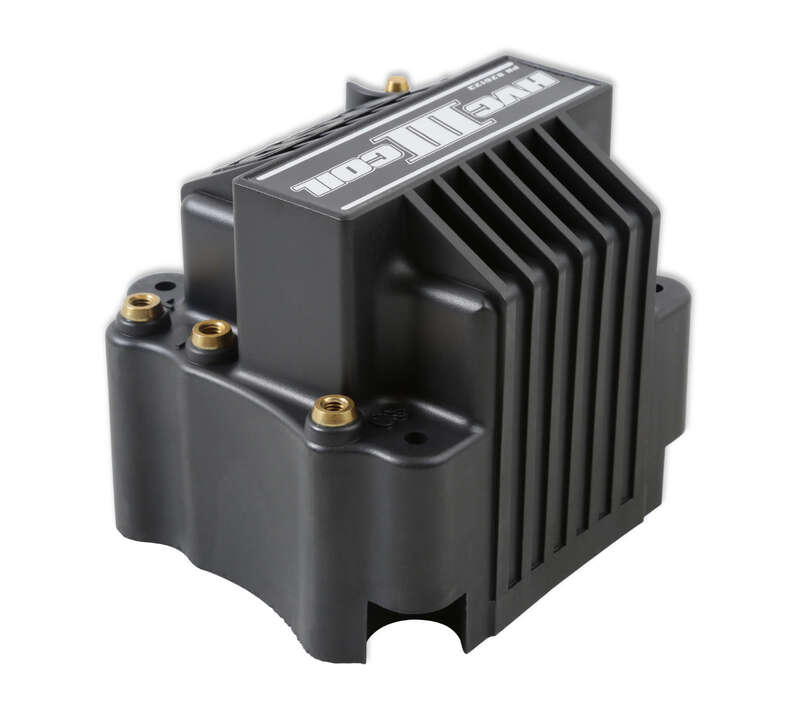

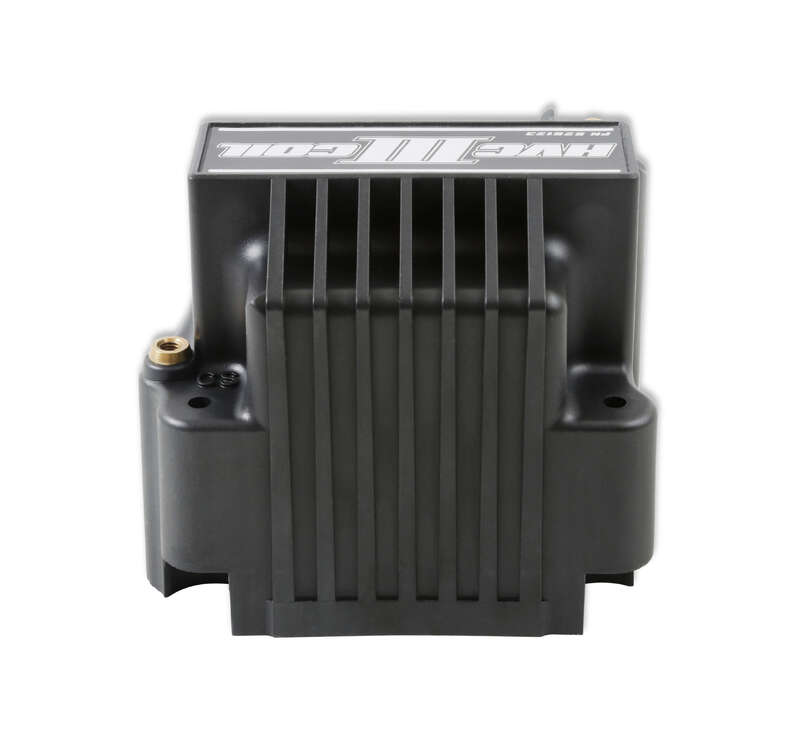

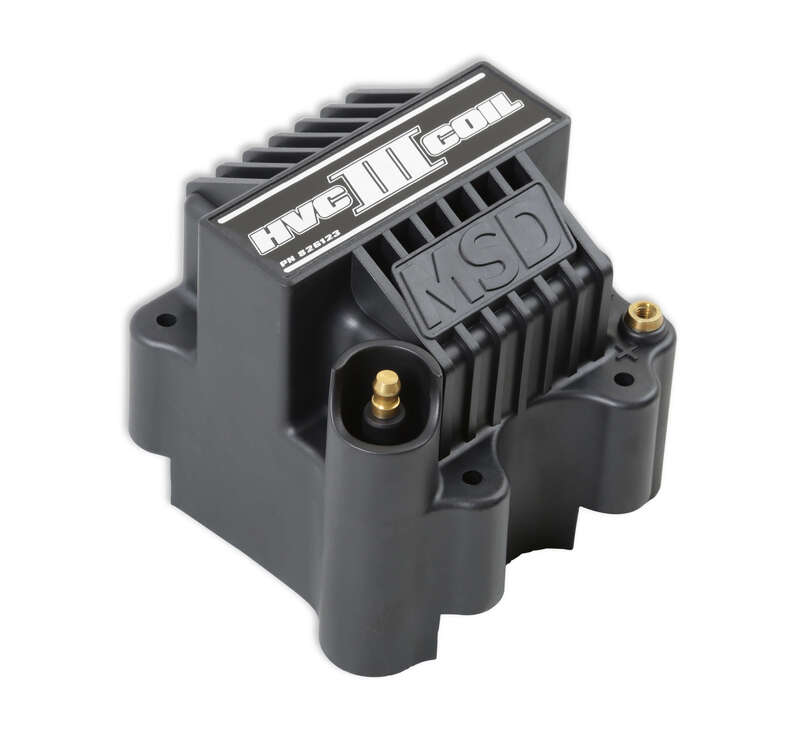

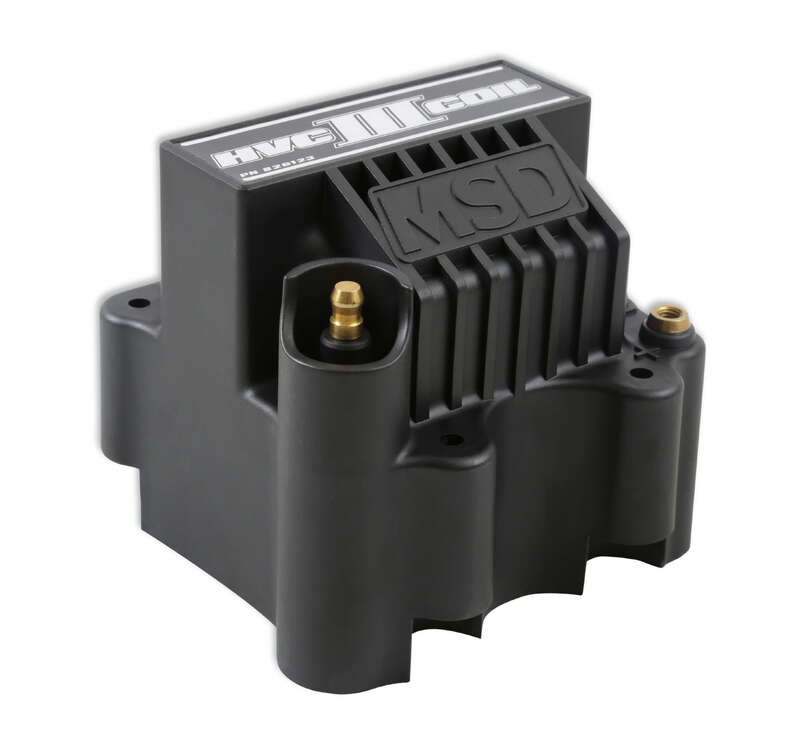

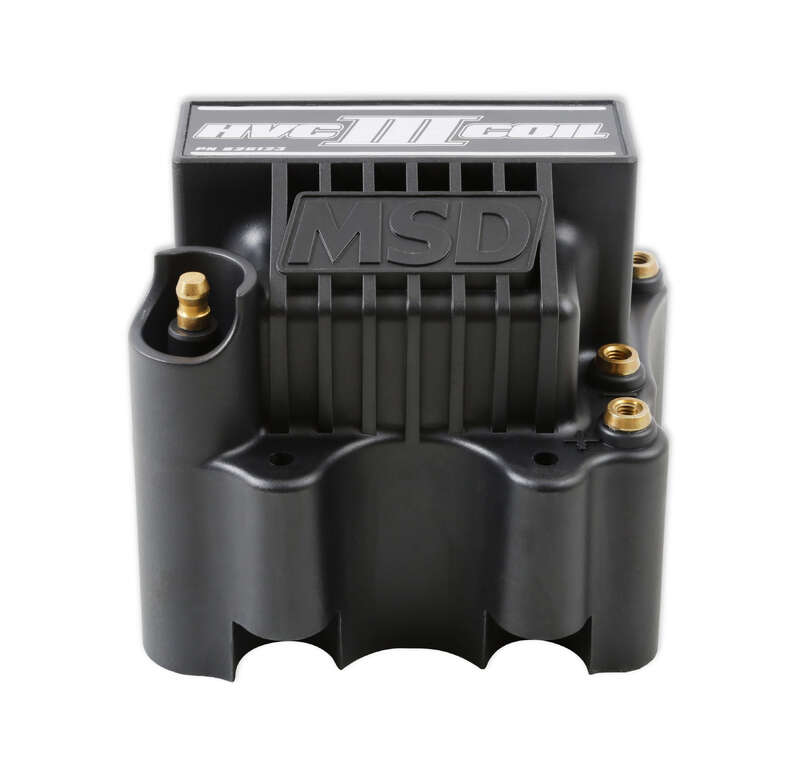

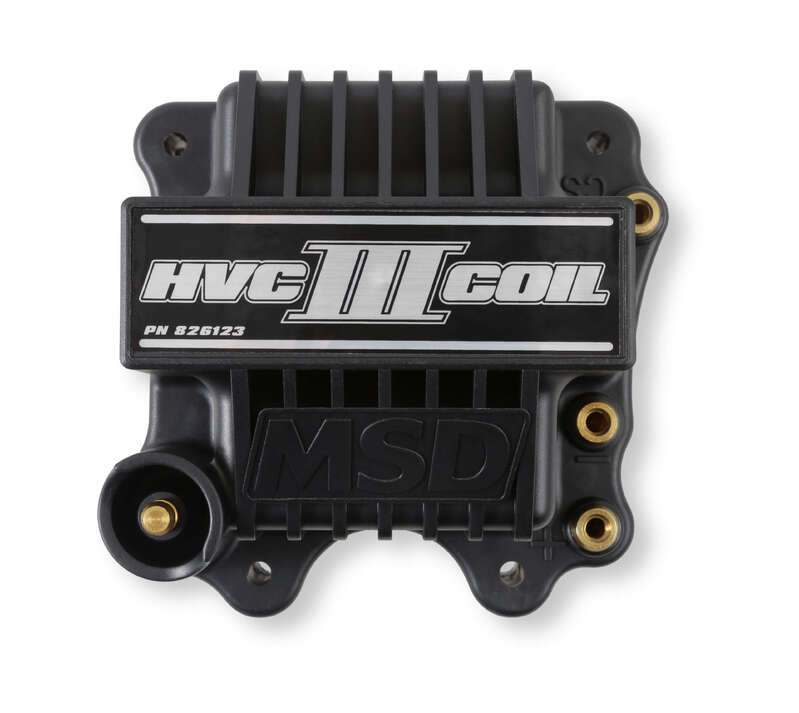

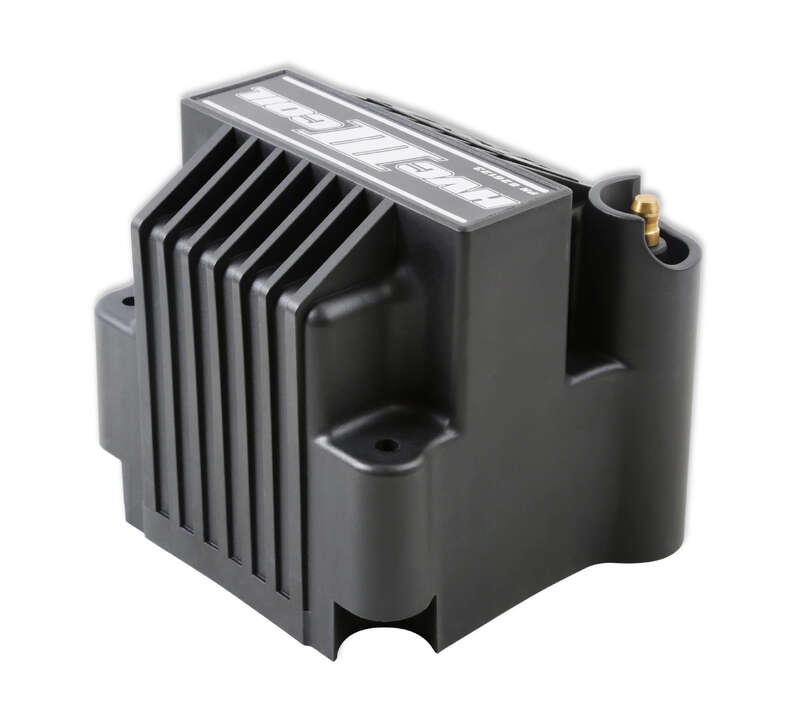

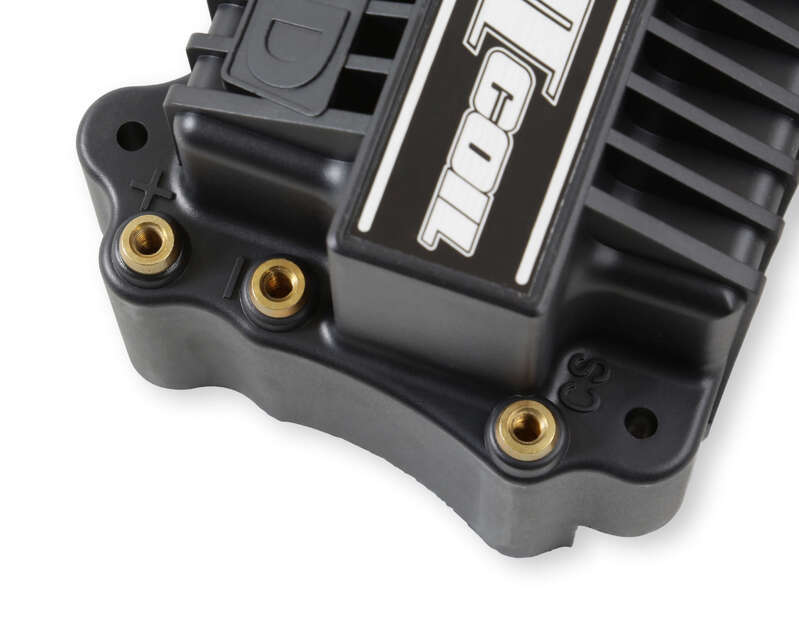

The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.

Features:
  • Designed for racing applications with an MSD 7 or 8 Series Ignition Control or Pro 600 Single Channel - P/N 8001
  • New U-Core winding design produces more voltage and current
  • 70:1 turns ratio and lower primary resistant compound for vibration resistance
  • Windings are encased in fracture resistant compound for vibration resistance

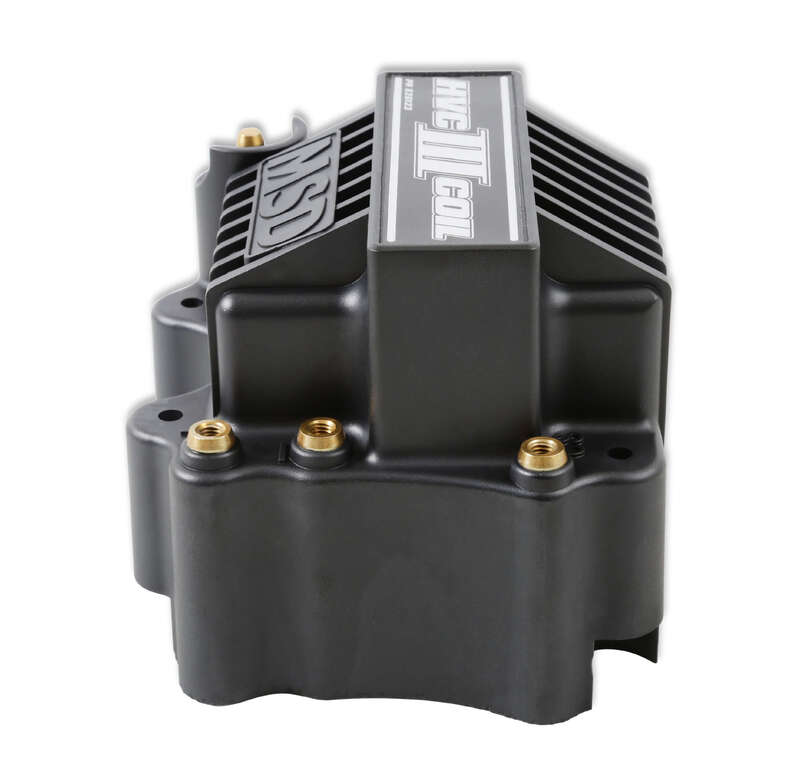

  • Dupont Rynite housing with isolated tower and brass primary terminals

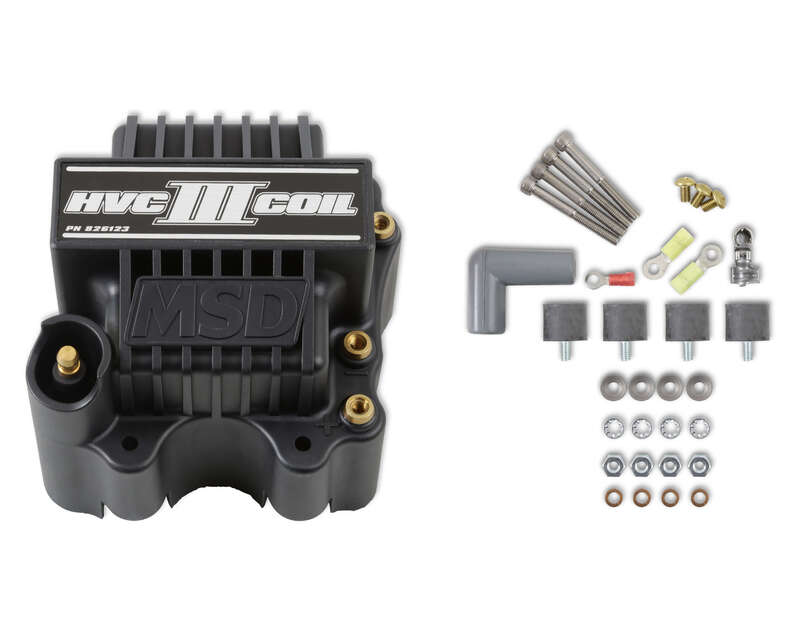

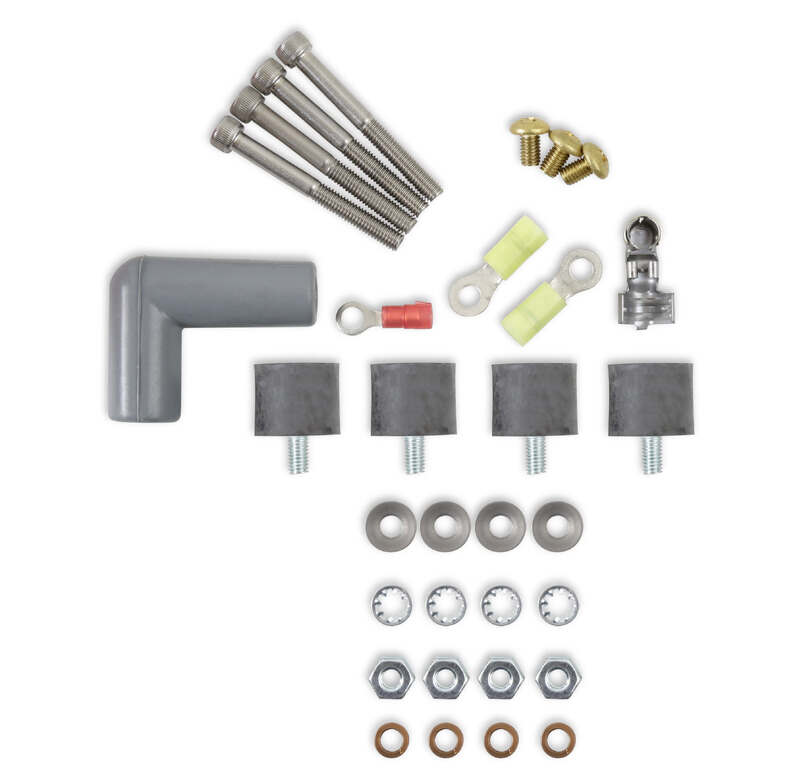

  • Supplied with mounting hardware and rubber shock mounts
  • Built-in Current Sensing when used with MSD Pro 600 Single Channel (8001)
  • MSD Ignition Coil, Hvc-Iii W/Cs, Black Diagram Image
