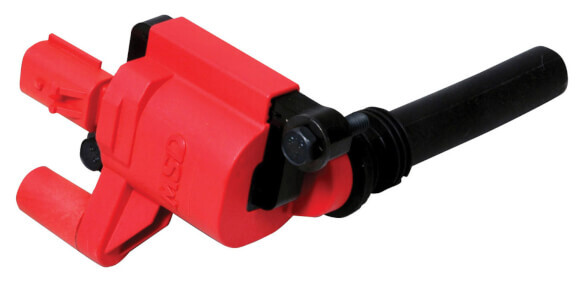

The coil is a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit.

Features:
  • Improved high rpm operation
  • Patented winding design and materials
  • Direct bolt-in to factory connectors
  • Turns Ratio: 63.1
  • Primary Resistance: .6 ohms
  • Secondary Resistance: 5.56K ohms
  • Inductance: 4.2 mH
  • Secondary Current (mA): 72 mA
  • Spark Duration: 1150 mS
  • Energy (mJ): 62 mJ
  • Maximum Voltage: 30,000
