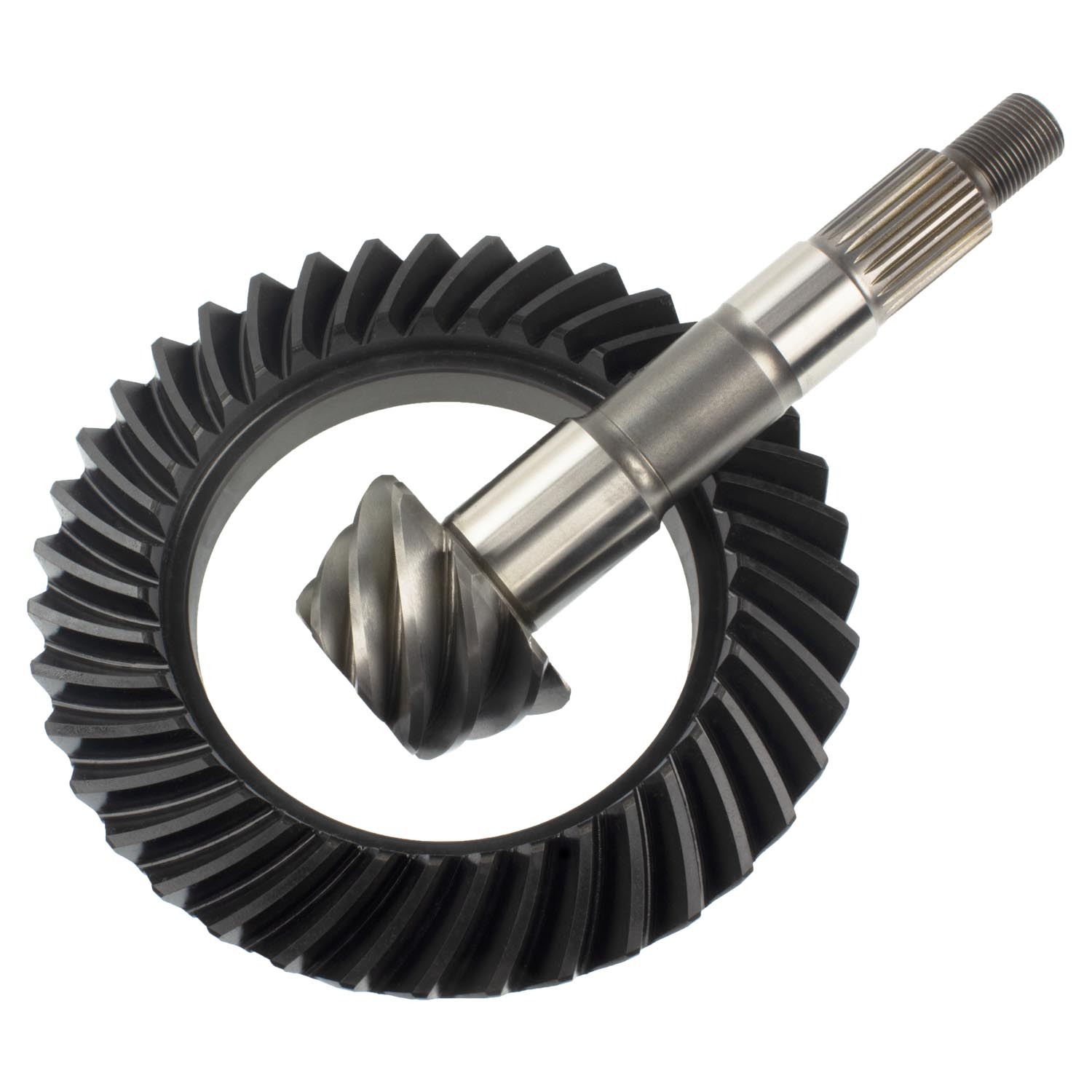

Motive Gear stock performance ring and pinions are excellent replacements for OE. Experienced installers prefer our ring and pinions for easy setup, superior strength, quality, and our vast ratio selection. Motive Gear produces the industry’s widest range of OEM replacement ring and pinions. Engineered to the highest standards, every Motive Gear product goes through rigid quality control processes in our in-house lab. In combination with Motive Gear’s performance and axle divisions: Motive Gear Performance and TEN Factory, there simply isn’t a better value in drivetrain components.

Specifications:
  • Cover Bolt Quantity: Dropout
  • Pinion Gear Tooth Quantity: 8
  • Pinion Shaft Diameter: 1.378 (Inch)
  • Pinion Spline Count: 27
  • Ring & Pinion Gear Ratio: 4.88
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Diameter: 7.8 (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard
  • Ring Gear Tooth Quantity: 39
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion
  • Taxonomy C: Toyota 8.0 V6
  • Taxonomy D: Rear
Fitment: 1987 – 2002 Toyota 4Runner | Application notes:| For Toyota 8"| 4.88 Ratio| Factory 4.88 Housings Will Not Accept Aftermarket Ring and Pinions| | | 1986 – 1995 Toyota Pickup | Application notes:| For Toyota 8"| 4.88 Ratio| Factory 4.88 Housings Will Not Accept Aftermarket Ring and Pinions| | | 1993 – 1998 Toyota T100 | Application notes:| For Toyota 8"| 4.88 Ratio| With E-Locker| Factory 4.88 Housings Will Not Accept Aftermarket Ring and Pinions| | | 1995 – 2002 Toyota Tacoma | Application notes:| For Toyota 8"| 4.88 Ratio| With E-Locker| Factory 4.88 Housings Will Not Accept Aftermarket Ring and Pinions| |
