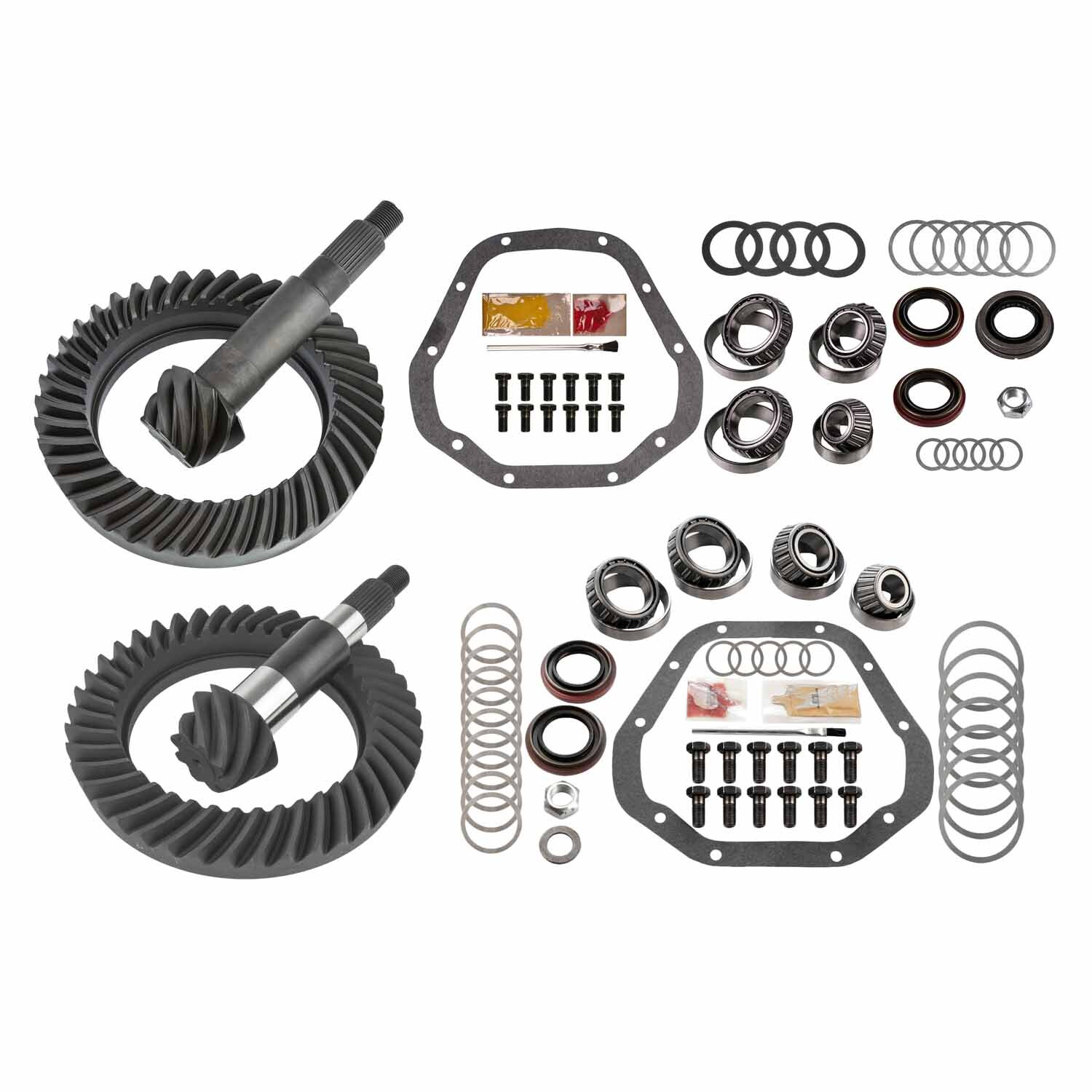

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.

Specifications:
  • Cover Bolt Quantity: 10
  • Differential Carrier Break: 4.10 Ratio and Lower Front, 4.56 Ratio and Higher Rear
  • Pinion Gear Tooth Quantity: 8
  • Pinion Shaft Diameter: 1.626 Front (Inch), 1.75 Rear (Inch)
  • Pinion Spline Count: 29
  • Ring & Pinion Gear Ratio: 5.13
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 9.75 Front (Inch), 10.5 Rear (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard
  • Ring Gear Tooth Quantity: 41
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion Gear Packages
  • Taxonomy C: Dana 60 Standard, Dana 70 U
  • Taxonomy D: Front and Rear
Fitment: 1994 – 2002 Dodge Ram 2500
