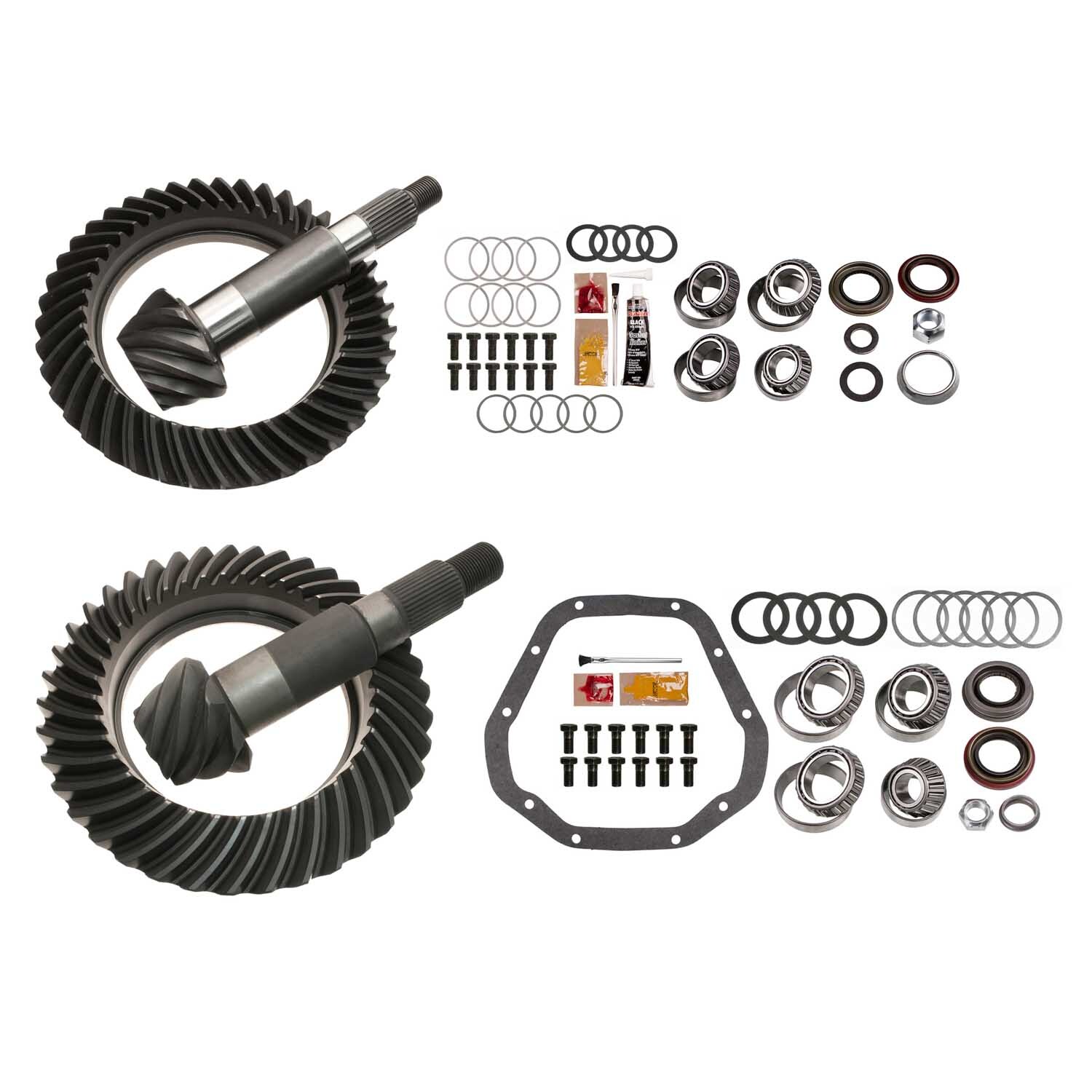

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.

Specifications:
  • Cover Bolt Quantity: 10
  • Differential Carrier Break: 4.10 Ratio and Lower Front, 4.10 Ratio and Higher Rear
  • Pinion Gear Tooth Quantity: 8
  • Pinion Shaft Diameter: 1.626 Front (Inch), 2 Rear (Inch)
  • Pinion Spline Count: 29 Front, 37 Rear
  • Ring & Pinion Gear Ratio: 4.88
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 9.75 Front (Inch), 11.25 Rear (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Reverse Front, Standard Rear
  • Ring Gear Tooth Quantity: 39
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion Gear Packages
  • Taxonomy C: Dana 60 Reverse, Dana 80
  • Taxonomy D: Front and Rear
Fitment: 1999 – 2016 Ford F-350 Super Duty | 1999 – 2004 Ford F-450 Super Duty
