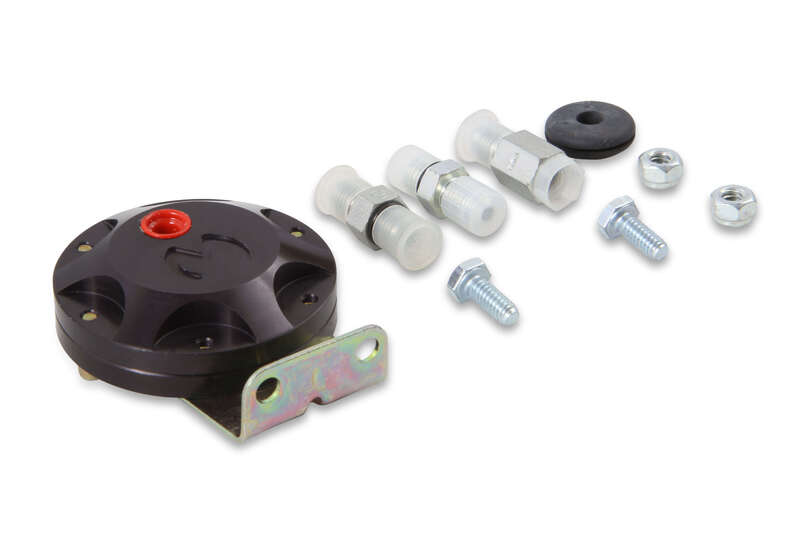

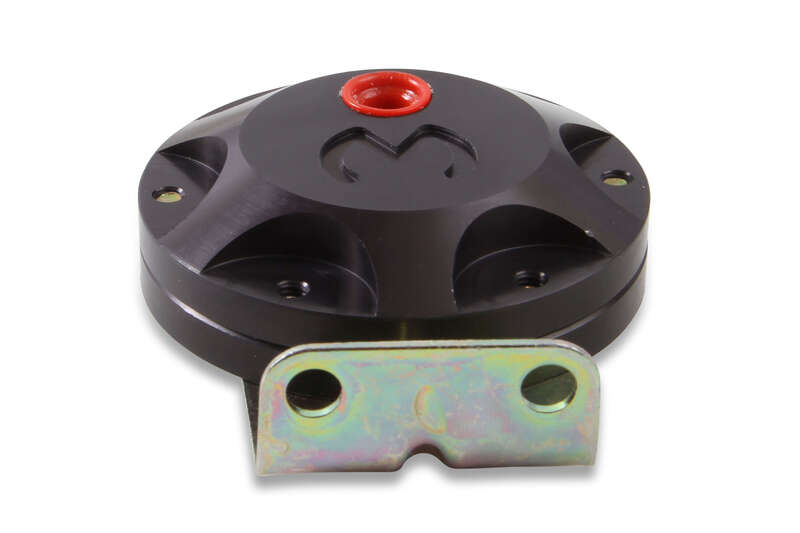

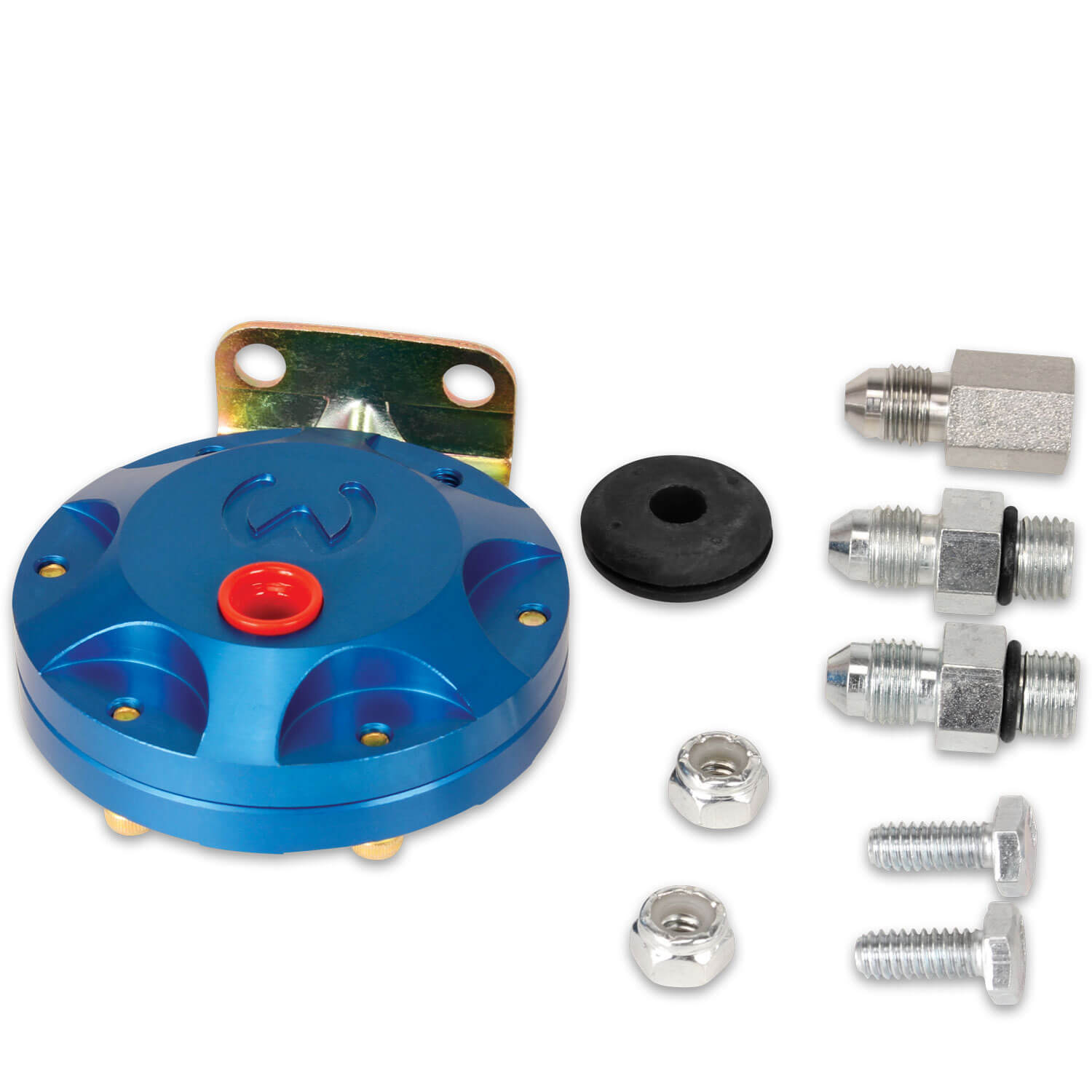

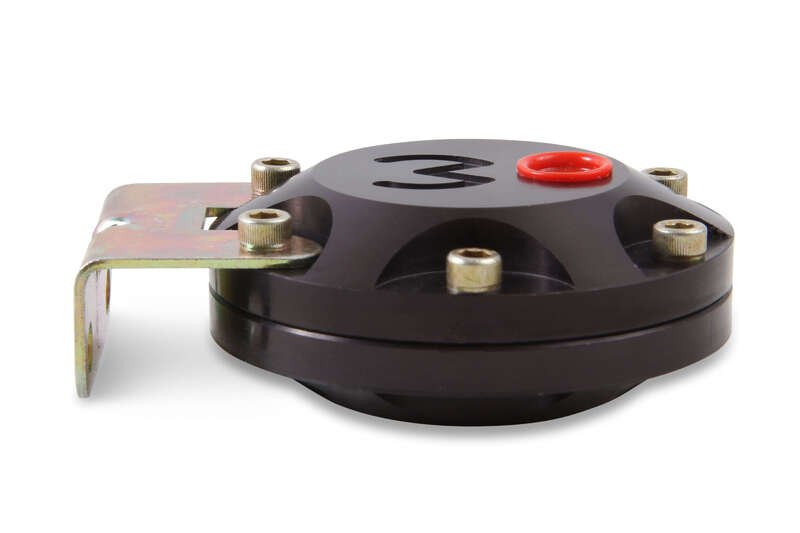

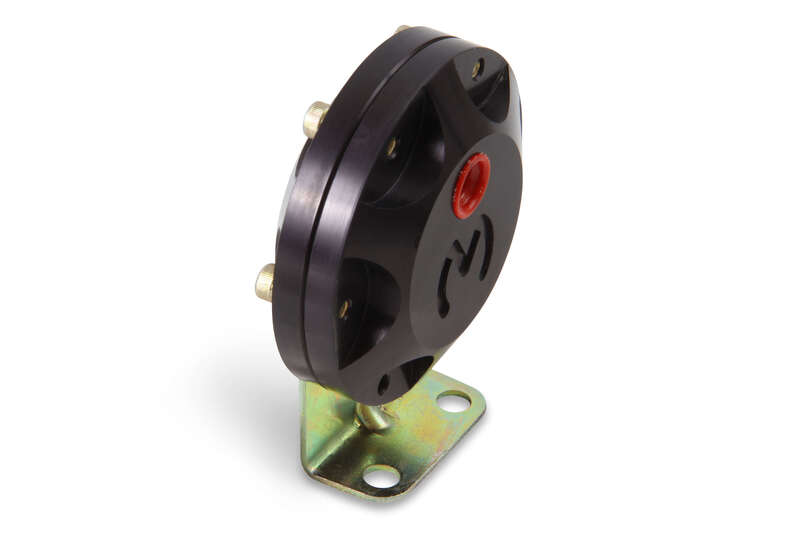

Mechanical pressure gauges offer maximum accuracy but can be a safety hazard. Whether you want to monitor fuel, oil, or even coolant pressure, you can do it safely without the risk of spraying fuel, hot oil or coolant all over your interior. Easy to install, just hook a pressure line from your engine compartment to one side of the CNC machined Mallory Pressure Isolator and fill the line from your gauge to the other side of the isolator with a 50-50 mix of antifreeze and water. Your gauge reads the pressure instantly and accurately, but safely. The isolator kit includes the mounting bracket, #4 AN fittings and is compatible with gasoline, alcohol/methanol, oil or even coolant. The maximum recommended pressure is 80 PSI.

Features:
  • Maximum recommended pressure 80 psi

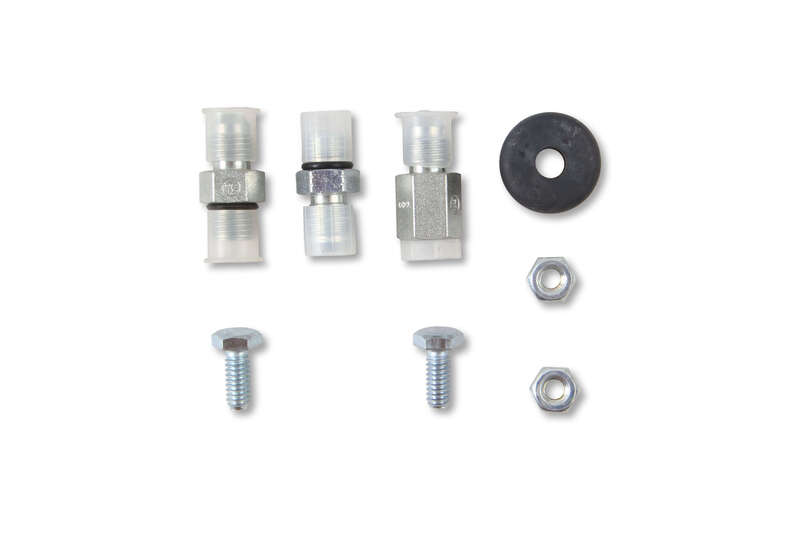

  • Mounting bracket included and #4 AN fittings
  • Will work with fuel, oil, coolant pressure
