Ultra-Case Powerglide Transmissions: Quite possibly the BEST powerglide transmission you can get your hands on! With multiple combinations available we can build you a transmission that can handle any amount of power up to 3000hp! These transmissions utilize the latest in technology and quality materials. All Ultra-Case Transmissions come SFI 4.1 certified so no additional shields are needed. Couple these transmissions with your choice of an Ultra-Bell SFI 30.1 bellhousing that will allow you to mount these great Powerglides behind Chevrolet, Ford, and Mopar applications (Ultra-Bell Sold Separately). Basic Features Include: Turbo Spline Input Shaft, Deep Pan, Forward Pattern Pro-Tree Transbrake, Universal Shifter Arm, Billet High Gear Hub, Race Modified Front Pump, Fully Dyna Tested, and ready for Ultra-Bell Installation.

Description

  • 1500hp rated in most applications
  • Forward Pattern Pro-Tree Transbrake Valvebody
  • SFI Certified Ultra-Case Transmission Housing
  • 1.80 Straight Cut Gearset with 4340 Chromoly Output Shaft – Standard Length
  • Billet Dual O-Ring Servo Piston
  • Billet Servo Cover
  • Roller Thurst Between Pump and Drum
  • Performance Clutches and Steels
  • Kevlar Low Gear Band
  • Hardened (Grade 8) Band Adjuster
  • 300M Turbo Spline Input Shaft
  • 300M Stator Support Shaft
  • Cast Aluminum Deep Pan
  • Billet Aluminum Roller Rear Support
  • Prepped for Ultra-Bell (Ultra-Bell sold separate)
  • Roller Bearing Long Length Tailhousing (recommend using a hardened yoke)
  • Universal Shifter Arm – Can Be Installed in Up or Down Position
  • No speedometer provision
  • Vent is tapped for 1/8” NPT
  • Fully Dyno Tested

More From This Category

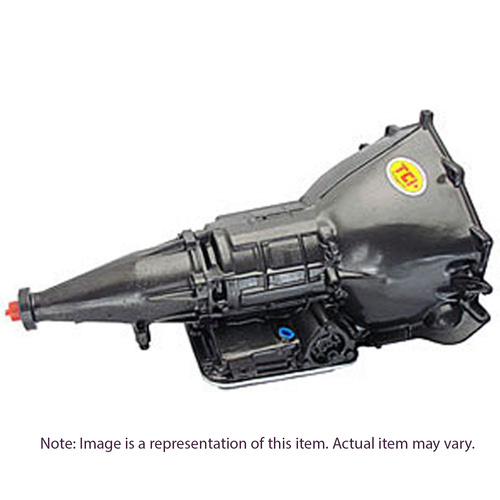

TCI Automatic Transmission Street, Holden, Chev GM Powerglide 450HP Plus, Reverse Shift Pattern Manual Valve Body Trans Brake,Each

TCI Automatic Transmission Street, Holden, Chev GM Powerglide 450HP Plus, Reverse Shift Pattern Manual Valve Body Trans Brake,Each

$4,244.63

View

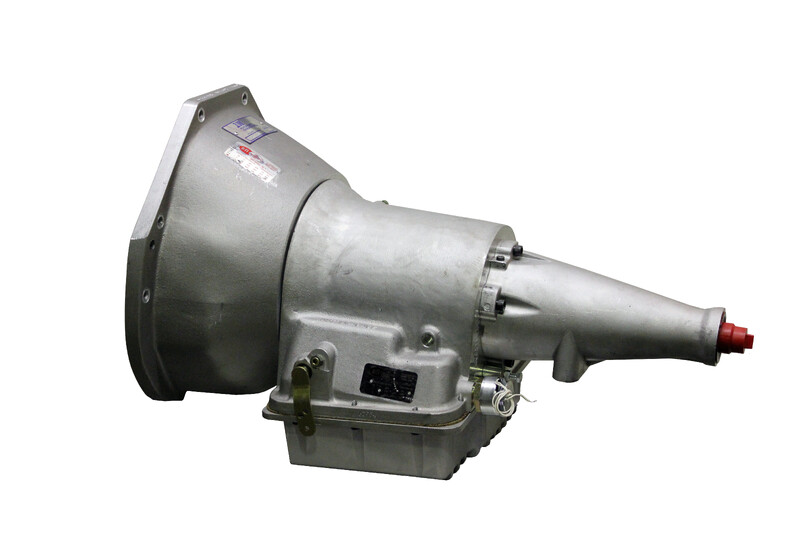

JW Transmissions PG 1.80 S.C. Gear Set MEGA HP Short Length in.Ultra-Case in.

JW Transmissions PG 1.80 S.C. Gear Set MEGA HP Short Length in.Ultra-Case in.

$12,453.08

View

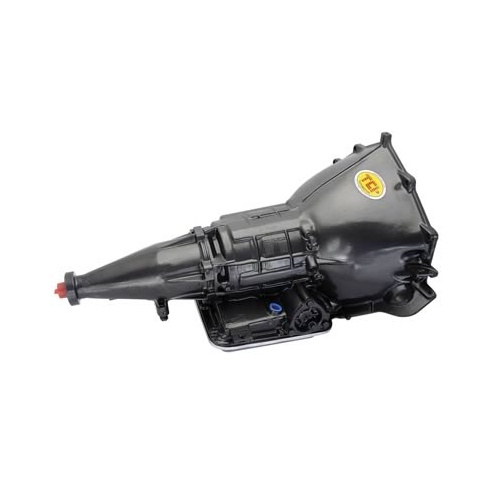

TCI P/G D/BRNG SS 10CL 749601
