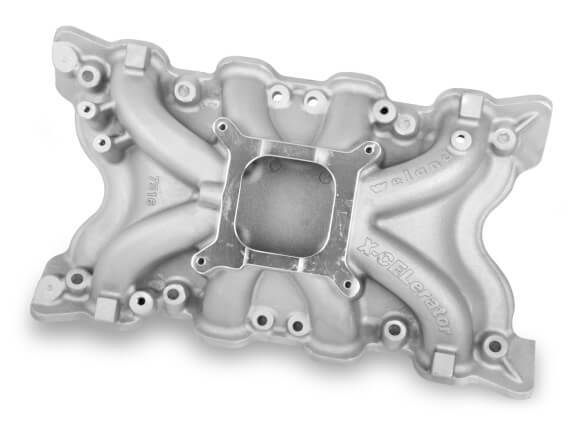

The WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with ahigher compression ratio, 280° or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, ishighly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4Vapplications where increased torque and power is required in the mid and high rpm ranges.

Features:

  • Single Plane Design
  • Square Carburetor Mounting Flange
  • Power band: 1500-7000 RPM
  • Height: Front 4.28", Rear 5.36"
  • Port Size: 1.95” height 1.34" width
  • No EGR provision
  • New updated casting design
