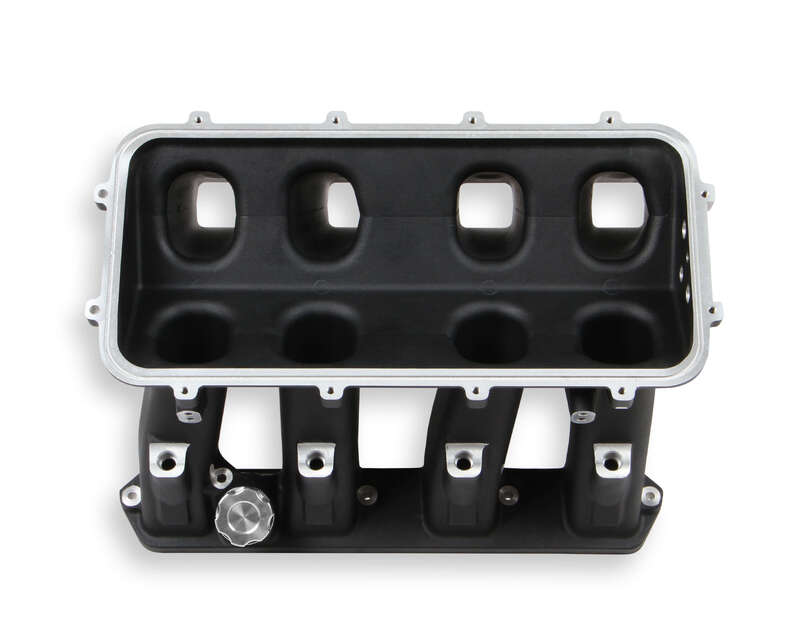

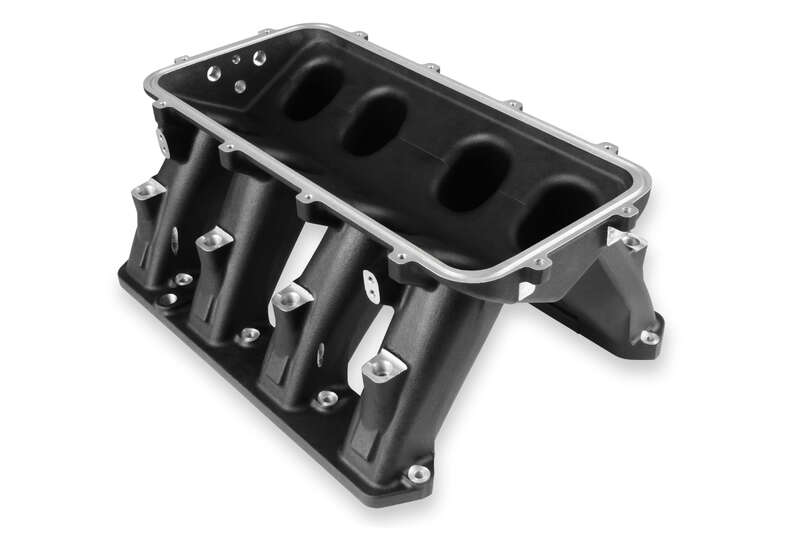

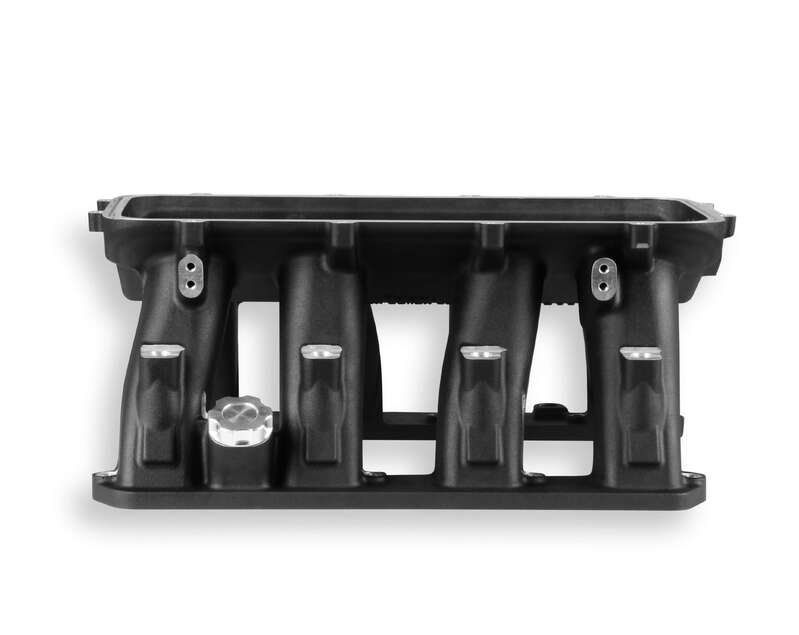

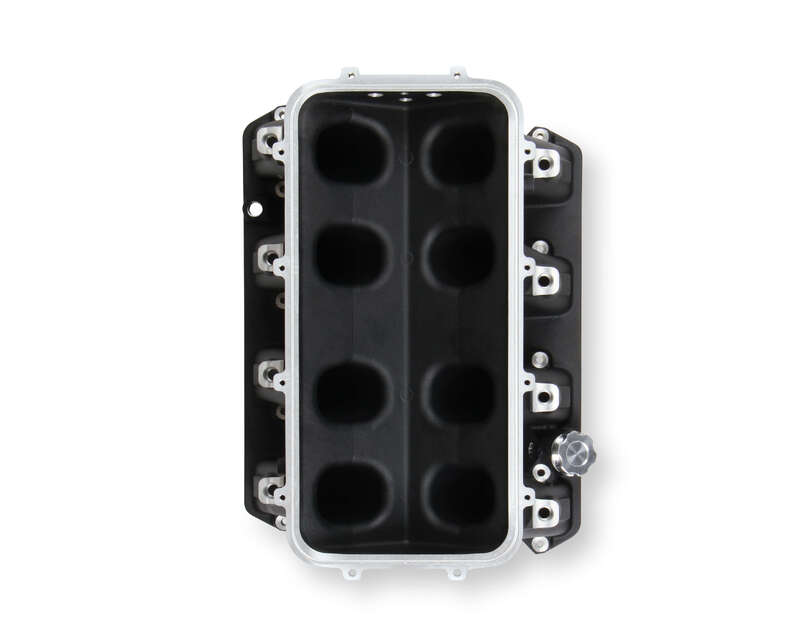

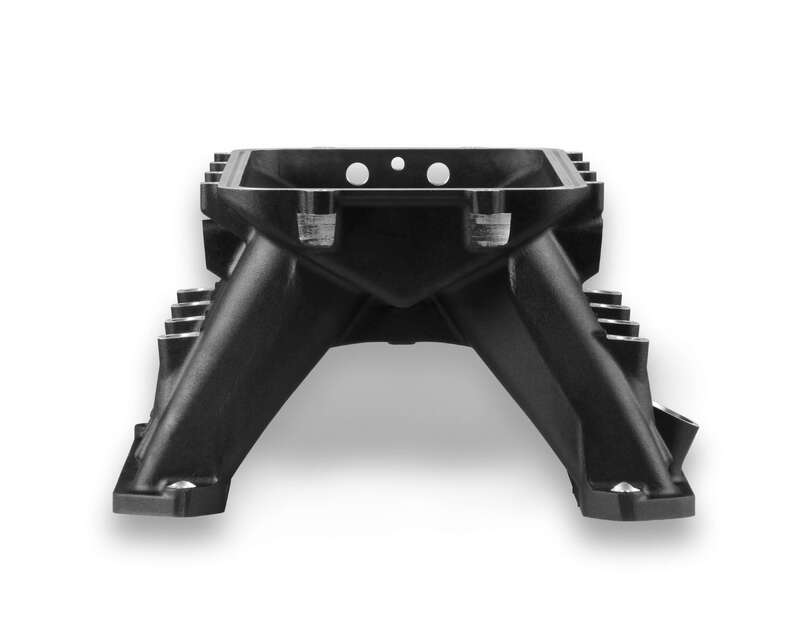

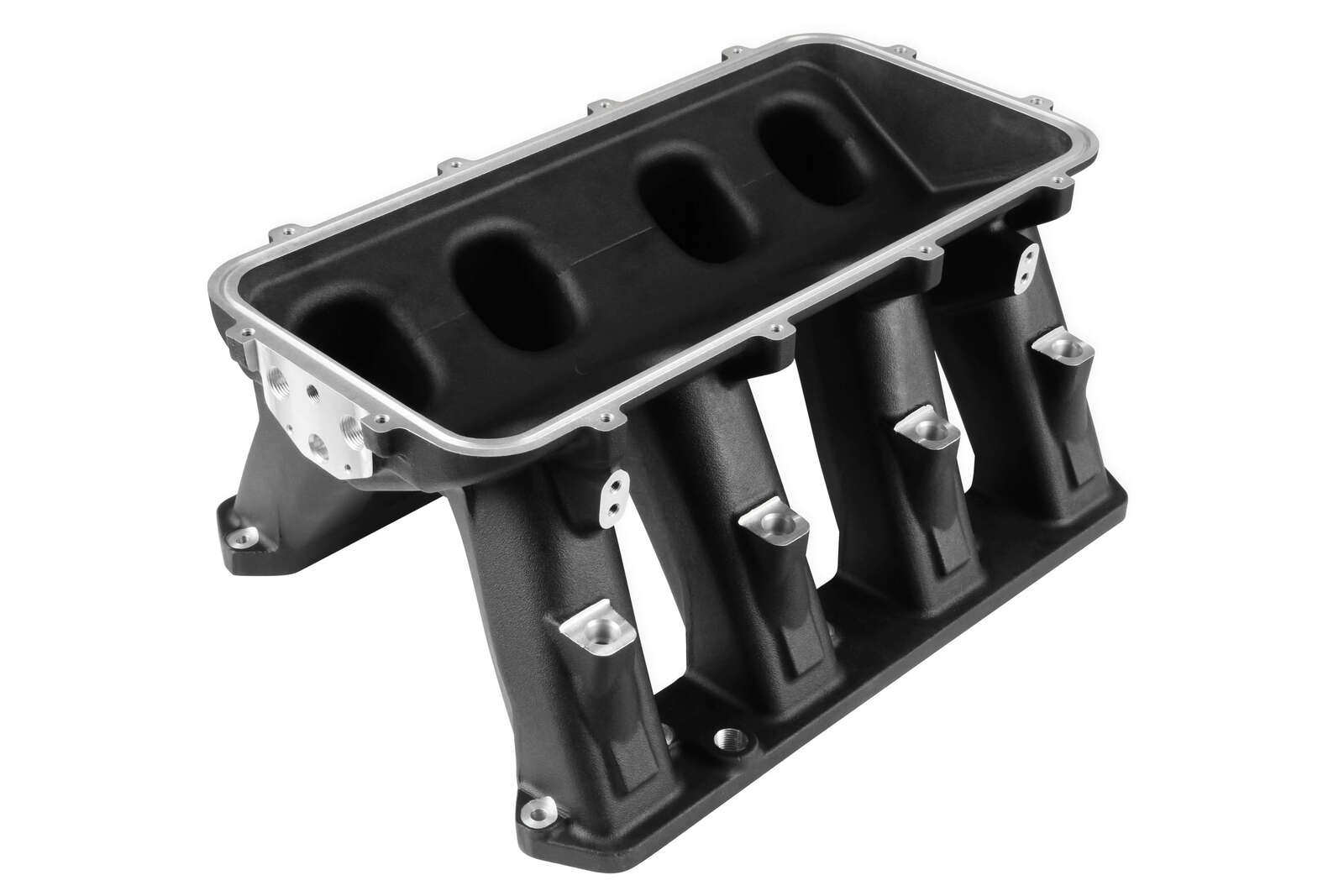

Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L & 2011-up 6.4L engines.

The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated & forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations.

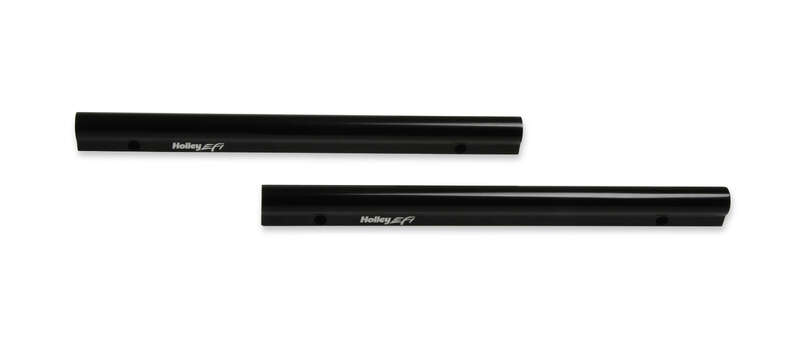

The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM.

Features:
  • Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
  • Fits Gen III Hemi Engines w/ Large Intake Ports (1.70” Height x 1.88” Wide) – fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
  • Cast Aluminum Construction w/ Natural Satin or Black Finish
  • Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations
  • Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
  • Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
  • O-Ring Seal to Head – Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
  • Billet Oil Fill Cap – Attractive Low Profile Design
  • Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings
  • Overall Height: 11.59”
  • Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
  • Cast-In Pads for Adding Nitrous Nozzles
  • Manifold Base – Available Separately for Custom Induction Systems
