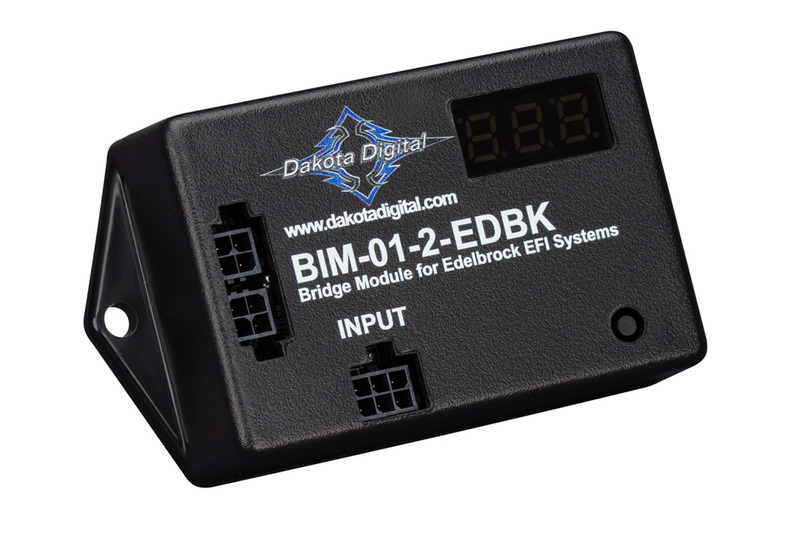

The BIM-01-2-EDBK is designed to read the engine information from the Pro-Flo 4 EFI kits. The BIM-01-2-EDBK module is connected to the Edelbrock device through the dedicated DB9 CAN connection plug on the main harness.

The BIM-01-2-EDBK will collect and output the following information to Dakota Digital Instrument Systems:
  • Tachometer
  • Water Temperature
  • Intake Air Temperature
  • Fuel Pressure
  • A/F Ratio
  • MAP
  • Boost (when applicable)
*Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors.

**Compatible Dakota Digital instrument system: VHX, HDX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
