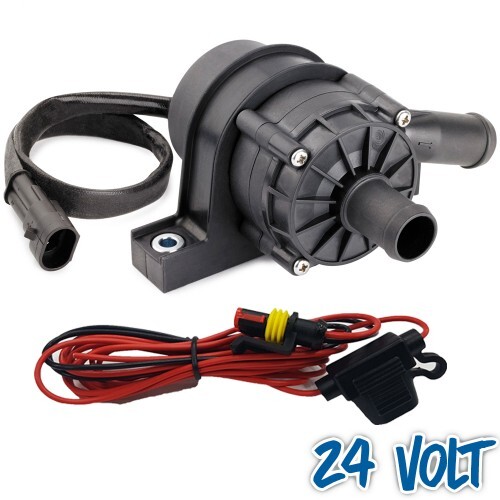

EBP40 - Electric Booster Pump Kit (24V) (Part #9041)

The EBP®40 is a brushless 24 volt, high flow (37 litres / 9.8 gallons per minute), magnetically driven water pump. The motor has no brushes to wear out, and the pump is magnetically driven by the motor, which eliminates the need for shaft sealing.

Applications include car heater and LPG systems, solar pump applications, water-cooled motorcycles, go-kart engines, turbo air/water intercoolers, and household irrigation. This pump is UN ECE Regulation 10 compliant for improved electromagnetic compatibility (EMC) in automotive applications (Approval No: E24*10R06/02*4620*00).

KIT CONTENTS

Description Units
Electric Booster Pump (EBP®40) 1
EBP®23, 25, 40 Wiring Loom (AMP Plug) 1
Installation Instructions 1

SPECIFICATIONS

Operating Voltage 12V to 28V DC
Maximum Current 2.5 Amps
Maximum Flowrate 37 l/min (9.8 gal/min)
Maximum Head Pressure 0.85 Bar (12.32 PSI)
Maximum Head Height 8.5m (27ft 10.65in)
Fluid Temperatures -40°C to 120°C (-40°F to 248°F)
Pump Weight 570 grams (1.25 lbs)
Body Material Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure 252 kPa (38 PSI)
Inlet & Outlet Push on Barb
Hose Fitment 19mm (3/4")
Hose Fitment with Step Adapter 12mm to 16mm (1/2" to 5/8")
