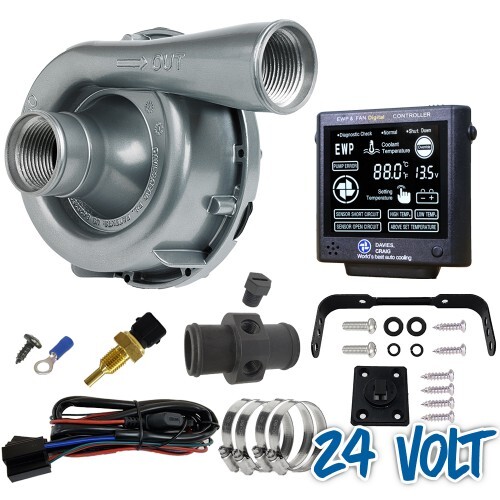

EWP®150 Combo Remote Electric Water Pump & Controller (24V) (Part #8971)
The EWP®150 Alloy 24V Electric Water Pump, combined with the LCD EWP®/Fan Digital Controller, delivers superior engine cooling control for high-performance, turbocharged, supercharged, and modified engines. Designed for remote mounting in the engine bay, this system is ideal for engines generating excessive heat and is widely used in intercooler applications.
This rugged, high-flow pump eliminates parasitic power losses of mechanical water pumps, freeing up to 10kW (13hp) and enhancing overall engine performance.
COMBO CONTENTS |
|
Part Description | Units |
EWP®150 Alloy 24 Volt | 1 |
EWP®/Fan Digital Controller & Mounting Plate + Bracket | 1 |
Sensor Thermal - Coolant Temp - 1/4" NPT Thread | 1 |
Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) | 1 |
1/4" NPT Nylon Bung | 1 |
Wiring Harness | 1 |
Hose Clamps | 4 |
Screw - Self Tap 8x3/8 BZ | 1 |
Blue 6mm Ring Terminal | 1 |
TECHNICAL SPECIFICATIONS |
|
Operating Voltage | 20V DC to 27V DC |
Maximum Current | 5.5A @ 24V |
Flow Rate (Max) | 162 L/min (42.8 US gal/min) @ 24V DC |
Operating Temp. | -40°C to 120°C (-40°F to 248°F) |
Pump Weight | 1170 grams (2.6 lbs) |
Pump Material | Aluminum (Powder Coated) |
Burst Pressure | 500 kPa (72.5 PSI) |
Seal | Ceramic Face Seal |
Fits Hose Sizes | 35mm to 51mm (1?" to 2") |
Push-On Fitting Size |
38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511) |
Internal Fittings | Inlet & Outlet: -16AN ORB |
EWP & Controller Installation Demonstration
