EWP®150 Combo Remote Electric Water Pump & Controller (12V) (Part #8970)

The EWP®150 Alloy Electric Water Pump, combined with the LCD EWP®/Fan Digital Controller, delivers superior engine cooling control for high-horsepower, turbocharged, supercharged, and modified engines. This unit is designed for remote mounting in the engine bay and is extensively used in intercooler applications.

This rugged, high-flow electric water pump eliminates the parasitic power losses of mechanical water pumps, freeing up to 10kW (13hp) and enhancing overall engine performance.

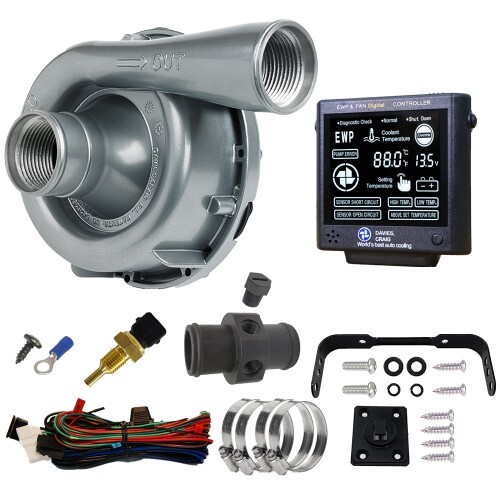

COMBO CONTENTS

Part Description Units
EWP®150 Alloy 1
EWP®/Fan Digital Controller & Mounting Plate + Bracket 1
Sensor Thermal - Coolant Temp - 1/4" NPT Thread 1
Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
Wiring Harness 1
Hose Clamps 4
Screw - Self Tap 8x3/8 BZ 1
Blue 6mm Ring Terminal 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 162 L/min (42.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
