EWP®115 Alloy Combo Remote Electric Water Pump & Controller (12V) (Part #8950)

The EWP®115 Alloy 12V Electric Water Pump offers total control over engine cooling with the included LCD EWP®/Fan Digital Controller. This system is suitable for small, medium, large, high-performance, and 4WD vehicles, improving engine cooling control and capacity while enhancing power, torque, and fuel economy.

Mechanical belt-driven water pumps sap engine power. By replacing or complementing them with the EWP®115, which is hardwired into your electrical system, you can free up to an additional 10kW (13hp). The pump is also extensively used in intercooler applications.

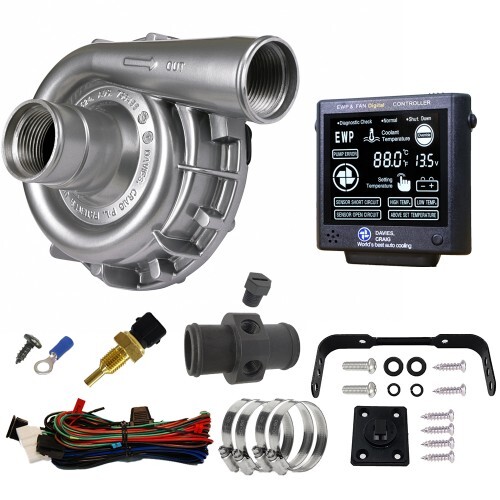

COMBO CONTENTS

Part Description Units
EWP®115 Alloy 1
EWP®/Fan Digital Controller & Mounting Plate + Bracket 1
Sensor Thermal - Coolant Temp - 1/4" NPT Thread 1
Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
Wiring Harness 1
Hose Clamps 4
Screw - Self Tap 8x3/8 BZ 1
Blue 6mm Ring Terminal 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 139 L/min (36.7 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 920 grams (2.03 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Inlet & Outlet 38mm Push-on Barb (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

EWP & Controller Installation Demonstration
