EWP®80 Combo Remote Electric Water Pump & Controller (12V) (Part #8907)

The EWP®80 Combo includes a remote Electric Water Pump and an LCD EWP®/Fan Digital Controller. This simple, do-it-yourself installation is designed to complement or replace your existing belt-driven mechanical water pump and engine thermostat, and control your Thermatic® Fan.

The pump is suitable for most vehicle makes and models with naturally aspirated or turbocharged engines up to two litres. The pump is constructed from lightweight, anti-corrosive, heat-resistant glass-filled nylon, incorporating a ceramic-faced seal for durability.

By removing parasitic power losses of a belt-driven pump, the EWP®80 enhances engine cooling, improves fuel economy, and delivers up to 10kW (13hp) of extra power and increased torque. It is widely used in intercooler applications.

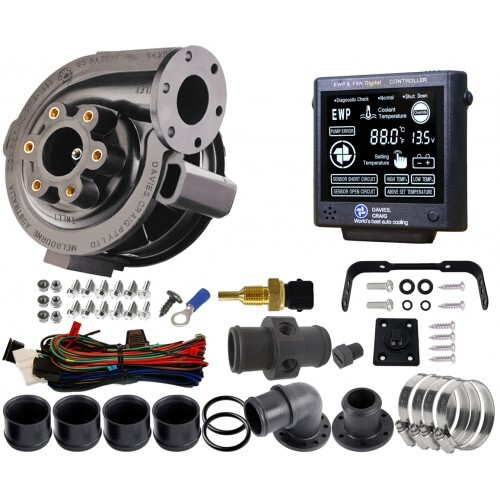

COMBO CONTENTS

Part Description Units
EWP®80 - Nylon 12V Assembly 1
Nylon Flange Adapter: 35mm Straight 1
Nylon Flange Adapter: 35mm 90° Elbow 1
Adapter Rubber Sleeve 3mm (1/8") 4
Hose Clamps 4
EWP Adapter O-Ring 2
Wiring Harness - EWP & Fan Controller 1
EWP®/Fan Digital Controller 1
Adaptor - Nylon - Inline, 35mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
U-Bracket for Controller 1
Mounting Plate for Controller 1
Self-Tapping Screw 1
Blue 6mm Ring Terminal 1
Flanged Hex Set Screws 12
Thermal Sensor Coolant Temp - 1/4" NPT Thread 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC
Maximum Current 7.5A @ 13V
Flow Rate (Max) 90 L/min (23.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 900 grams (2.0 lbs)
Body Material Glass-filled Nylon

EWP & Controller Installation Demonstration
