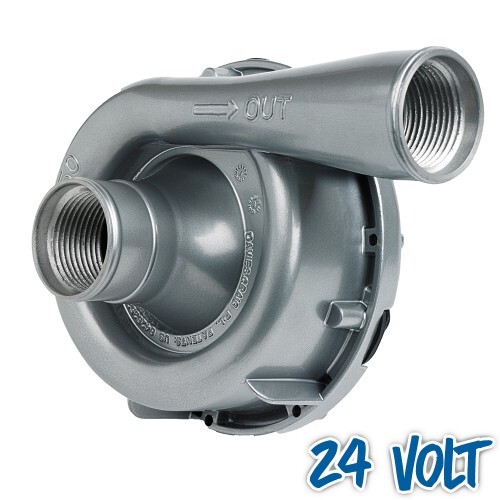

EWP®150 Remote Electric Water Pump (24V) (Part #8161)

The EWP®150 Alloy Electric Water Pump is an efficient, remote-mounted solution for engines requiring high-performance cooling. It is ideal for turbocharged, supercharged, and high-horsepower engines generating excessive heat, as well as intercooler applications.

This rugged, high-flow pump eliminates the parasitic power losses of mechanical water pumps, providing up to 10kW (13hp) of additional power and improving overall engine performance.

CONTENTS

Part Description Units
EWP®150 Pump (24V) 1

TECHNICAL SPECIFICATIONS

Operating Voltage 20V DC to 27V DC
Maximum Current 5.5A @ 24V
Flow Rate (Max) 162 L/min (42.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
