EWP®150 Kit Remote Electric Water Pump (12V) (Part #8060)

The EWP®150 Alloy Electric Water Pump is a high-flow, compact solution designed to handle engines with excessive heat generation. Suitable for turbocharged, supercharged, and high-performance engines, this unit is ideal for remote mounting in the engine bay. It’s also widely used in intercooler applications.

This rugged alloy pump eliminates parasitic power losses associated with mechanical water pumps, providing up to 10kW (13hp) of additional power, while improving coolant temperature control.

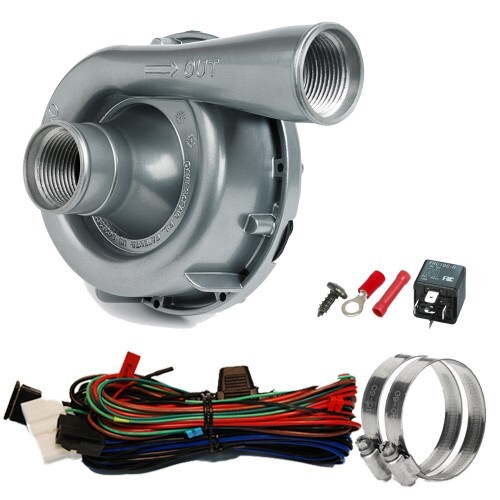

KIT CONTENTS

Part Description Units
EWP®150 Alloy 1
EWP® Basic Wiring Harness 1
Hose Clamps 2
Red Wire Joiner 1
Red 6mm Ring Terminal 1
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Screw - Self Tap 8x3/8 BZ 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 162 L/min (42.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
