Electric Water Pump (EWP®) & Fan Digital Controller Kit (Part #8002)

The Digital Controller provides optimal control for Davies Craig 12/24 Volt Electric Water Pumps and Electric Fans. It is compatible with EWP®80, EWP®115, EWP®130, EWP®150, Thermatic® Electric Fans, and billet-style Electric Water Pumps.

This controller features an improved design with a slimmer appearance and a seven-pin plug tucked away at the base. It offers two mounting options:

  1. Bracket
  2. Nylon Plate

Functions:

  1. Manages the EWP® by varying the pump speed based on coolant temperature.
  2. Controls the operation of your electric engine fan.

The controller allows temperature settings between 40°C (104°F) and 110°C (230°F), matching your engine’s thermostat. It also supports EWP® and fan run-on after ignition shutdown for either 3 minutes or until -10°C (-14°F) below the set temperature to prevent heat soak.

Sensor Wire Length: 250cm, increased to 380cm (October 2020)

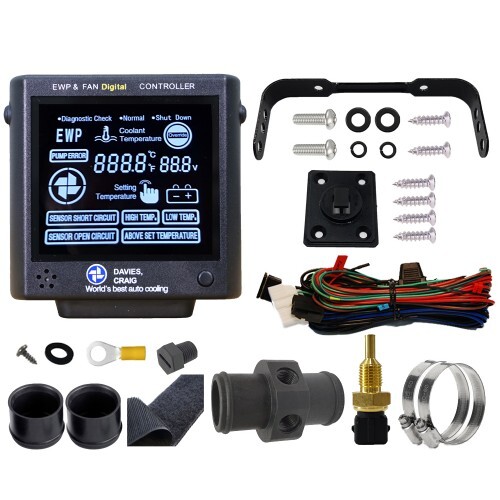

KIT CONTENTS

Item Description Units
1 EWP® Digital Controller Assembly 1
2 Wiring Harness (includes 10AMP Fuse) 1
3 Temp Sensor 1/4 NPT 1
4 In-Line Adaptor (35mm Hose Fittings) 1
5 Hose Clamps 2
6 Ring Terminal 1
7 Rubber Sleeves 3mm (For larger hoses, use Part #18511, sold separately) 2
8 Mounting Options: Nylon Plate, Bracket 3
9 Instructions 1
10 Sensor Instructions 1

TECHNICAL SPECIFICATIONS

Voltage Range 12V DC to 29V DC
Display LCD Size 64.6mm x 55.6mm
Maximum Current 12 Amps
Targeted (Set) Temperatures 40°C (104°F) to 110°C (230°F)
Fan Cut-In Temp 3°C (5.4°F) above the targeted temperature
Overrun/Shut Down -10°C below target temperature or 3 minutes
