Digital Gauge Thermatic Fan & EWP^® Switch Kit (Part #0500)

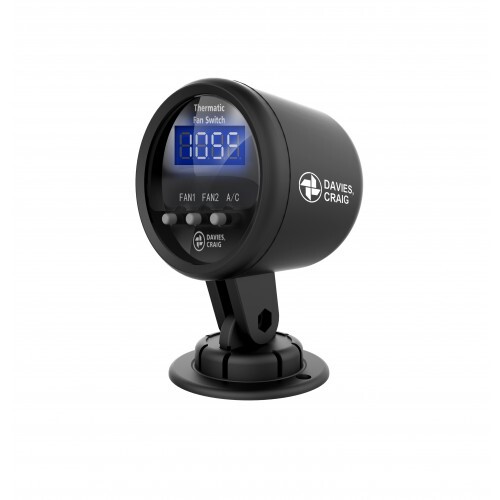

A bright, attractive, compact high visibility 52mm round gauge with LED digital display for mounting in the driver’s compartment!

Automatically activates single or twin fans or a fan and Electric Water Pump at your set/targeted temperature when extra cooling is required. It can also detect transmission fluid temperature.

It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section, or alternatively, the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part #0409).

Sensor Wire Length: 380cm

24 Volt Application: Kit sold in 12-volt configuration; for 24-volt application, you will need to purchase 2 x 24-volt relays.

AIR TEMPERATURE APPLICATION:

The kit is set up for air temperature sensor application. It senses air temperature as it passes through the radiator and has an adjustable temperature range of 5°C to 110°C (41°F to 230°F). The sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, with no need to cut hoses. Alternatively, it can be placed directly into the coolant system.

WATER/COOLANT APPLICATION: For coolant applications, use the following:

• #0465: For OE style 1/4" NPT port install
• #0409: For radiator hose install

The Digital Gauge Thermatic^® Fan/EWP^® Switch must be mounted inside the vehicle’s driving compartment for easy reading and quick adjustment. Convenient push-button control allows you to accurately set/target temperature for automatic activation of the Thermatic^® Fan #1 and Fan #2 at independent temperatures when extra cooling is required.
