Temperature Sensor Inline Adapter Kit (35mm) (Part #0409)

This economical adapter kit allows for the easy installation of a temperature sensor directly into your engine’s top radiator hose. The Inline Sensor Adapter is designed to fit hoses with 35mm ends and includes rubber sleeves to fit hoses ranging from 32mm to 40mm in diameter.

The kit supports sensors with 5mm or 6mm outside diameters, as well as temperature gauge senders with a 1/4" NPT thread. It ensures a watertight, effective probe installation and comes complete with all components for a straightforward installation.

Note: Compatible with Thermatic® Switches Part #0401, #0404, #0444, and #0455.

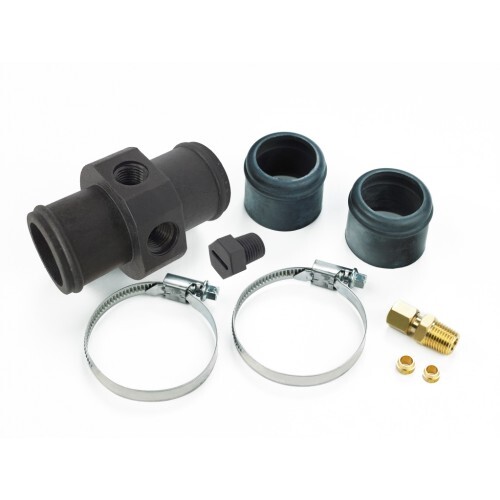

KIT CONTENTS

Description Quantity
Inline Adapter 35mm (2 x 1/4" NPT Holes) & Bung 1
EWP 3mm Sleeve Adaptor 2
Olive for 5mm Sensor 1
Olive for 6mm Sensor 1
Compression Fitting for 6.35mm Sensor 1
Hose Clamps 2
Installation Instructions 1

Specifications:

  • Supports sensors with 5mm or 6mm OD
  • Supports gauge senders with 1/4" NPT thread
  • Compatible hose sizes: 32mm to 40mm
