Thermatic® Fan Switch (Mechanical) plus Relay (Suit Air Con) (Part #0404)

The Mechanical Thermatic® Fan Switch with Relay (12V & 24V) is designed for use with Davies Craig Thermatic® Fans and Electric Water Pumps (EWP®). This switch senses coolant temperature after it exits the engine block and adjusts fan operation accordingly. It is adjustable from 40°C to 100°C (104°F to 212°F).

The relay kit enables fan operation thermally and in conjunction with air conditioning systems. It includes everything required for easy installation and effective performance.

24 Volt Application: Kit is sold in a 12V configuration. For 24V applications, purchase one 24V relay for each electric fan (Part #10534).

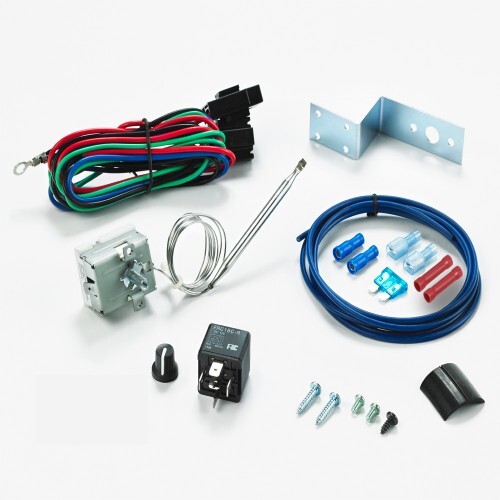

KIT CONTENTS

Description Units
Thermal Switch & Accessories 1
Relay - 12V 40 Amp 5 Pin 1
Fuse Wedge - 15 AMP 1
Rubber Seal (Suits 1mm Capillary) 1
Thermal Switch Knob 1
Red Wire Joiner 2
Installation Instructions 1

SPECIFICATIONS

Temperature Range 40°C to 100°C (104°F to 212°F)
Lead Length 100cm
Sensor Probe Size Suits 6mm Olive

Features & Benefits:

  • Adjustable temperature range for precise fan control
  • Includes relay for thermal and air conditioning fan operation
  • Compatible with 12V and 24V systems (additional relays required for 24V applications)
  • Easy, do-it-yourself installation
