Thermatic® Electric Fan Switch Combo (12V & 24V) (Part #0400)

This value pack combines Part Numbers #0401 and #0409, providing a convenient and economical solution for controlling Thermatic® Fans and Electric Water Pumps (EWP®). The mechanical switch senses coolant temperature as it exits the engine block and adjusts fan operation accordingly.

The switch is adjustable from 40°C to 100°C (104°F to 212°F) and installs directly into the top radiator hose using the included Inline Sensor Adaptor. The kit includes all necessary components for a watertight, effective installation.

Note: For EWP control, use Digital Controller Part #8002 for variable speed management.

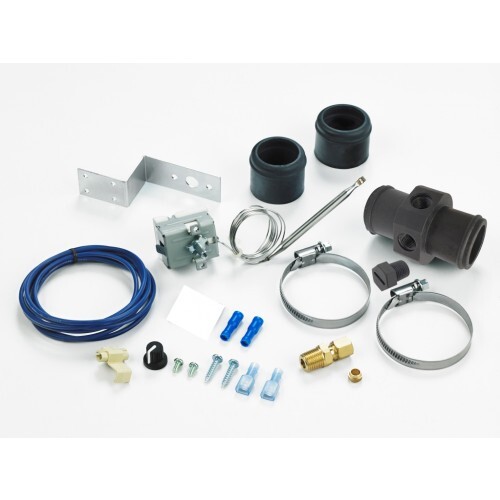

KIT CONTENTS

Description Units
Thermal Switch & Accessories 1
3M White Scotch Lock 1
Knob for Switch 1
Adaptor Rubber Sleeve (3mm) 2
Brass Olive (6mm) 1
Compression Fitting 1/4" 1
Hose Clamps 2
Inline Adaptor (5/16") 1
Installation Instructions 1

Specifications:

  • Temperature Range: 40°C to 100°C (104°F to 212°F)
  • Sensor Wire Length: 110cm
  • Compatible with 12V and 24V systems (24V relays required for 24V applications)
