9" Thermatic® Electric Fan (12 VOLT) (PART #0160)

All Davies Craig Thermatic® Fans are packaged with fan assembly (motor, fan blade, shroud, and mounting feet) and are available with a brushed or long-life brushless motor.

Thermatic® Electric Fans are suitable for use as:

  • Radiator cooling fans
  • Air conditioner condenser fans
  • Transmission and engine oil cooler fans

It provides constant or variable airflow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power, and fully reversible blades and polarity for bi-directional airflow.

These fan assemblies are set up for upstream/pusher applications from the factory.

For downstream applications, the fan blade must be removed and turned over, and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and fastening the unit to the radiator.

SPECIFICATIONS

Airflow 591 CFM (ft³/min)
Maximum Current

6.5A (12 Volt)

3.25A (24 Volt)

Weight 0.93 kg (2 lb)

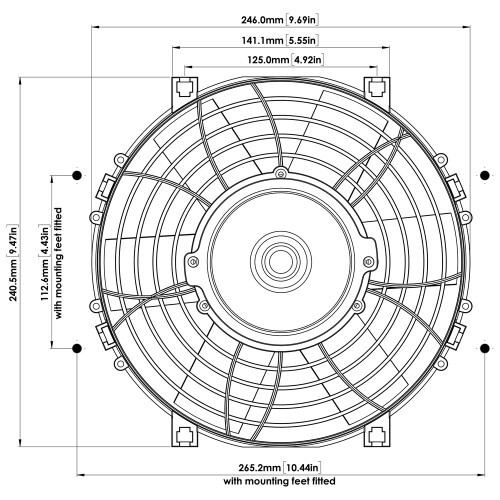

Height 242 mm
Width 250 mm

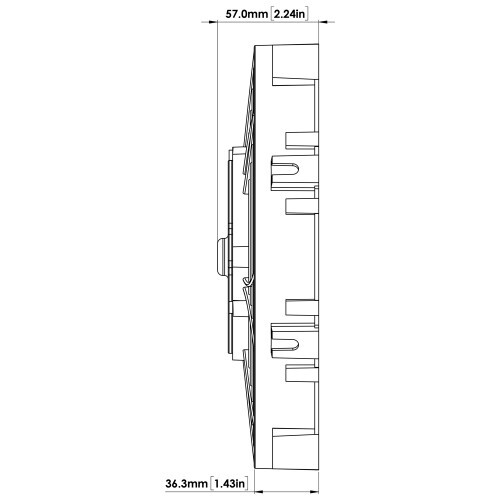

Depth 55 mm



COMPONENTS

Description Units
9" Thermatic® Electric Fan (12 VOLT) 1
Mounting Feet 4
