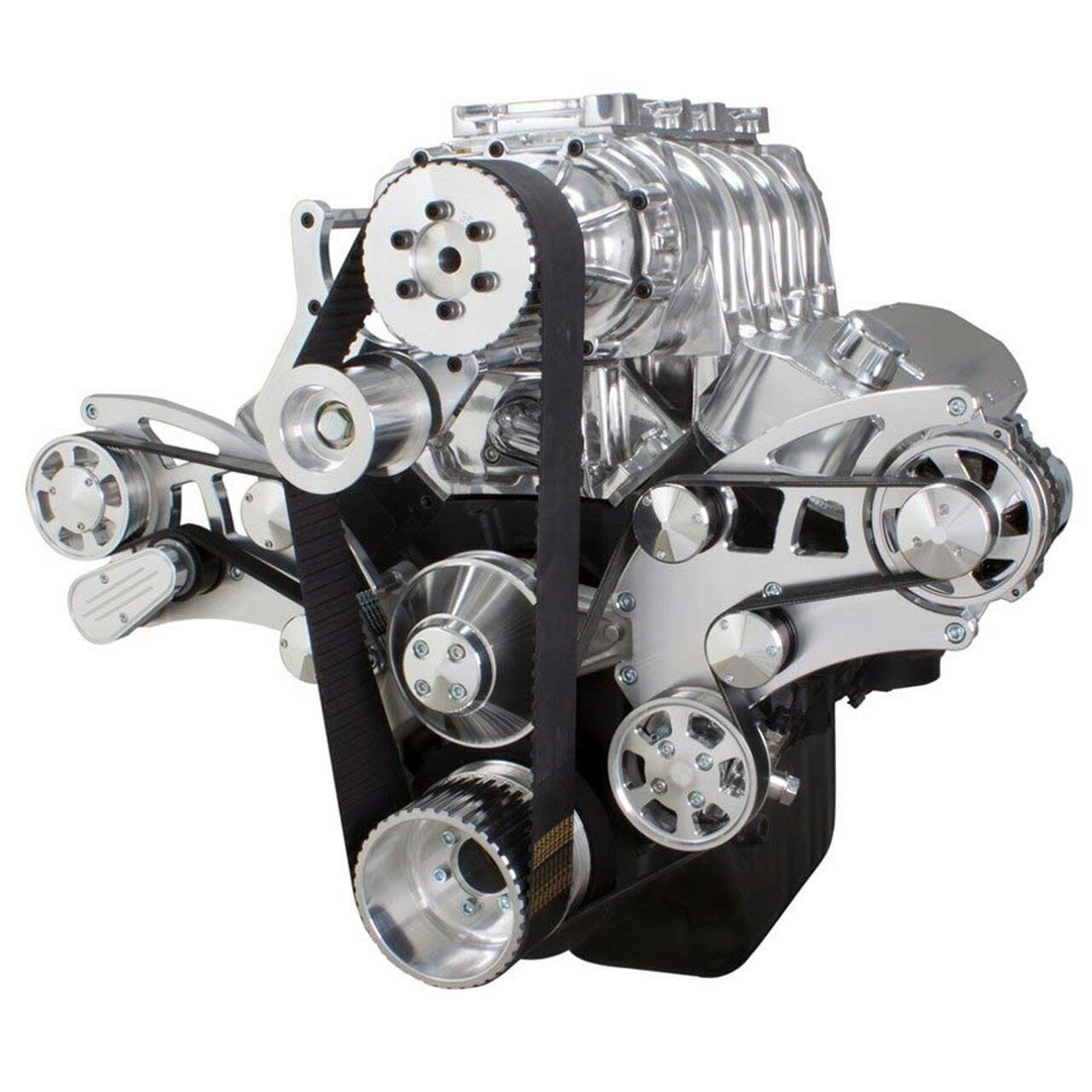

Big Block Chevy 396, 427 and 454 Supercharger Engine Serpentine Conversion Kit Power Steering and Alternator - Root Style Blower
All Inclusive WRAPTORTM 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator and GM Type II Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:

High Flow Aluminum Water Pump
140 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Polished Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Polished Billet Aluminum
Crank Pulley - Polished Billet Aluminum
Alternator Pulley & Cover - Polished Billet Aluminum
Power Steering Pulley - Polished Billet Aluminum
One Piece Billet Aluminum Bracket - Polished Billet Aluminum
AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
Universal alternator fan - Polished Billet Aluminum

Application Notes:

Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan
Works with Standard Deck Engines (will not work with Tall Deck Engines)
Power Steering Lines from pump to reservoir not included
Call for verification on Blower Crank Pulley

Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6 in. bolt spacing
Power Steering Pump - GM Type II Pump
Water Pump - 5.7 in. Tall, Reverse Rotation, 5/8 in. Pilot and Lower Radiator Hose on Driver Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
