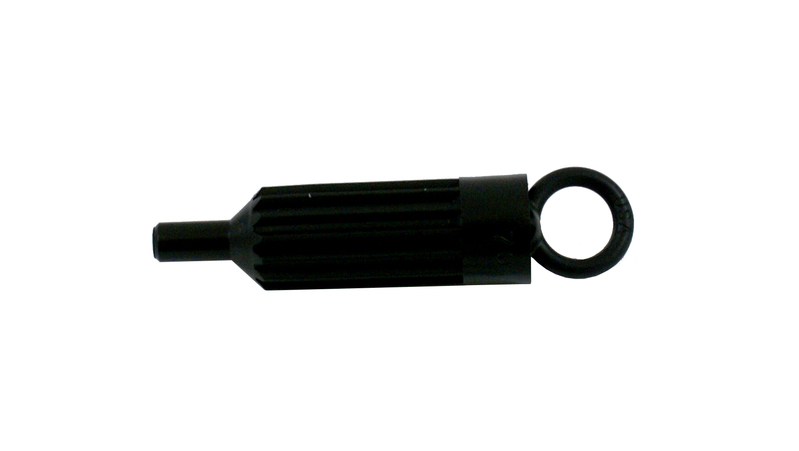

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Daihatsu Delta 4.1 Ltr, 15BF BU102P, 10/96-12/98, Check Size 1996-1998Daihatsu Delta 4.1 Ltr, 15BF BU112J, 8/97-12/98 1997-1998Toyota Coaster 4.1 Ltr Diesel, 15B, 100kw BB50R, 6 Speed, 3/03-9/06 2003-2006Toyota Coaster 4.1 Ltr Diesel, 15B, 100kw BB50R, 6 Speed, 3/03-9/06 2003-2006Toyota Dyna 4.1 Ltr TDI, 15BT BU102, 5/95-12/98 1995-1998Toyota Dyna 4.1 Ltr TDI, 15BT BU102, 5/95- 1995Toyota Dyna 4.1 Ltr TDI, 15BT BU132, 5/95- 1995Toyota Dyna 4.1 Ltr TDI, 15BT BU132, 5/95-12/99 1995-1999Toyota Dyna 4.1 Ltr TDI, 15BT BU142, 5/95- 1995Toyota Dyna 4.1 Ltr TDI, 15BT BU142, 5/95-12/03 1995-2003Toyota Dyna 4.1 Ltr TDI, 15BT BU212, 5/95- 1995Toyota Dyna 4.1 Ltr, 15B-F BU212, 11/97-5/03 1997-2003Toyota Dyna 4.1 Ltr TDI, 15BT BU212, 5/95-12/99 1995-1999Toyota Dyna 4.1 Ltr, 15B-F BU212, 11/97-5/03 1997-2003Toyota Dyna 4.1 Ltr TDI, 15BT BU222, 5/95-12/03 1995-2003Toyota Dyna 4.1 Ltr TDI, 15BT BU222, 5/95- 1995Toyota Dyna 4.0 Ltr TDI, N04C XZU304, 10/03-6/11, New Zealand Only 2003-2011Toyota Dyna 4.9 Ltr TDI, S05DA XZU306, 5/99-10/06, New Zealand Only 1999-2006Toyota Dyna 4.6 Ltr TDI, S05CA XZU312, 5/99-6/04, New Zealand Only 1999-2004Toyota Dyna 4.0 Ltr TDI, N04CTF XZU345, 1/03-12/04, New Zealand Only 2003-2004Toyota Dyna 4.6 Ltr TDI, S05CA XZU362, 7/99-6/04, New Zealand Only 1999-2004Toyota Prado 4.0 Ltr MPFI, 1GR-FE, 179kw GRJ120, 5 Speed, 3/03-8/04 2003-2004Toyota Supra 3.0 Ltr Twin Turbo, 2JZ-GTE JZA80, 6 Speed, 5/93-12/98 1993-1998Toyota Toyoace 4.1 Ltr Diesel, 15BF BU102, 5/95-5/99, New Zealand Only 1995-1999Toyota Toyoace 4.1 Ltr Tdi, 15BFT BU212, 5 Speed, 5/95-5/99, New Zealand Only 1995-1999Toyota Dyna 4.0 Ltr Tdi, N04C XZU554, 10/06-6/11 2006-2011Toyota Dyna 4.0 Ltr Tdi, N04CUN XZU605, 7/11-5/17 2011-2017Toyota Dyna 4.0 Ltr Tdi, N04CUN XZU675, 7/11-5/17 2011-2017Toyota Toyoace 4.0 Ltr Tdi, N04C XZU554, 10/06-6/11 2006-2011Toyota Toyoace 4.0 Ltr Tdi, N04CUN XZU605, 7/11-5/17 2011-2017Toyota Toyoace 4.0 Ltr Tdi, N04CUN XZU675, 7/11-5/17 2011-2017
