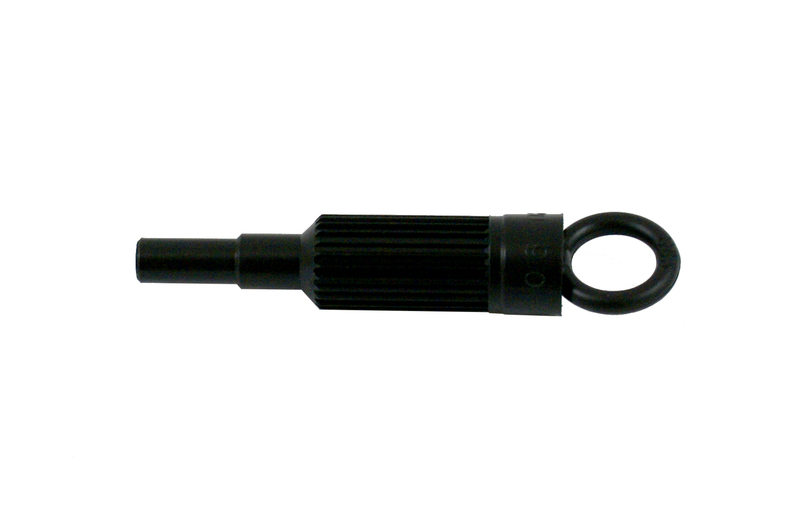

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Subaru 1600 - 1800 4WD Leone & L Series 1.6 Ltr, EA71 AA3, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC, EA82 AA5-7, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC Turbo, EA82 AG5, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC, EA82 AG5, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC Turbo, EA82 AG6, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC, EA82 AL5-7, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.6 Ltr OHC, EA71 AP3, 6/84-12/95 1984-1995Subaru 1600 - 1800 4WD Leone & L Series 1.8 Ltr OHC, EA82 AP5, 6/84-12/95 1984-1995Subaru Forester 2.5 Ltr SOHC, EJ25 S11, 2/02-5/03 2002-2003Subaru Forester 2.0 Ltr Tdi, EE20, 110kw S12, 5 Speed, 9/08- 2008Subaru Impreza 1.8 Ltr, EJ18 9/94-12/98 1994-1998Subaru Impreza 1.6 Ltr, EJ16 9/94-9/98 1994-1998Subaru Impreza 1.8 Ltr, EJ18 4WD, 11/92-5/93 1992-1993Subaru Impreza 2.5 Ltr SOHC, EJ251, 112kw RS, RS, 5 Speed, 4/01-7/05 2001-2005Subaru Impreza 2.5 Ltr SOHC, EJ251, 112kw 10/01-4/02 2001-2002Subaru Impreza 1.6 Ltr, EJ16 GD5, 1/03-12/05, New Zealand Only 2003-2005Subaru Impreza 1.5 Ltr, EJ15, 70KW GF1, 9/99-7/00, New Zealand Only 1999-2000Subaru Impreza 1.5 Ltr, EJ15 GF2, 9/96-7/00, New Zealand Only 1996-2000Subaru Impreza 1.5 Ltr, EJ15, 72KW GF1, 10/94-8/96, New Zealand Only 1994-1996Subaru Impreza 1.5 Ltr, EJ15, 76KW GF1, 9/96-8/98, New Zealand Only 1996-1998Subaru Impreza 1.5 Ltr, EJ15 GG2, 8/00-6/07, New Zealand Only 2000-2007Subaru Impreza 1.5 Ltr, EJ15 GG3, 8/00-6/07, New Zealand Only 2000-2007Subaru Impreza 1.5 Ltr, EL15 GH2, 6/07-, New Zealand Only 2007Subaru Impreza 1.5 Ltr, EL15 GH3, 6/07-, New Zealand Only 2007Subaru Impreza 2.0 Ltr ICT WRX Sti, 6 Speed, 12/01- 2001Subaru Impreza 2.0 Ltr MPFI Turbo, 195kw WRX Sti, 6 Speed, 8/04- 2004Subaru Impreza 2.5 Ltr MPFI Turbo, 206kw WRX Sti, 6 Speed, 6/05-6/07 2005-2007Subaru Impreza 2.0 Ltr MPFI Turbo, EJ20, 195kw WRX Sti, 6 Speed, 11/03-7/04 2003-2004Subaru Impreza 2.5 Ltr MPFI Turbo, 206kw WRX Sti, 6 Speed, 6/07- 2007Subaru Legacy 2.0 Ltr, EJ20 BD5, 10/93-11/98, New Zealand Model 1993-1998Subaru Legacy 2.0 Ltr, EJ20, 100KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ20, 114KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ20N, 92KW BG5, 10/93-5/98, New Zealand Model 1993-1998Subaru Liberty 2.0 Ltr SOHC, EJ20 B12 GL, 1/01-6/03 2001-2003Subaru Liberty 2.5 Ltr SOHC, EJ25 B12 GX, 1/01-6/03 2001-2003Subaru Liberty 3.0 Ltr MPFI, 180kw B13, 6 Speed, 8/04-9/06 2004-2006Subaru Liberty 3.0 Ltr MPFI, 180kw B13 3.0R-B, 6 Speed, 7/05-9/06 2005-2006Subaru Liberty 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 3/05-10/05 2005-2005Subaru Liberty 2.0 Ltr SOHC, EJ20 B13, 5 Speed, 5/03-6/05 2003-2005Subaru Liberty 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 5/03-10/05 2003-2005Subaru Liberty 2.0 Ltr MPFI Turbo, 190kw B13 GT incl Sti, 5 Speed, 3/04-6/06 2004-2006Subaru Liberty 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 11/05-6/07 2005-2007Subaru Liberty 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 11/05-6/07 2005-2007Subaru Liberty 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 4/07- 2007Subaru Liberty 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 4/07- 2007Subaru Liberty 2.0 Ltr Tdi, EE20, 110kw B13, 5 Speed, 9/08- 2008Subaru Outback 2.0 Ltr SOHC, EJ20 B12 GL, 1/01-6/03 2001-2003Subaru Outback 2.5 Ltr SOHC, EJ25 B12 GX, 1/01-6/03 2001-2003Subaru Outback 3.0 Ltr MPFI, 180kw B13, 6 Speed, 8/04-9/06 2004-2006Subaru Outback 3.0 Ltr MPFI, 180kw B13 3.0R-B, 6 Speed, 7/05-9/06 2005-2006Subaru Outback 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 5/03-10/05 2003-2005Subaru Outback 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 3/05-10/05 2005-2005Subaru Outback 2.0 Ltr SOHC, EJ20 B13, 5 Speed, 5/03-6/05 2003-2005Subaru Outback 2.0 Ltr MPFI Turbo, 190kw B13 GT incl Sti, 5 Speed, 3/04-6/06 2004-2006Subaru Outback 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 11/05-6/07 2005-2007Subaru Outback 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 11/05-6/07 2005-2007Subaru Outback 2.0 Ltr DOHC, EJ20 B13, 5 Speed, 4/07- 2007Subaru Outback 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 4/07- 2007Subaru Outback 2.5 Ltr MPFI Turbo, EJ25GT B13 GT Spec B, 6 Speed, 4/07- 2007Subaru Outback 2.0 Ltr Tdi, EE20, 110kw B13, 5 Speed, 9/08-8/09 2008-2009Subaru Vortex 1.8 Ltr Turbo AX4, 1/86-12/89 1986-1989Subaru Vortex 1.8 Ltr Turbo AX7 4WD, 1/87-12/89 1987-1989Subaru BRZ 2.0 Ltr, FA20D, 147kw ZC6, 6 Speed, 6/12- 2012Subaru Forester 2.0 Ltr SOHC, EJ20J S11, 7/02-5/05 2002-2005Subaru Forester 2.0 Ltr SOHC, EJ20J S11, 2/02-7/02 2002-2002Subaru Forester 2.5 Ltr SOHC S11, 5 Speed, 4/03-11/07 2003-2007Subaru Forester 2.5 Ltr MPFI Turbo, 155kw S11, 5 Speed, 3/05-11/07 2005-2007Subaru Forester 2.0 Ltr DOHC, EJ20J S12, 5 Speed, 12/07- 2007Subaru Forester 2.5 Ltr SOHC S12, 5 Speed, 12/07- 2007Subaru Forester 2.5 Ltr MPFI Turbo, 155kw S12, 5 Speed, 12/07- 2007Subaru Forester 2.5 Ltr, FB25 SH, 2/11-12/13 2011-2013Subaru Forester 2.0 Ltr DOHC, FB20, 110kw SJ, 1/13- 2013Subaru Forester 2.5 Ltr DOHC, FB25, 126kw SJ, 1/13- 2013Subaru Impreza 1.8 Ltr, EJ18S, 76kw 4WD, 4/93-11/96 1993-1996Subaru Impreza 2.0 Ltr DOHC, EJ20R 5 Speed, 6/05-6/07 2005-2007Subaru Impreza 2.0 Ltr SOHC, EJ20I 5 Speed, 6/05-6/07 2005-2007Subaru Impreza 2.0 Ltr DOHC, EJ20R 5 Speed, 6/07- 2007Subaru Impreza 2.5 Ltr MPFI I/C Turbo, EJ255, 195kw WRX, 9/10-2/14 2010-2014Subaru Impreza 2.0 Ltr DOHC, FB20, 110kw GJ7, 1/12- 2012Subaru Impreza 2.0 Ltr DOHC, FB20, 110kw GP7, 1/12- 2012Subaru Impreza 2.5 Ltr MPFI Turbo, 169kw WRX, 5 Speed, 6/05-6/07 2005-2007Subaru Impreza 2.5 Ltr MPFI Turbo, 169kw WRX, 5 Speed, 6/07- 2007Subaru Liberty 2.0 Ltr SOHC, EJ20 B12 GL, 4/00-4/01 2000-2001Subaru Liberty 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 4/07- 2007Subaru Outback 2.0 Ltr SOHC, EJ20 B12 GL, 4/00-4/01 2000-2001Subaru Outback 2.5 Ltr SOHC, EJ25I B13, 5 Speed, 4/07- 2007Subaru XV 2.0 Ltr DOHC, FB20, 110kw GP7, 1/12- 2012Subaru Liberty 2.5 Ltr SOHC, EJ253, 127kw BL, 5 Speed, 8/07-8/09 2007-2009Subaru Liberty 2.5 Ltr SOHC, EJ253, 127kw BP, 5 Speed, 8/07-8/09 2007-2009Subaru Forester 2.0 Ltr Turbo, EJ20 S11, 4/03-5/05 2003-2005Subaru Forester 2.5 Ltr 16V Turbo, EJ255, 155kw S11, 4/03-5/05 2003-2005Subaru Impreza 2.0 Ltr ICT, EJ205, 160kw WRX 4WD, 8/98-10/00 1998-2000Subaru Impreza 2.0 Ltr 16V Turbo, EJ20G WRX 4WD, 2/94-8/98 1994-1998Subaru Impreza 2.0 Ltr ICT, EJ205 WRX EVO 3, 5 Speed, 7/99-9/99 1999-1999Subaru Impreza 2.0 Ltr ICT, EJ205 WRX EVO 4, 5 Speed, 3/00-7/00 2000-2000Subaru Impreza 2.0 Ltr ICT, EJ205 WRX EVO 5, 3/02-7/02 2002-2002Subaru Impreza 2.0 Ltr ICT, EJ205 WRX EVO 6, 4/03-8/03 2003-2003Subaru Impreza 2.0 Ltr ICT, EJ205, 168kw WRX EVO 7, 6 Speed, 1/04-9/05 2004-2005Subaru Impreza 2.0 Ltr ICT, EJ205 WRX EVO 8, 3/05-12/05 2005-2005Subaru Impreza 2.0 Ltr ICT, EJ205 WRX Sti, 5 Speed, 10/99-7/00, Version VI 1999-2000Subaru Impreza 2.0 Ltr ICT, EJ205 WRX Sti, 5 Speed, 1/99-2/99, Version V 1999-1999Subaru Legacy 2.0 Ltr, EJ20R, 206KW BD5, 6/96-11/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ208 BE5, 12/98-4/03, New Zealand Model 1998-2003Subaru Legacy 2.0 Ltr, EJ20H, 192KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ20R, 206KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Liberty 2.0 Ltr DOHC, EJ20 B4 B12 B4, 1/01-6/03 2001-2003Subaru Outback 2.0 Ltr DOHC, EJ20 B4 B12 B4, 1/01-6/03 2001-2003Subaru Forester 2.0 Ltr Turbo, EJ20J S10, 3/98-5/02 1998-2002Subaru Forester 2.0 Ltr Turbo, EJ20 S11, 2/02-5/03 2002-2003Subaru Legacy 2.0 Ltr, EJ20H, 184KW BD5, 10/93-7/96, New Zealand Model 1993-1996Subaru Legacy 2.0 Ltr, EJ20H, 184KW BG5, 10/93-5/96, New Zealand Model 1993-1996Subaru Liberty 2.0 Ltr Turbo, EJ20T RS, 10/91-12/94 1991-1994Subaru Outback 2.0 Ltr Turbo, EJ20T RS, 10/91-12/94 1991-1994Subaru Forester 2.0 Ltr SOHC, EJ20J S10, 3/98-5/02 1998-2002Subaru Forester 2.0 Ltr SOHC, EJ20J S10, 1/97-7/98 1997-1998Subaru Impreza 2.0 Ltr, EJ20 1/93-7/97 1993-1997Subaru Impreza 2.0 Ltr SOHC, EJ20 5 Speed, 10/95-4/00 1995-2000Subaru Impreza 2.0 Ltr SOHC, EJ20, 92kw 5 Speed, 4/00-7/05 2000-2005Subaru Impreza 2.0 Ltr SOHC, EJ20E Sportswagon, 3/97-10/00 1997-2000Subaru Impreza 2.5 Ltr SOHC, EJ251, 112kw 5 Speed, 10/01-4/02 2001-2002Subaru Legacy 2.0 Ltr, EJ20 BD5, 10/93-11/98, New Zealand Model 1993-1998Subaru Legacy 2.0 Ltr, EJ20, 100KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ20, 114KW BG5, 6/96-5/98, New Zealand Model 1996-1998Subaru Legacy 2.0 Ltr, EJ20N, 92KW BG5, 10/93-5/98, New Zealand Model 1993-1998Subaru Liberty 2.2 Ltr, EJ22 2WD, 1/89-6/94 1989-1994Subaru Liberty 2.2 Ltr, EJ22, 98kw 4WD, 6/94-8/98 1994-1998Subaru Liberty 2.2 Ltr, EJ22 4WD, 10/89-6/94 1989-1994Subaru Liberty 2.0 Ltr SOHC, EJ20 B12 GL, 4/98-3/00 1998-2000Subaru Liberty 2.0 Ltr SOHC, EJ20 B12 LX, 4/98-6/99 1998-1999Subaru Liberty 2.5 Ltr SOHC, EJ25 B12 GX, 4/98-4/01 1998-2001Subaru Outback 2.2 Ltr, EJ22 2WD, 1/89-6/94 1989-1994Subaru Outback 2.2 Ltr, EJ22, 98kw 4WD, 6/94-8/98 1994-1998Subaru Outback 2.2 Ltr, EJ22 4WD, 10/89-6/94 1989-1994Subaru Outback 2.0 Ltr SOHC, EJ20 B12 GL, 4/98-3/00 1998-2000Subaru Outback 2.0 Ltr SOHC, EJ20 B12 LX, 4/98-6/99 1998-1999Subaru Outback 2.5 Ltr SOHC, EJ25 B12 GX, 4/98-4/01 1998-2001Subaru Impreza 2.0 Ltr MPFI Turbo, EJ20X, 186kw GH8, 6/07-11/11 2007-2011Toyota 86 2.0 Ltr, 4UGSE, 147kw GT, 6 Speed, 6/12- 2012Toyota 86 2.0 Ltr, 4UGSE, 147kw GTS, 6 Speed, 6/12- 2012Subaru Liberty 2.5 Ltr MPFI Turbo, EJ255 B13 GT Spec B, 6 Speed, 4/07-1/15 2007-2015Subaru Outback 2.0 Ltr Tdi, EE20, 110kw BP, 5 Speed, 8/08-8/09 2008-2009Subaru Outback 2.0 Ltr Tdi, EE20, 110kw BR, 6 Speed, 10/09-1/15 2009-2015Subaru Outback 2.0 Ltr TDI, EE20, 110kw BS, 6 Speed, 12/14-12/20 2014-2020ORANGE
