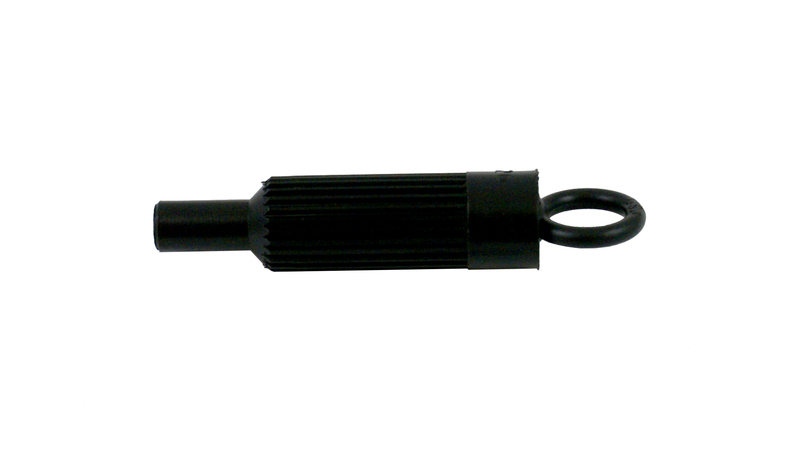

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Bedford TK Truck Range 318ci, 6V53 GM ERV6, 1/70-12/76 1970-1976Buick 400ci, V8 1/67-12/70 1967-1970Buick 455ci 4 Speed, 1/71-12/73 1971-1973Cadillac CTS-V 6.2 Ltr Supercharged, LSA, 415kw 6 Speed, 1/09- 2009Chevrolet Bel Air 350ci, V8 1/69-12/72 1969-1972Chevrolet Camaro 305ci, V8 1/81-12/92 1981-1992Chevrolet Camaro 350ci, V8 1/87-12/92 1987-1992Chevrolet Camaro 400ci, V8 1/70-12/71 1970-1971Chevrolet Camaro 350ci, V8 1/71-12/81 1971-1981Chevrolet Camaro 350ci, LT1 6 Speed, 1/93-12/97 1993-1997Chevrolet Camaro 3.4 Ltr, V6 1/93-12/95 1993-1995Chevrolet Camaro 3.8 Ltr, V6 1/95-12/02 1995-2002Chevrolet Camaro 5.7 Ltr, LS1 6 Speed, 1/98-12/02 1998-2002Chevrolet Camaro 6.2 Ltr, LS3, 318kw 6 Speed, 3/09-12/15 2009-2015Chevrolet Camaro 6.2 Ltr Supercharged, LSA, 432kw ZL1, 6 Speed, 1/12-12/15 2012-2015Chevrolet Chevelle 350ci, V8 1/69-12/69 1969-1969Chevrolet Chevelle 400ci, V8 1/70-12/70 1970-1970Chevrolet Chevelle 402ci, V8 1/72-12/72 1972-1972Chevrolet Chevelle 454ci, V8 1/70-12/73 1970-1973Chevrolet Corvette 327ci, V8 C2, 1/65-12/67 1965-1967Chevrolet Corvette 350ci, V8 C3, 1/73-12/82 1973-1982Chevrolet Corvette 327ci, V8 C3, 1/68-12/68 1968-1968Chevrolet Corvette 350ci, V8 C3, 1/69-12/72 1969-1972Chevrolet Corvette 454ci, V8 C3, 1/70-12/74 1970-1974Chevrolet Corvette 5.7 Ltr, L98 C4, 1/84-12/84 1984-1984Chevrolet Corvette 5.7 Ltr, LT5 C4, 1/94-12/95 1994-1995Chevrolet Corvette 5.7 Ltr, LT1 C4, 1/89-12/93 1989-1993Chevrolet Corvette 5.7 Ltr, L98 C4, 1/89-12/93 1989-1993Chevrolet Corvette 5.7 Ltr, LT5 C4, 1/90-12/93 1990-1993Chevrolet Corvette 5.7 Ltr, L98 C4, 1/85-12/88 1985-1988Chevrolet Corvette 5.7 Ltr, LT4 C4, 1/96-12/96 1996-1996Chevrolet Corvette 5.7 Ltr, LT1 C4, 1/94-12/95 1994-1995Chevrolet Corvette 5.7 Ltr, LS1 C5, 6 Speed, 1/98-12/04 1998-2004Chevrolet Corvette 6.0 Ltr, LS2 C6, 6 Speed, 1/05-12/07 2005-2007Chevrolet Corvette 6.2 Ltr, LS3 C6, 6 Speed, 1/08-2/13 2008-2013Chevrolet Corvette 7.0 Ltr, LS7 C6, 6 Speed, 1/06-2/13 2006-2013Chevrolet El Camino 454ci, V8 1/72-12/74 1972-1974Chevrolet Impala 350ci, V8 1/69-12/72 1969-1972Chevrolet Malibu 454ci, V8 1/73-12/75 1973-1975Chevrolet Monte Carlo 454ci, V8 1/70-12/74 1970-1974Chevrolet Monte Carlo 400ci, V8 1/70-12/72 1970-1972HDT Commodore 5.0 Ltr, L31, 177kw VK SS, 5 Speed, 3/84-7/85 1984-1985HDT Commodore 5.0 Ltr, L31, 177kw VK SS Group 3, 5 Speed, 3/84-7/85 1984-1985HDT Commodore 5.0 Ltr, L31, 200kw VK SS Group A, 5 Speed, 6/85-3/86 1985-1986Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VT Series II, 6 Speed, 6/99-10/00 1999-2000Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VU, 6 Speed, 1/01-9/02 2001-2002Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VX, 6 Speed, 8/00-9/02 2000-2002Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VY, 6 Speed, 9/02-7/04 2002-2004Holden Commodore 5.7 Ltr, V8 GEN III, 250kw VZ, 6 Speed, 8/04-1/06 2004-2006Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 260kw VZ, 6 Speed, 2/06-7/06 2006-2006Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 270KW VE, 6 Speed, 8/06-8/10 2006-2010Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 270KW VE, 6 Speed, 9/10-12/11 2010-2011Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 270KW VE Series II, 6 Speed, 9/10-12/11 2010-2011Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 270KW VE Series II, 6 Speed, 1/12-4/13 2012-2013Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 270KW VF, 6 Speed, 5/13-9/15 2013-2015Holden Commodore 6.2 Ltr MPFI, LS3, 304KW VF, 6 Speed, 10/15- 2015Holden Crewman 5.7 Ltr MPFI, 225kw Crew Cab Utility, VY, 6 Speed, 9/03-7/04 2003-2004Holden Crewman 5.7 Ltr MPFI, 235kw Crew Cab Utility, VZ, 6 Speed, 9/05-7/06 2005-2006Holden Monaro 350ci, Chev V8, 205kw HQ GTS 350, 4 Speed, 7/71-9/74 1971-1974Holden Monaro 5.7 Ltr, V8 GEN III, 225kw V2 Series I CV8, 6 Speed, 10/01-11/02 2001-2002Holden Monaro 5.7 Ltr, V8 GEN III, 235kw V2 Series II CV8, 6 Speed, 12/02-7/03 2002-2003Holden Monaro 5.7 Ltr, V8 GEN III, 245kw V2 Series III CV8, 6 Speed, 8/03-8/04 2003-2004Holden Monaro 5.7 Ltr, V8 GEN III, 260KW VZ CV8, 6 Speed, 9/04-12/05 2004-2005Holden Torana 308ci, V8, 179kw LH A9X, 3/74-2/76 1974-1976HSV Calais 5.0 Ltr, LV2, 136kw VL SV88, 5 Speed, 5/88-11/88, Flywheel not included 1988-1988HSV Clubsport 5.0 Ltr, LB9, 180kw VN SV, 5 Speed, 8/90-9/91, Flywheel not included 1990-1991HSV Clubsport 5.0 Ltr EFI, LB9, 185kw VR, 5 Speed, 8/93-4/95 1993-1995HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT, 6 Speed, 7/99-10/00 1999-2000HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT R8, 6 Speed, 7/99-10/00 1999-2000HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX, 6 Speed, 9/00-9/02 2000-2002HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX R8, 6 Speed, 9/00-9/02 2000-2002HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-8/03 2002-2003HSV Clubsport 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 9/03-9/04 2003-2004HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/06 2004-2006HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-7/06 2004-2006HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 4/08-2/10 2008-2010HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 307kw VE R8, 6 Speed, 8/06-3/08 2006-2008HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VE GXP, 6 Speed, 2/10-8/11 2010-2011HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 2/10-8/11 2010-2011HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VE, 6 Speed, 8/12-5/13 2012-2013HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 9/11-5/13 2011-2013HSV Clubsport 6.2 Ltr Supercharged, LSA, 400kw VF R8, 6 Speed, 11/15- 2015HSV Clubsport 6.2 Ltr MPFI, LS3, 317kw VF, 6 Speed, 6/13-9/14 2013-2014HSV Clubsport 6.2 Ltr MPFI, LS3, 325kw VF, 6 Speed, 10/14- 2014HSV Clubsport 6.2 Ltr MPFI, LS3, 325kw VF R8, 6 Speed, 6/13-10/15 2013-2015HSV Clubsport 6.2 Ltr MPFI, LS3, 340kw VF R8, 6 Speed, 6/16- 2016HSV Commodore 5.0 Ltr, LB9, 200kw VN, 5 Speed, 3/89-7/91, Flywheel not included 1989-1991HSV Commodore 5.0 Ltr, LB9, 180kw VN, 5 Speed, 3/89-9/90, Flywheel not included 1989-1990HSV Commodore 5.0 Ltr, LB9, 210kw VN SS Group A, 6 Speed, 9/90-3/91, Flywheel not included 1990-1991HSV Coupe 5.7 Ltr, GEN III (LS1), 285kw V2 GTO, 6 Speed, 9/03-9/04 2003-2004HSV Coupe 5.7 Ltr, GEN III (LS1), 255kw V2 GTO, 6 Speed, 12/01-8/03 2001-2003HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 4/04-9/04 2004-2004HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 12/01-8/03 2001-2003HSV Coupe 5.7 Ltr, GEN III (LS1), 270kw VZ, 6 Speed, 10/04-4/06 2004-2006HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ GTO, 6 Speed, 10/04-12/06 2004-2006HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ Signature, 6 Speed, 7/06-11/07 2006-2007HSV GTS 5.7 Ltr, HSV V8, 215kw VR, T56 6 Speed, 5/94-4/95 1994-1995HSV GTS 5.7 Ltr, HSV V8, 215kw VS, T56 6 Speed, 4/95-8/97 1995-1997HSV GTS 5.7 Ltr, HSV V8, 220kw VT, T56 6 Speed, 9/97-6/99 1997-1999HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VT, 6 Speed, 4/00-9/00 2000-2000HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VX, 6 Speed, 9/00-8/01 2000-2001HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VY, 6 Speed, 10/02-9/04 2002-2004HSV GTS 6.0 Ltr MPFI, Gen 4 (LS2), 307kw VE, 6 Speed, 8/06-3/08 2006-2008HSV GTS 6.2 Ltr MPFI, LS3, 317kw VE, 6 Speed, 4/08-8/09 2008-2009HSV GTS 6.2 Ltr MPFI, LS3, 325kw VE R8, 6 Speed, 9/09-2/10 2009-2010HSV GTS 6.2 Ltr MPFI, LS3, 325kw VE R8, 6 Speed, 2/10-8/11 2010-2011HSV GTS 6.2 Ltr MPFI, LS3, 325kw VE R8, 6 Speed, 9/11-5/13 2011-2013HSV GTS 6.2 Ltr Supercharged, LSA, 430kw VF, 6 Speed, 6/13- 2013HSV GTSR 6.2 Ltr Supercharged, LSA, 435kw VF, 6 Speed, 2/17- 2017HSV GTSR 6.2 Ltr Supercharged, LSA, 435kw VF Maloo, 6 Speed, 2/17- 2017HSV GTS-R 5.7 Ltr, HSV V8, 215kw VS, T56 6 Speed, 10/95-12/96 1995-1996HSV LS 5.0 Ltr, LB9, 165kw VG, 5 Speed, 9/91-1/92, Flywheel not included 1991-1992HSV LS 5.0 Ltr EFI, LB9, 165kw VP, 5 Speed, 2/92-6/93 1992-1993HSV Maloo 5.0 Ltr, LB9, 180kw VG, 5 Speed, 12/90-2/92, Flywheel not included 1990-1992HSV Maloo 5.0 Ltr EFI, LB9, 180kw VP S, 5 Speed, 3/92-6/93 1992-1993HSV Maloo 5.0 Ltr EFI, LB9, 185kw VR, 5 Speed, 7/93-3/95 1993-1995HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU, 6 Speed, 3/01-9/02 2001-2002HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU R8, 6 Speed, 3/01-9/02 2001-2002HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 10/03-9/04 2003-2004HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-9/03 2002-2003HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-9/03 2002-2003HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 10/03-9/04 2003-2004HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/07 2004-2007HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-9/07 2004-2007HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 307kw VE R8, 6 Speed, 10/07-3/08 2007-2008HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 4/08-2/10 2008-2010HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VE GXP, 6 Speed, 2/10-8/11 2010-2011HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 2/10-8/11 2010-2011HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VE, 6 Speed, 8/12-5/13 2012-2013HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VE R8, 6 Speed, 9/11-5/13 2011-2013HSV Maloo 6.2 Ltr Supercharged, LSA, 430kw VF GTS, 6 Speed, 10/14-10/15 2014-2015HSV Maloo 6.2 Ltr Supercharged, LSA, 400kw VF R8, 6 Speed, 11/15- 2015HSV Maloo 6.2 Ltr MPFI, LS3, 317kw VF, 6 Speed, 6/13-9/14 2013-2014HSV Maloo 6.2 Ltr MPFI, LS3, 325kw VF, 6 Speed, 10/14-10/15 2014-2015HSV Maloo 6.2 Ltr MPFI, LS3, 325kw VF R8, 6 Speed, 6/13-10/15 2013-2015HSV Maloo 6.2 Ltr MPFI, LS3, 340kw VF R8, 6 Speed, 6/16- 2016HSV Senator 5.7 Ltr, HSV V8, 215kw VR 215i, T56 6 Speed, 5/94-4/95 1994-1995HSV Senator 5.7 Ltr, HSV V8, 215kw VS 215i, T56 6 Speed, 4/95-8/97 1995-1997HSV Senator 5.7 Ltr, HSV V8, 220kw VT Signature 220i, T56 6 Speed, 9/97-6/99 1997-1999HSV Senator 5.7 Ltr, GEN III (LS1), 250kw VT Signature, 6 Speed, 7/99-10/00 1999-2000HSV Senator 5.7 Ltr, GEN III (LS1), 300kw VX 300, 6 Speed, 3/01-6/01 2001-2001HSV Senator 5.7 Ltr, GEN III (LS1), 255kw VX Signature, 6 Speed, 9/00-9/02 2000-2002HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 9/03-9/04 2003-2004HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY Signature, 6 Speed, 10/02-8/03 2002-2003HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY Signature, 6 Speed, 9/03-9/04 2003-2004HSV Senator 6.2 Ltr MPFI, LS3, 317kw VE, 6 Speed, 3/09-9/09 2009-2009HSV Senator 6.0 Ltr MPFI, Gen 4 (LS2), 307kw VE Signature, 6 Speed, 8/06-3/08 2006-2008ORANGE
