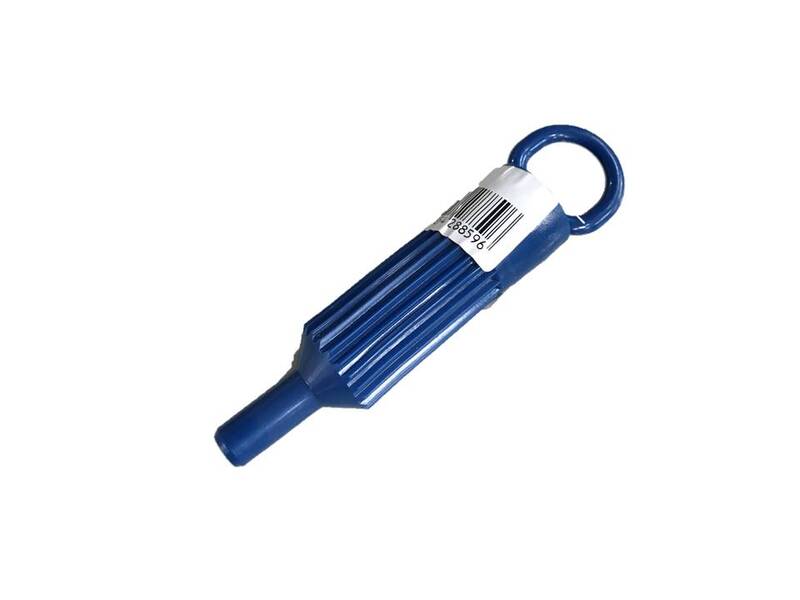

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Daihatsu Delta 4.1 Ltr, 15BF BU102J, 5/95-12/98 1995-1998Daihatsu Delta 4.1 Ltr, 15BF BU102N, 5/95-12/98 1995-1998Daihatsu Delta 4.1 Ltr, 15BF BU102P, 8/97-12/98, Check Size 1997-1998Daihatsu Delta 4.1 Ltr, 15BF BU102U, 5/95-12/98 1995-1998Daihatsu Delta 4.1 Ltr, 15BF BU112N, 5/95-12/98 1995-1998Daihatsu Delta 4.1 Ltr, 15BF BU112U, 5/95-12/98 1995-1998Daihatsu Delta 1.6 Ltr Petrol SV17, 7/75-12/77 1975-1977Daihatsu Delta 1.6 Ltr Petrol SV17T, 1/75-12/77 1975-1977Daihatsu Delta 1.6 Ltr Petrol SV17T, 1/72-6/75 1972-1975Daihatsu Delta 2.5 Ltr V20, 1/78-12/83 1978-1983Daihatsu Delta 2.5 Ltr V22, 1/78-12/83 1978-1983Daihatsu Delta 2.5 Ltr V24, 1/78-12/83 1978-1983Daihatsu Delta 2.5 Ltr V25, 1/78-12/83 1978-1983Daihatsu Delta 2.5 Ltr, DG V26, 8/79-2/83 1979-1983Daihatsu Delta 2.0 Ltr Petrol, 5R V30, 1/78-12/84 1978-1984Daihatsu Delta 2.0 Ltr Petrol, 5R V31, 1/78-12/84 1978-1984Daihatsu Delta 2.0 Ltr Petrol, 5R V32, 1/78-12/84 1978-1984Daihatsu Delta 2.0 Ltr Petrol, 5R V34, 1/78-12/84 1978-1984Daihatsu Delta 2.0 Ltr Petrol, 5R V35, 1/78-12/84 1978-1984Daihatsu Delta 3.4 Ltr, 3B V40, 1/82-12/84 1982-1984Daihatsu Delta 3.4 Ltr, 3B V42, 1/82-12/84 1982-1984Daihatsu Delta 3.4 Ltr, 3B V47, 1/82-12/84 1982-1984Daihatsu Delta 3.4 Ltr, 3B V48, 1/82-12/84 1982-1984Daihatsu Delta 2.8 Ltr, DL V50, 1/82-12/94 1982-1994Daihatsu Delta 2.8 Ltr, DL V52, 1/82-12/94 1982-1994Daihatsu Delta 2.8 Ltr, DL V53, 1/82-12/85 1982-1985Daihatsu Delta 2.8 Ltr, DL V54, 1/82-12/94 1982-1994Daihatsu Delta 2.8 Ltr, DL V55, 1/82-12/94 1982-1994Daihatsu Delta 2.8 Ltr, DL V57, 1/82-12/94 1982-1994Daihatsu Delta 2.8 Ltr, DL V58, 1/82-12/94 1982-1994Daihatsu Delta 2.0 Ltr Petrol, 3Y V67, 1/85-12/88 1985-1988Daihatsu Delta 2.0 Ltr Petrol, 3Y V68, 1/85-12/88 1985-1988Daihatsu Delta 3.4 Ltr, 13B V70, 1/84-12/89 1984-1989Daihatsu Delta 3.4 Ltr, 13B V75, 1/84-12/89 1984-1989Daihatsu Delta 3.4 Ltr, 13B V76, 11/84-1/89 1984-1989Daihatsu Delta 3.4 Ltr, 13B V78, 11/84-12/89 1984-1989Daihatsu Delta 3.4 Ltr, 13B V79, 11/84-12/89 1984-1989Daihatsu Delta 3.0 Ltr, B V90, 8/88-10/89 1988-1989Daihatsu Delta 3.0 Ltr, B V90, 10/89-12/94 1989-1994Daihatsu Delta 3.0 Ltr, B V90, 8/80-7/88 1980-1988Daihatsu Delta 3.0 Ltr, B V92, 8/88-10/89 1988-1989Daihatsu Delta 3.0 Ltr, B V92, 10/89-12/94 1989-1994Daihatsu Delta 3.0 Ltr, B V92, 8/80-7/88 1980-1988Daihatsu Delta 3.0 Ltr, B V98, 9/88-9/89 1988-1989Daihatsu Delta 3.0 Ltr, B V98, 10/89-6/96 1989-1996Daihatsu Delta 3.0 Ltr, B V98, 11/84-8/88 1984-1988Daihatsu Delta 3.0 Ltr, B V99, 9/88-9/89 1988-1989Daihatsu Delta 3.0 Ltr, B V99, 10/89-5/96 1989-1996Daihatsu Delta 3.0 Ltr, B V99, 1/85-8/88 1985-1988Daihatsu Delta 2.3 Ltr Petrol V107, 1/89-12/92 1989-1992Daihatsu Delta 2.3 Ltr Petrol V107, 10/87-12/88 1987-1988Daihatsu Delta 2.3 Ltr Petrol V108, 1/89-12/92 1989-1992Daihatsu Delta 2.3 Ltr Petrol V108, 10/87-12/88 1987-1988Daihatsu Delta 3.7 Ltr, 14B V116, 8/88-10/89 1988-1989Daihatsu Delta 3.7 Ltr, 14B V116, 10/89-8/96 1989-1996Daihatsu Delta 3.7 Ltr, 14B V118, 8/88-10/89 1988-1989Daihatsu Delta 3.7 Ltr, 14B V118, 10/89-8/96 1989-1996Daihatsu Delta 3.7 Ltr, 14B V119, 8/88-10/89 1988-1989Daihatsu Delta 3.7 Ltr, 14B V119, 8/89-8/96 1989-1996Daihatsu Delta 3.0 Ltr TDI, 1KD, 85kw V138, 5 Speed, 1/05-12/05 2005-2005Daihatsu F Series 1.6 Ltr F25 4WD, 1/80-12/81 1980-1981Daihatsu F Series 1.6 Ltr F25 4WD, 1/81-12/84 1981-1984Daihatsu F Series 2.5 Ltr Diesel F50, 1/78-12/82 1978-1982Daihatsu F Series 2.5 Ltr Diesel F55, 1/80-12/82 1980-1982Daihatsu F Series 2.8 Ltr Diesel, including Turbo F60, 1/84-12/89 1984-1989Daihatsu F Series 2.8 Ltr Diesel, including Turbo F65, 1/84-12/89 1984-1989Daihatsu Rocky 2.8 Ltr Diesel, including Turbo F70, 1/84-12/89 1984-1989Daihatsu Rocky 2.8 Ltr TDI, DL52, 56 F73, 5 Speed, 8/93-7/98 1993-1998Daihatsu Rocky 2.8 Ltr TDI F73, 1/90-1/99 1990-1999Daihatsu Rocky 2.8 Ltr TDI F75, 1/90-1/99 1990-1999Daihatsu Rocky 2.8 Ltr Diesel, including Turbo F75, 1/84-12/89 1984-1989Daihatsu Rocky 2.8 Ltr Diesel, including Turbo F77, 1/84-12/89 1984-1989Daihatsu Rocky 2.8 Ltr TDI F78, 1/90-1/99 1990-1999Daihatsu Rocky 2.0 Ltr, 3Y F80, 1/84-12/89 1984-1989Daihatsu Rocky 2.0 Ltr, 3Y F85, 1/84-12/89 1984-1989Daihatsu Rocky 2.0 Ltr, 3Y F87, 1/84-12/89 1984-1989Daihatsu Rugger 2.8 Ltr Diesel, DL F70, 1/84-12/91 1984-1991Daihatsu Rugger 2.8 Ltr Diesel, DL F75, 1/84-12/91 1984-1991Daihatsu Rugger 2.8 Ltr TDI, DL-T F75V, 1/89-12/93 1989-1993Daihatsu Rugger 2.8 Ltr TDI, DL-T F76, 1/87-12/91 1987-1991Daihatsu Scat 1.6 Ltr F20JK, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20JV, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20JVS, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20L, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20LK, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20LV, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20VD, 1/77-12/81 1977-1981Daihatsu Scat 1.6 Ltr F20JK, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20JV, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20JVS, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20L, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20LK, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20LV, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F20VD, 1/81-12/84 1981-1984Daihatsu Scat 1.6 Ltr F25 4WD, 1/80-12/81 1980-1981Daihatsu Scat 1.6 Ltr F25 4WD, 1/81-12/84 1981-1984Daihatsu Scat 2.5 Ltr Diesel F50, 1/78-12/82 1978-1982Daihatsu Scat 2.5 Ltr Diesel F55, 1/83-7/83 1983-1983Daihatsu Scat 2.8 Ltr Diesel, including Turbo F60, 1/84-12/89 1984-1989Daihatsu Scat 2.8 Ltr Diesel, including Turbo F65, 1/84-12/89 1984-1989Holden With Conversion G/Box 6 Cyl, Red Motor pull type fork, Celica G/Box, 1/77- 1977Holden With Conversion G/Box 6 Cyl, Red Motor push type fork, Celica G/Box, 1/64- 1964Holden With Conversion G/Box 6 Cyl, Blue Motor pull type fork, Celica G/Box, 1/77- 1977Holden With Conversion G/Box 253ci & 308ci, V8 push type fork, Celica G/Box, 1/69-, Flat Dia Cover 1969Holden With Conversion G/Box 350ci, V8 push type fork, Celica G/Box, 1/68-, Hi-Rise Dia Cover 1968Holden With Conversion G/Box 253ci & 308ci, V8 push type fork, Celica G/Box, 1/69-, Hi-Rise Dia Cover 1969Holden With Conversion G/Box 253ci & 308ci, V8 pull type fork, Celica G/Box, 1/77-, Flat Dia Cover 1977Holden With Conversion G/Box 253ci & 308ci, V8 pull type fork, Celica G/Box, 1/77-, HD Flat Dia Cover 1977Holden With Conversion G/Box 350ci, V8 pull type fork, Celica G/Box, 1/77-, Hi-Rise Dia Cover 1977Lexus IS200 2.0 Ltr 6 Cyl, 1G-FE 6 Speed, 3/99-10/05 1999-2005Lexus IS200 2.0 Ltr, V6 GXE10R, 2/99-10/05 1999-2005Toyota 4 Runner 2.4 Ltr Diesel, 2L LN60, 11/83-8/88 1983-1988Toyota 4 Runner 2.4 Ltr TDI, 2L-T LN61, 11/84-8/88 1984-1988Toyota 4 Runner 2.4 Ltr, 22R RN130, 1/89-12/94 1989-1994Toyota 4 Runner 2.4 Ltr, 22R RN130, 1/94-12/96 1994-1996Toyota 4 Runner 3.0 Ltr V6, 3VZ-E, 105kw VZN130, 5 Speed, 8/90-7/96 1990-1996Toyota 4 Runner 2.0 Ltr, 3Y YN60, 11/83-12/85, some models 1983-1985Toyota 4 Runner 2.0 Ltr, 3Y YN60, 11/83-12/85 1983-1985Toyota 4 Runner 2.4 Ltr, 22R YN63, some, 5/89-10/89 1989-1989Toyota 4 Runner 2.4 Ltr, 22R YN63, 5/89-10/89 1989-1989Toyota 4 Runner 2.0 Ltr, 3YE YN130, 5 Speed, 4/89-7/91, some models 1989-1991Toyota Altezza 2.0 Ltr, 3S-GE SXE10, 11/98-12/04 1998-2004Toyota Avensis 2.4 Ltr VVTi, 2AZ-FE, 110kw ACM20, 5/01-7/05 2001-2005Toyota Avensis 2.0 Ltr, 1AZFSE, 108kw AZT250R, 1/03-12/07, New Zealand Model 2003-2007Toyota Blizzard 2.2 Ltr, L LD10, 1/82-12/83 1982-1983Toyota Blizzard 2.4 Ltr TDI, 2L-T LD20V, 1/84-12/89 1984-1989Toyota Bundera 2.4 Ltr TDI, 2L-T LJ70, 4/90-2/91 1990-1991Toyota Bundera 2.4 Ltr TDI, 2L-T LJ70, 10/85-3/90 1985-1990Toyota Bundera 2.4 Ltr TDI, 2L-T LJ70, 11/84-10/85 1984-1985Toyota Bundera 2.4 Ltr TDI, 2L-T LJ71, 10/85-3/90 1985-1990Toyota Bundera 2.4 Ltr TDI, 2L-T LJ71, 4/90-2/91 1990-1991Toyota Bundera 2.4 Ltr TDI, 2L-T LJ71, 11/84-10/85 1984-1985Toyota Bundera 2.4 Ltr, 22R RJ70, 9/88-12/91 1988-1991Toyota Bundera 2.4 Ltr, 22R RJ70, 1/85-8/88 1985-1988Toyota Camry-Vienta 2.4 Ltr, 2AZFE ACV30R, 1/01-12/05, New Zealand Model 2001-2005Toyota Camry-Vienta 2.4 Ltr DOHC, 2AZ-FE, 112kw ACV36R, 9/02-6/06 2002-2006Toyota Camry-Vienta 2.4 Ltr MPFI, 2AZ-FE, 117kw 4D Sedan, ACV40R, 5 Speed, 7/06- 2006Toyota Celica 2.0 Ltr, 18R RA23, 1/76-12/78 1976-1978Toyota Celica 2.0 Ltr, 18R RA28, 1/76-12/78 1976-1978Toyota Celica 2.0 Ltr, 18R RA40, 1/77-12/81 1977-1981Toyota Celica 2.4 Ltr EFI, 22R RA65, 1/84-12/85 1984-1985Toyota Chaser 2.5 Ltr Turbo, 1JZ-GTE JZX100, 5/98-6/01 1998-2001Toyota Chaser 2.5 Ltr, 1JZ JZX90, 10/92-12/96 1992-1996Toyota Chaser 2.4 Ltr TDI, 2L-T LX70, 1/84-12/88 1984-1988Toyota Chaser 2.4 Ltr TDI, 2L-T LX80, 1/88-12/92 1988-1992Toyota Coaster 3.4 Ltr Diesel, 13B Bus, BB20, 1/82-10/89 1982-1989Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB20, 8/82-10/89 1982-1989Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB21, 11/89-1/93 1989-1993Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB21, 1/82-10/89 1982-1989Toyota Coaster 3.4 Ltr Diesel, 13B Bus, BB21, 1/82-10/89 1982-1989Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB26, 11/84-1/93 1984-1993Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB31, 11/89-1/93 1989-1993Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB40R, 1/93-12/96 1993-1996Toyota Coaster 3.4 Ltr Diesel, 3B Bus, BB40R, 1/93-12/96 1993-1996Toyota Coaster 4.0 Ltr Diesel, 2H Bus, HB30, 1/86-6/89 1986-1989Toyota Coaster 4.0 Ltr Diesel, 2H Bus, HB30, 1/86-6/89 1986-1989ORANGE
