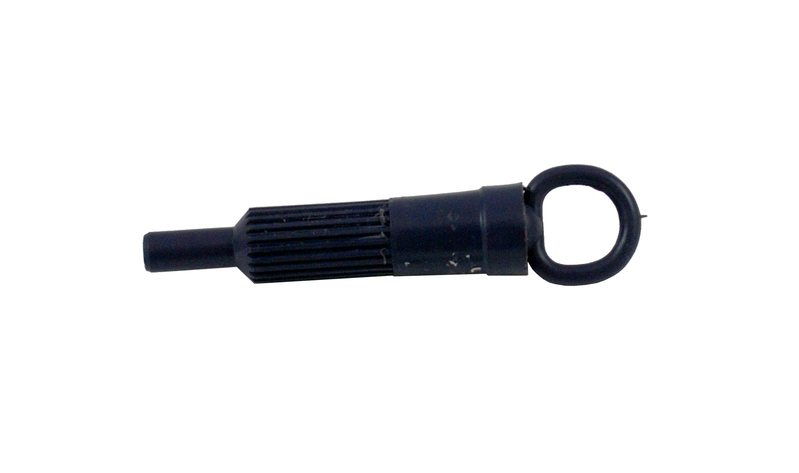

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Holden Nova 1.4 Ltr LE, 8/89-8/91 1989-1991Holden Nova 1.6 Ltr LE, 1/89-8/91 1989-1991Holden Nova 1.4 Ltr LF, 9/91-10/94 1991-1994Holden Nova 1.6 Ltr LF, 9/91-10/94 1991-1994Holden Nova 1.8 Ltr, 7AFE LG, 10/94-5/96 1994-1996Holden Nova 1.6 Ltr, 4AFE LG, 10/94-5/96 1994-1996Lotus Elise 1.8 Ltr VVTL-1, 2ZZ-GE, 141kw 111R, 6 Speed, 2/04-10/06 2004-2006Toyota Carina 1.6 Ltr, 4AGE, 123kw AT210, 8/96-11/01, New Zealand Model 1996-2001Toyota Celica 1.8 Ltr, 1S-U, 74kw SA60, 7/81-7/85 1981-1985Toyota Celica 1.6 Ltr, 2T TA22, 1/71-6/76 1971-1976Toyota Celica 1.6 Ltr, 2T TA23, 1/71-6/76 1971-1976Toyota Celica 1.8 Ltr, 3T-EU TA63R, 5 Speed, 7/81-8/83 1981-1983Toyota Cera 1.5 Ltr, 5E-FE EXY10, 1/95-12/96 1995-1996Toyota Corolla 1.6 Ltr, 4A, 86kw AE71, 10/83-4/85, Jap Model 1983-1985Toyota Corolla 1.6 Ltr, 4A-C, 67kw AE71, 10/83-4/85, Aust Model 1983-1985Toyota Corolla 1.3 Ltr, 2A-C AE80, 4/85-5/89 1985-1989Toyota Corolla 1.5 Ltr, 3A AE81, 5/83-4/87 1983-1987Toyota Corolla 1.6 Ltr, 4A-C AE82, 4/85-5/89, Jap Model 1985-1989Toyota Corolla 1.6 Ltr DOHC, 4A-GE AE82, 1/86-5/89 1986-1989Toyota Corolla 1.6 Ltr, 4A-C AE82, 4/85-5/89, Aust Model 1985-1989Toyota Corolla 1.4 Ltr, 6A-FC, 60kw AE90, 5/91-11/92 1991-1992Toyota Corolla 1.4 Ltr, 6A-FC, 60kw AE90, 6/89-5/91 1989-1991Toyota Corolla 1.5 Ltr, 5A-F AE91, 5/87-5/89 1987-1989Toyota Corolla 1.6 Ltr, 4A-FC AE92, 6/91-9/94 1991-1994Toyota Corolla 1.6 Ltr EFI, 4A-GE AE92, 6/89-9/94 1989-1994Toyota Corolla 1.6 Ltr EFI, 4A-GE AE92, 1/90-12/92 1990-1992Toyota Corolla 1.6 Ltr, 4A-FC AE92, 6/89-5/91 1989-1991Toyota Corolla 1.6 Ltr EFI, 4A-GE AE93 Seca, 7/91-9/94 1991-1994Toyota Corolla 1.6 Ltr, 4A AE94, 5/91-12/94 1991-1994Toyota Corolla 1.6 Ltr, 4A AE94, 6/89-7/91 1989-1991Toyota Corolla 1.2 Ltr, 3K KE30, rare 5 Speed, 8/74-6/76 1974-1976Toyota Corolla 1.2 Ltr, 3K KE35, rare 5 Speed, 8/74-6/76 1974-1976Toyota Corolla 1.2 Ltr, 3K KE36, rare 5 Speed, 8/74-6/76 1974-1976Toyota Corolla 1.2 Ltr, 3K KE38, rare 5 Speed, 8/74-6/76 1974-1976Toyota Corolla 1.2 Ltr, 3K KE65, rare 5 Speed, 1/74-12/85 1974-1985Toyota Corolla 1.5 Ltr, 1NZ-FE, 80kw NZE161, 7/12-, New Zealand Model 2012Toyota Corolla 1.8 Ltr, 13T T18, 1/79-12/83 1979-1983Toyota Corolla 1.8 Ltr, 13T TE70, 1/79-12/83 1979-1983Toyota Corolla II 1.3 Ltr, 2E EL30, 5/86-12/90, New Zealand Model 1986-1990Toyota Corolla II 1.3 Ltr DOHC, 4E-FE EL41, 9/90-12/94 1990-1994Toyota Corolla II 1.3 Ltr DOHC, 4E-FE EL51, 9/94-12/98 1994-1998Toyota Corona 1.5 Ltr, 2R RT40, 1/64-12/68 1964-1968Toyota Corona 1.5 Ltr, 2R RT40, 1/68-12/69 1968-1969Toyota Corona 1.5 Ltr, 2R RT56, 1/64-12/68 1964-1968Toyota Corona 1.5 Ltr, 2R RT56, 1/68-12/69 1968-1969Toyota Corona 1.8 Ltr, 3T TT141, 1/82-8/85 1982-1985Toyota Corona Mk II 1.9 Ltr, 8R RT72, 1/69-12/70 1969-1970Toyota Corona Mk II 1.9 Ltr, 8R RT72S, 1/68-12/71 1968-1971Toyota Crown 2.0 Ltr, M MS41, 1/66-12/67 1966-1967Toyota Crown 2.3 Ltr, 2M MS45, 1/67-12/71 1967-1971Toyota Crown 2.0 Ltr, M MS46, 1/66-12/67 1966-1967Toyota Crown 2.3 Ltr, 2M MS47, 1/67-12/71 1967-1971Toyota Crown 2.3 Ltr, 2M MS53, 1/67-12/71 1967-1971Toyota Crown 2.3 Ltr, 2M MS55, 1/67-12/71 1967-1971Toyota Dyna 1.9 Ltr Petrol, 3R RK170, 1/64-12/65 1964-1965Toyota Dyna 1.9 Ltr Petrol, 3R RK170, 1/65-1/72 1965-1972Toyota Dyna 2.0 Ltr Petrol, 5R RK171, 1/65-1/72 1965-1972Toyota Dyna 2.0 Ltr Petrol, 5R, 95hp RU10, 1/65-1/72 1965-1972Toyota Dyna 2.0 Ltr Petrol, 5R, 95hp RU12, 1/65-1/72 1965-1972Toyota Dyna 2.0 Ltr Petrol, 5R, 95hp RU15, 1/65-1/72 1965-1972Toyota Dyna 2.0 Ltr Petrol, 5R, 95hp RU18, 1/65-1/72 1965-1972Toyota Echo 1.3 Ltr EFI, 2NZ-FE, 63kw NCP10, 5 Speed, 9/99-1/05, Check Size 1999-2005Toyota Echo 1.3 Ltr EFI, 2NZ-FE, 63kw NCP10, 5 Speed, 8/02-1/05, Check Size 2002-2005Toyota Echo 1.5 Ltr EFI, 1NZ-FE, 82kw NCP12, 5 Speed, 8/99-12/05 1999-2005Toyota Echo 1.5 Ltr DOHC, 1NZ-FE, 82kw NCP13, 5 Speed, 10/00-1/05 2000-2005Toyota Hiace 1.5 Ltr, 2R RH10, 10/67-12/71 1967-1971Toyota Hiace 1.5 Ltr, 2R RH15, 10/67-12/71 1967-1971Toyota Hilux 1.5 Ltr, 2R RN10, 1/68-12/71 1968-1971Toyota Hilux 1.5 Ltr, 2R RN15, 1/68-12/71 1968-1971Toyota MR2 1.6 Ltr, 4A-GEL AW11, 6/85-12/89 1985-1989Toyota MR2 1.6 Ltr, 4A-G AW11, 6/84-6/85 1984-1985Toyota Paseo 1.5 Ltr, 5E-FE EL44R, 1/91-5/95 1991-1995Toyota Paseo 1.5 Ltr, 5E-FE EL54R, 1/91-5/95 1991-1995Toyota Sprinter 1.3 Ltr, 2A-C AE80, 4/85-5/89 1985-1989Toyota Sprinter 1.5 Ltr, 3A AE81, 5/83-4/87 1983-1987Toyota Sprinter 1.6 Ltr, 4A-G AE86, 7/83-4/87 1983-1987Toyota Sprinter 1.6 Ltr EFI, 4A-GE AE92, 6/89-9/94 1989-1994Toyota Sprinter 1.6 Ltr EFI, 4A-GE AE92, 1/90-12/92 1990-1992Toyota Sprinter 1.3 Ltr, 2E-LU EE80, 4/85-4/87 1985-1987Toyota Sprinter 1.3 Ltr, 2E EE106, 9/91-1/94 1991-1994Toyota Starlet 1.3 Ltr Turbo, 4EFE 1/90-12/95 1990-1995Toyota Starlet 1.3 Ltr SOHC, 2E-EL EP71, 10/84-12/89 1984-1989Toyota Starlet 1.3 Ltr Turbo, 2E-T EP71T, 1/86-12/89 1986-1989Toyota Starlet 1.0 Ltr SOHC, 1E-L EP80, 1/90-12/93 1990-1993Toyota Starlet 1.3 Ltr SOHC, 2E-L EP81, 1/89-12/93 1989-1993Toyota Starlet 1.3 Ltr Turbo, 4EFTE EP82, 12/89-1/96 1989-1996Toyota Starlet 1.3 Ltr, 2E EP90, 1/95-12/00, New Zealand Model 1995-2000Toyota Starlet 1.3 Ltr, 4EFE EP91R, 1/96-3/99 1996-1999Toyota Starlet 1.5 Ltr Diesel, 1N NP70, 1/86-12/90 1986-1990Toyota Stout 1.9 Ltr, 3R-B RK100, 1/64-12/67 1964-1967Toyota Stout 2.0 Ltr, 5R RK101, 1/67-12/74 1967-1974Toyota Tercel 1.5 Ltr, 3A AL25, 1/83-9/90 1983-1990Toyota Tercel 1.5 Ltr Turbo, 3E-TE EL31, 9/86-12/88 1986-1988Toyota Tercel 1.5 Ltr Turbo, 1N-T NL30, 5/86-12/88 1986-1988Toyota Toyoace 1.5 Ltr, 2R PK40, 1/64-12/67 1964-1967Toyota Toyoace 1.5 Ltr, 2R PK41, 1/64-12/67 1964-1967Toyota Yaris 1.3 Ltr MPFI, 2NZ-FE, 63kw NCP90R , 5 Speed, 8/05- 2005Toyota Yaris 1.5 Ltr MPFI, 1NZ-FE NCP91R, 5 Speed, 8/05-10/11 2005-2011Toyota Yaris 1.3 Ltr MPFI, 2NZ-FE, 63kw NCP92R, 5 Speed, 8/05- 2005Toyota Yaris 1.5 Ltr MPFI, 1NZ-FE NCP93R, 5 Speed, 8/05- 2005Toyota Yaris 1.3 Ltr MPFI, 2NZ-FE, 63kw NCP130R, 5 Speed, 11/11- 2011Toyota Yaris 1.5 Ltr MPFI, 1NZ-FE, 80kw NCP131R, 5 Speed, 11/11- 2011Toyota Corolla 1.3 Ltr, 53KW EE090, 5/87-6/91, New Zealand Only 1987-1991Toyota Corolla 1.3 Ltr EE100, 1/92-12/97, New Zealand Only 1992-1997Toyota Corolla 1.3 Ltr, 4E-FE, 65KW EE111, 5/95-7/00, New Zealand Only 1995-2000Toyota Corolla 1.5 Ltr, 5E-FE, 70KW EL53, 9/94-8/99, New Zealand Only 1994-1999Toyota Corolla 1.5 Ltr, 1NZ-FE, 81KW NZE121, 8/00-9/06, New Zealand Only 2000-2006Toyota Corolla 1.5 Ltr, 1NZ-FE NZE140, 1/07-12/08, New Zealand Only 2007-2008Toyota Sprinter 1.3 Ltr, 4E-FE, 65KW EE111, 5/95-7/00, New Zealand Only 1995-2000Toyota Caldina 1.5 Ltr, 5E-FE ET196R, 11/92-6/02, New Zealand Model 1992-2002Toyota Carib 1.5 Ltr, 3A AL25R, 8/84-10/89 1984-1989Toyota Carina 1.5 Ltr, 3AU AA60R, 9/81-12/87 1981-1987Toyota Carina 1.5 Ltr, 3ALU AT150R, 5/84-4/88 1984-1988Toyota Carina 1.5 Ltr, 3E ET176R, 5/88-11/89 1988-1989Toyota Carina 1.5 Ltr, 3E ET176R, 11/89-11/92 1989-1992Toyota Carina 1.5 Ltr, 5KJ KA67R, 8/83-4/88 1983-1988Toyota Carina 1.5 Ltr, 5A-F AT170R, 5/88-4/90 1988-1990Toyota Carina 1.5 Ltr, 5A-FE AT170R, 5/90-7/92 1990-1992Toyota Carina 1.5 Ltr, 5A-FE AT192R, 8/92-7/96 1992-1996Toyota Carina 1.5 Ltr, 5A-FE AT212R, 8/96-11/01 1996-2001Toyota Carina 1.6 Ltr, 4A-GEU AA63R, 5 Speed, 5/83-7/85 1983-1985Toyota Carina 1.6 Ltr, 4A-EL AT151R, 1/84-12/88 1984-1988Toyota Carina 1.6 Ltr, 4A-GELU AT160R, 8/85-4/88 1985-1988Toyota Carina 1.6 Ltr, 4A-FHE, 82kw AT171R, 4 Speed, 5/88-10/89 1988-1989Toyota Carina 1.6 Ltr, 4A-FHE, 82kw AT171R, 4 Speed, 11/89-7/92 1989-1992Toyota Carina 1.6 Ltr, 4A-GE, 104kw AT171R, 5 Speed, 5/88-10/89 1988-1989Toyota Carina 1.6 Ltr, 4A-GE, 104kw AT171R, 5 Speed, 11/89-7/92 1989-1992Toyota Carina 1.6 Ltr, 4A-FE, 78kw AT190R, 8/92-7/96 1992-1996Toyota Carina 1.8 Ltr, 1SU, 74kw SA60R, 2/82-4/88 1982-1988Toyota Celica 1.6 Ltr, 4A-GEU AA63R, 5 Speed, 8/83-7/85 1983-1985Toyota Celica 1.6 Ltr, 4A-GELU AT160R, 5 Speed, 8/85-8/87 1985-1987Toyota Celica 1.6 Ltr, 2T TA40R, 5 Speed, 8/77-6/81 1977-1981Toyota Celica 1.8 Ltr, 3T-E TA46R, 4 Speed, 1/79-12/82 1979-1982Toyota Celica 1.8 Ltr, 3T-E TA47R, 4 Speed, 1/79-12/81 1979-1981Toyota Caldina 1.8 Ltr, 7AFE, 85kw AT191, 1/96-8/97, New Zealand Model 1996-1997Toyota Caldina 1.8 Ltr, 7AFE, 85kw AT211, 9/97-8/02, New Zealand Model Only 1997-2002Toyota Carina 1.8 Ltr, 7AFE, 85kw AT191, 8/94-7/96, New Zealand Model 1994-1996Toyota Carina 1.8 Ltr, 7AFE, 85kw AT211, 1/96-11/01, New Zealand Model 1996-2001Toyota Celica 1.8 Ltr VVTL-1, 2ZZ-GE, 140kw ZR, 6 Speed, 1/99-3/06 1999-2006Toyota Celica 1.8 Ltr VVTL-1, 2ZZ-GE, 140kw ZZT231R, 3/04-3/06 2004-2006Toyota Corolla 1.5 Ltr EFI, 5A-FE AE91, 5/87-5/89 1987-1989Toyota Corolla 1.8 Ltr, 7A-FE AE92, 10/92-5/94 1992-1994Toyota Corolla 1.6 Ltr EFI, 4A-FE AE93 Seca, 7/91-12/92 1991-1992Toyota Corolla 1.8 Ltr, 7AFE AE93 Seca, 10/92-5/94 1992-1994Toyota Corolla 1.5 Ltr DOHC, 5A-FE AE100, 1/91-12/97 1991-1997Toyota Corolla 1.6 Ltr EFI, 4A-FE, 85kw AE101, 9/94-4/98 1994-1998Toyota Corolla 1.8 Ltr 16V EFI, 7A-FE, 88kw AE102, 9/94-11/99 1994-1999Toyota Corolla 1.6 Ltr DOHC, 4A-FE AE111, 1/95-12/01 1995-2001Toyota Corolla 1.8 Ltr DOHC, 7A-FE AE112, 10/98-11/01 1998-2001Toyota Corolla 1.6 Ltr, 4A-FE AEA10, 1/97-4/98 1997-1998Toyota Corolla 1.8 Ltr, 7A-FE AEA20, 1/97-11/01 1997-2001Toyota Corolla 1.8 Ltr DOHC, 1ZZ-FE ZZE122, 5 Speed, 5/04-4/07 2004-2007Toyota Corolla 1.8 Ltr DOHC, 2ZZ-FE ZZE123, 6 Speed, 1/01-4/04 2001-2004Toyota Corona 1.8 Ltr, 7AFE, 85kw AT211, 1/96-11/01, New Zealand Model 1996-2001Toyota MR2 1.8 Ltr VVTL-1, 1ZZ-FE, 103kw ZZW30R, 5 Speed, 10/00-10/02 2000-2002ORANGE
