Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.

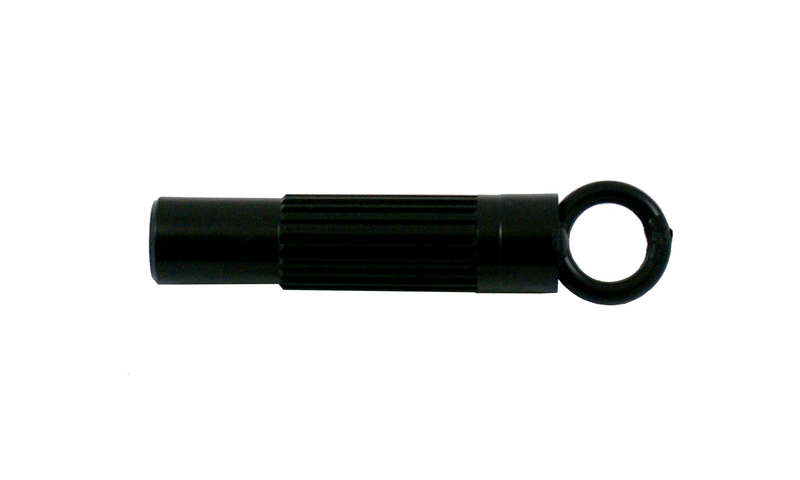

Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not Included
Fitment:Holden Apollo 2.0 Ltr, 3S JK, 8/89-7/91 1989-1991Holden Apollo 2.2 Ltr 16V, 5S JM, 3/93-8/95 1993-1995Holden Apollo 2.2 Ltr 16V, 5S-FE JP, 9/95-10/96 1995-1996Toyota Avensis 2.0 Ltr, 3S-FE ST220, 10/97-6/00 1997-2000Toyota Caldina 2.0 Ltr Diesel, 2C CT190, 1/92-12/97 1992-1997Toyota Caldina 2.0 Ltr Diesel, 2C CT196, 1/92-12/97 1992-1997Toyota Caldina 1.8 Ltr, 4SFE, 93kw ST190, 11/92-12/95, New Zealand Model 1992-1995Toyota Camry-Vienta 2.2 Ltr, 5SFE, 95kw SDV10, 2/93-8/97 1993-1997Toyota Camry-Vienta 2.0 Ltr, 2S SV11, 1/83-12/89 1983-1989Toyota Camry-Vienta 1.8 Ltr, 1S SV20 Series I, 1/83-12/89 1983-1989Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV20 Series I, 1/87-12/93 1987-1993Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV21, 1/87-12/93 1987-1993Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV22, 1/87-12/93 1987-1993Toyota Camry-Vienta 1.8 Ltr, 4SFE, 85kw SV30, 7/90-6/94, New Zealand Model 1990-1994Toyota Camry-Vienta 2.0 Ltr SV32, 7/90-6/94, New Zealand Model 1990-1994Toyota Camry-Vienta 1.8 Ltr, 4SFE, 93kw SV40, 7/94-6/98, New Zealand Model 1994-1998Toyota Camry-Vienta 2.2 Ltr, 5SFE SXV10, 12/93-12/96 1993-1996Toyota Camry-Vienta 2.2 Ltr, 5S-FE SXV15, 1/93-12/96 1993-1996Toyota Camry-Vienta 2.2 Ltr, 5S-FE SXV20, 8/97-9/02 1997-2002Toyota Carina 1.8 Ltr, 4SFE, 93kw ST190, 8/90-7/94, New Zealand Model 1990-1994Toyota Carina 1.8 Ltr, 4SFE, 93kw ST200, 10/93-12/98, New Zealand Model 1993-1998Toyota Celica 2.0 Ltr DOHC, 3SGE ST162, 1/86-5/90 1986-1990Toyota Celica 2.0 Ltr DOHC, 3SFE ST162, 1/86-5/90 1986-1990Toyota Celica 2.2 Ltr, 5SFE, 97kw ST184, 5/90-3/94 1990-1994Toyota Celica 2.2 Ltr, 5SFE, 97kw ST184, 11/89-4/90 1989-1990Toyota Celica 2.0 Ltr DOHC, 3S-FE, 129kw ST202, 1/93-12/97 1993-1997Toyota Celica 2.0 Ltr DOHC, 3S-FE, 129kw ST203, 1/93-12/97 1993-1997Toyota Celica 2.2 Ltr, 5SFE, 100kw ST204R, 3/94-11/99 1994-1999Toyota Corolla 1.8 Ltr Diesel, 1C-L CE80, 5/83-4/87 1983-1987Toyota Corolla 1.8 Ltr Diesel, 1C CE96V, 1/87-12/91 1987-1991Toyota Corona 2.0 Ltr Diesel, 2C CT150, 10/83-12/87 1983-1987Toyota Corona 1.8 Ltr DOHC, 4S-FI ST170, 12/87-11/89 1987-1989Toyota Corona 2.0 Ltr DOHC EFI, 3S ST171, 5/90-12/92, New Zealand Model 1990-1992Toyota Corona 2.0 Ltr DOHC, 3S-FC ST171, 5/90-12/92, New Zealand Model 1990-1992Toyota Corona 2.0 Ltr DOHC EFI, 3S ST171, 12/87-5/90, New Zealand Model 1987-1990Toyota Corona 1.8 Ltr, 4SFE, 93KW ST190, 2/92-12/95, New Zealand Model 1992-1995Toyota Corona 1.8 Ltr, 4SFE, 93kw ST200, 10/93-12/98, New Zealand Model 1993-1998Toyota Curren 2.0 Ltr, 3SFE, 104kw ST206, 1/94-8/99, New Zealand Model 1994-1999Toyota Curren 1.8 Ltr, 4SFE, 93kw ST208, 10/95-8/99, New Zealand Model 1995-1999Toyota MR2 2.0 Ltr, 3S-GE SW20, 7/90-3/94 1990-1994Toyota MR2 2.0 Ltr, 3S-GE SW20, 3/90-6/90 1990-1990Toyota Sprinter 1.8 Ltr Diesel, 1C-L CE80, 5/83-4/87 1983-1987Toyota Vista 2.0 Ltr TDI, 2C-T CV20, 1/86-12/90 1986-1990Toyota Vista 1.8 Ltr, 4SFE, 85kw SV30, 7/90-6/94, New Zealand Model 1990-1994Toyota Vista 1.8 Ltr, 4SFE, 93kw SV40, 7/94-6/98, New Zealand Model 1994-1998Toyota Corolla 2.0 Ltr Diesel, 2C-III, 54KW CE100, 6/91-7/00, New Zealand Only 1991-2000Toyota Corolla 2.0 Ltr Diesel, 54KW CE106, 9/91-4/98, New Zealand Only 1991-1998Toyota Corona 2.0 Ltr, 3S-FE ST191, 2/92-12/96, New Zealand Only 1992-1996Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE100, 6/91-7/00, New Zealand Only 1991-2000Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE104, 6/91-7/00, New Zealand Only 1991-2000Toyota Sprinter 2.0 Ltr Diesel, 54KW CE106, 9/91-4/98, New Zealand Only 1991-1998Toyota Sprinter 2.0 Ltr Diesel, 54KW CE108, 9/91-4/98, New Zealand Only 1991-1998Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE110, 6/91-7/00, New Zealand Only 1991-2000Toyota Caldina 2.2 Ltr Diesel, 3CE CT197R, 5/98-6/02 1998-2002Toyota Camry-Vienta 2.0 Tdi, 2CT CV11R, 8/85-7/90, New Zealand Model 1985-1990Toyota Camry-Vienta 2.0 Tdi, 2CT CV20R, 8/86-5/90, New Zealand Model 1986-1990Toyota Camry-Vienta 2.0 Tdi, 2CT CV20R, 5/90-7/90 1990-1990Toyota Camry-Vienta 2.0 Tdi, 2CT CV30R, 7/90-6/94 1990-1994Toyota Camry-Vienta 2.0 Tdi, 2CT CV40R, 7/94-6/98 1994-1998Toyota Camry-Vienta 2.0 Ltr, 3S-GELU, 118kw SV12R, 6/84-7/86, New Zealand Model 1984-1986Toyota Carina 1.8 Ltr, 1S-ILU ST150R, 5/84-4/88 1984-1988Toyota Carina 1.8 Ltr, 1S-ILU ST160R, 8/85-5/88 1985-1988Toyota Carina 1.8 Ltr, 4S-FI ST163R, 5/88-8/89 1988-1989Toyota Carina 1.8 Ltr, 4S-FE ST180R, 8/90-9/93 1990-1993Toyota Carina 1.8 Ltr, 4S-FI ST180R, 5/90-7/90 1990-1990Toyota Carina 1.8 Ltr, 4S-FI ST180R, 9/89-5/90 1989-1990Toyota Carina 1.8 Ltr, 4S-FE ST181R, 8/90-9/93 1990-1993Toyota Carina 1.8 Ltr, 4S-FI ST181R, 5/90-7/90 1990-1990Toyota Carina 1.8 Ltr, 4S-FI ST181R, 9/89-5/90 1989-1990Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT170R, 5/90-7/92 1990-1992Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT170R, 5/88-5/90 1988-1990Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT176R, 5/90-11/92 1990-1992Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT176R, 5/88-5/90 1988-1990Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT190R, 8/92-7/96 1992-1996Toyota Carina 2.0 Tdi, 2C-T, 65kw CT210R, 8/96-7/98 1996-1998Toyota Carina 2.0 Ltr, 3S-GELU, 118kw SR162R, 5 Speed, 8/85-8/89 1985-1989Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST182R, 5/90-7/91 1990-1991Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST182R, 9/89-5/90 1989-1990Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST182R, 5/90-9/93 1990-1993Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST182R, 9/89-5/90 1989-1990Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST182R, 8/91-9/93 1991-1993Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST183R, 5/90-7/91 1990-1991Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST183R, 9/89-5/90 1989-1990Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST183R, 5/90-9/93 1990-1993Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST183R, 9/89-5/90 1989-1990Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST183R, 8/91-9/93 1991-1993Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST202R, 5 Speed, 10/93-12/98 1993-1998Toyota Carina 2.0 Ltr, 3S-GE, 134kw ST202R, 5 Speed, 10/93-12/98, Normal Suspension 1993-1998Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST203R, 5 Speed, 10/93-12/98 1993-1998Toyota Carina 2.2 Tdi, 3C-TE, 70kw CT211R, 5 Speed, 8/98-11/01 1998-2001Toyota Celica 1.8 Ltr, 1S-iLU ST160R, 8/85-5/88 1985-1988Toyota Celica 1.8 Ltr, 4S-FI ST163R, 5/88-8/89 1988-1989Toyota Celica 2.0 Ltr, 3S-FE, 96kw ST182R, 10/89-7/90 1989-1990Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST182R, 10/89-9/93 1989-1993Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183C, 5 Speed, 8/90-9/93 1990-1993Toyota Celica 2.0 Ltr, 3S-FE, 92kw ST183R, 10/89-4/90 1989-1990Toyota Celica 2.0 Ltr, 3S-FE, 104kw ST183R, 8/90-9/93 1990-1993Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183R, 10/89-4/90 1989-1990Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183R, 5 Speed, 5/90-9/93 1990-1993Toyota Celica 2.0 Ltr, 3S-FE, 92kw ST183R, 5 Speed, 5/90-7/90 1990-1990ORANGE
