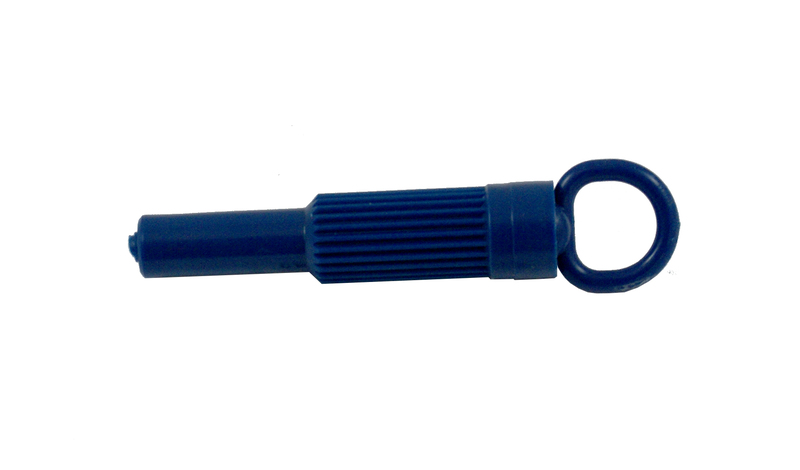

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Chevrolet Luv 1.6 Ltr 4 Cyl KB20, 1/73-12/80 1973-1980Holden Colorado 3.0 Ltr VCDi, 4JJ1-TC, 120kw 5 Speed, 7/08- 2008Holden Frontera 3.2 Ltr 24V, 6VD1, 151kw 4WD, 1/95-6/99 1995-1999Holden Frontera 3.2 Ltr 24V, 6VD1, 151kw 4WD, 7/99-6/04 1999-2004Holden Frontera 2.2 Ltr 16V, X22SE UES 4WD, 1/99-3/00 1999-2000Holden Frontera 2.2 Ltr 16V, X22SE UES 4WD, 4/00-7/02 2000-2002Holden Gemini 1.6 Ltr TC, 3/77-4/78 1977-1978Holden Gemini 1.6 Ltr TD, 4/78-10/79 1978-1979Holden Gemini 1.8 Ltr Diesel TE, 10/79-3/82 1979-1982Holden Gemini 1.6 Ltr TE, 10/79-3/82 1979-1982Holden Gemini 1.8 Ltr Diesel TF, 3/82-4/83 1982-1983Holden Gemini 1.6 Ltr TF, 3/82-4/83 1982-1983Holden Gemini 1.8 Ltr Diesel TG, 4/83-5/85 1983-1985Holden Gemini 1.6 Ltr TG, 4/83-5/85 1983-1985Holden Gemini 1.6 Ltr TX, 3/75-3/77 1975-1977Holden Jackaroo 3.0 Ltr TDI, 4JX1, 118kw U8, 5 Speed, 2/98-9/04 1998-2004Holden Jackaroo 3.5 Ltr, 6VEI, 158kw U8, 5 Speed, 2/98-9/04 1998-2004Holden Jackaroo 3.2 Ltr, 6VD1 UBS L2 4WD, 4/92-2/98 1992-1998Holden Jackaroo 3.1 Ltr TDI, 4JG2 UBS L2 4WD, 4/92-2/98 1992-1998Holden Jackaroo 2.0 Ltr, G200 UBS13 4WD, 11/81-8/85 1981-1985Holden Jackaroo 2.6 Ltr EFI, 4ZE1 UBS17 4WD, 1/88-12/92 1988-1992Holden Jackaroo 3.2 Ltr, 6VD1 UBS25 4WD, 4/92-2/98 1992-1998Holden Jackaroo 3.0 Ltr ICTD, 4JX1 UBS25 4WD, 2/98-9/04 1998-2004Holden Jackaroo 3.5 Ltr, 6VE1 UBS26 4WD, 2/98-9/04 1998-2004Holden Jackaroo 2.2 Ltr Diesel, C223 UBS52 4WD, 11/81-8/85 1981-1985Holden Jackaroo 2.8 Ltr TDI, 4JB1T UBS55 4WD, 1/88-12/92 1988-1992Holden Jackaroo 3.1 Ltr TDI, 4JG2 UBS69 4WD, 4/92-8/97 1992-1997Holden Jackaroo 3.1 Ltr TDI, 4JG2 UBS69, 9/97-2/98 1997-1998Holden Jackaroo 2.3 Ltr, 4ZD1 UBS162 4WD, 1/85-12/93 1985-1993Holden Jackaroo 2.2 Ltr TDI, C223T UBS521 4WD, 1/85-12/88 1985-1988Holden Jackaroo 2.2 Ltr TDI, C223T UBS522 4WD, 1/85-12/88 1985-1988Holden Piazza 2.0 Ltr Turbo YB, 4/86-11/87 1986-1987Holden Rodeo 2.5 Ltr Diesel, 4JA1 FR54, 1/85-12/90 1985-1990Holden Rodeo 2.8 Ltr Diesel, 4JB1 FR54, 1/85-12/90 1985-1990Holden Rodeo 1.6 Ltr, G161 KB20, 1/73-12/82 1973-1982Holden Rodeo 2.0 Ltr, G200 KB21, 1/84-12/85 1984-1985Holden Rodeo 1.6 Ltr, G161 KB21, 1/73-12/82 1973-1982Holden Rodeo 1.6 Ltr, G161 KB25, 1/73-12/82 1973-1982Holden Rodeo 1.6 Ltr, G161 KB26, 1/73-12/82 1973-1982Holden Rodeo 2.0 Ltr, G200 KB27 4WD, 1/86-12/88 1986-1988Holden Rodeo 2.0 Ltr, G200 KB27, 1/81-12/86 1981-1986Holden Rodeo 1.8 Ltr, G180 KB27, 1/81-12/86 1981-1986Holden Rodeo 2.0 Ltr, G200 KB28 4WD, 1/86-12/88 1986-1988Holden Rodeo 1.8 Ltr, G180 KB28, 1/81-12/86 1981-1986Holden Rodeo 2.0 Ltr, G200 KB28, 1/81-12/86 1981-1986Holden Rodeo 2.3 Ltr, 4ZD1 KB29 (incl 4WD), 1/88-12/93 1988-1993Holden Rodeo 1.6 Ltr, G161 KB40, 1/73-12/82 1973-1982Holden Rodeo 1.6 Ltr, G161 KB41, 1/73-12/82 1973-1982Holden Rodeo 2.0 Ltr, G200 KB42 4WD, 1/86-12/88 1986-1988Holden Rodeo 1.8 Ltr, G180 KB42, 1/81-12/86 1981-1986Holden Rodeo 2.0 Ltr, G200 KB42, 1/81-12/86 1981-1986Holden Rodeo 2.0 Ltr, G200 KB43 4WD, 1/86-12/88 1986-1988Holden Rodeo 1.8 Ltr, G180 KB43, 1/81-12/86 1981-1986Holden Rodeo 2.0 Ltr, G200 KB43, 1/81-12/86 1981-1986Holden Rodeo 1.6 Ltr, G161 KB46, 1/73-12/82 1973-1982Holden Rodeo 2.0 Ltr, G200 KB48, 1/84-12/87 1984-1987Holden Rodeo 2.3 Ltr, 4ZD1 KB49 (incl 4WD), 1/88-12/93 1988-1993Holden Rodeo 2.0 Ltr Diesel, C190 KBD20, 1/77-12/82 1977-1982Holden Rodeo 2.0 Ltr Diesel, C190 KBD21, 1/77-12/82 1977-1982Holden Rodeo 2.0 Ltr Diesel, C190 KBD25, 1/77-12/82 1977-1982Holden Rodeo 2.0 Ltr Diesel, C190 KBD26, 1/77-12/82 1977-1982Holden Rodeo 2.2 Ltr Diesel, C223 KBD27, 1/81-12/88 1981-1988Holden Rodeo 2.2 Ltr Diesel, C223 KBD28, 1/81-12/88 1981-1988Holden Rodeo 2.0 Ltr Diesel, C190 KBD40, 1/77-12/82 1977-1982Holden Rodeo 2.0 Ltr Diesel, C190 KBD41, 1/77-12/82 1977-1982Holden Rodeo 2.2 Ltr Diesel, C223 KBD42, 1/81-12/88 1981-1988Holden Rodeo 2.2 Ltr Diesel, C223 KBD43, 1/81-12/88 1981-1988Holden Rodeo 2.0 Ltr Diesel, C190 KBD46, 1/77-12/82 1977-1982Holden Rodeo 2.2 Ltr Diesel, C223 KBD47, 1/81-12/88 1981-1988Holden Rodeo 2.6 Ltr EFI, 4ZE1 R7, 1/97-6/98 1997-1998Holden Rodeo 2.8 Ltr TDI, 4JB1T R7, 1/97-6/98 1997-1998Holden Rodeo 3.2 Ltr V6, 6VD1 R7, 2/98-6/98 1998-1998Holden Rodeo 3.0 Ltr TDI, 4JH1T R9, 4/02-2/03 2002-2003Holden Rodeo 2.8 Ltr TDI, 4JB1T R9, 6/98-1/01 1998-2001Holden Rodeo 3.2 Ltr V6, 6VD1 R9, 6/98-2/03 1998-2003Holden Rodeo 3.0 Ltr TDI, 4JH1T R9, 12/01-4/02 2001-2002Holden Rodeo 2.2 Ltr 8V EFI R9, 6/98-1/01 1998-2001Holden Rodeo 2.8 Ltr TDI, 4JB1T, 74kw R9, 5 Speed, 1/01-2/03 2001-2003Holden Rodeo 3.0 Ltr ICTD, 4JH1TC, 96kw RA, 2/03-1/07 2003-2007Holden Rodeo 3.0 Ltr ICTD, 4JJ1 RA, 3/07-6/08 2007-2008Holden Rodeo 3.5 Ltr, 6VE1, 147kw RA V6, 2/03-12/05 2003-2005Holden Rodeo 3.2 Ltr V6, 6VD1 TF (incl 4WD), 6/98-2/03 1998-2003Holden Rodeo 2.6 Ltr, 4ZE1 TFR17 (incl 4WD), 1/88-6/98 1988-1998Holden Rodeo 2.2 Ltr 8V MPFI, C22NE TFR17 (incl 4WD), 6/98-1/01 1998-2001Holden Rodeo 2.8 Ltr TDI, 4JB1T TFR55, 1/90-2/01 1990-2001Holden Rodeo 2.8 Ltr Diesel, 4JB1 TFR55, 1/90-2/01 1990-2001Holden Rodeo 2.6 Ltr, 4ZE1 TFS17 (incl 4WD), 1/88-6/98 1988-1998Holden Rodeo 2.2 Ltr 8V MPFI, C22NE TFS17 (incl 4WD), 6/98-1/01 1998-2001Holden Rodeo 2.8 Ltr Diesel, 4JB1 TFS54, 1/85-12/90 1985-1990Holden Rodeo 2.5 Ltr Diesel, 4JA1 TFS54, 1/85-12/90 1985-1990Holden Rodeo 2.8 Ltr TDI, 4JB1T TFS55, 1/90-2/01 1990-2001Holden Shuttle 2.0 Ltr 1/82-12/90 1982-1990Holden Shuttle 1.8 Ltr 1/82-12/90 1982-1990Holden Shuttle 2.0 Ltr Diesel 1/82-12/91 1982-1991Honda Horizon 3.1 Ltr Diesel, 4JG2 UBS69, 1/94-12/97 1994-1997Honda Horizon 3.1 Ltr TDI, 4JG2-T UBS69, 1/94-12/97 1994-1997Honda Jazz (NZ Model) 3.1 Ltr Diesel, 4JG2 UCS69, 1/92-12/96 1992-1996Isuzu Bighorn 3.2 Ltr, 6VD1, 149kw UBS25GW, 12/91-1/98 1991-1998Isuzu Bighorn 2.2 Ltr TDI, C223-T UBS52, 1/85-12/89 1985-1989Isuzu Bighorn 2.2 Ltr Diesel, C223 UBS52, 1/81-12/86 1981-1986Isuzu Bighorn 2.2 Ltr Diesel, C223 UBS52, 1/86-12/90 1986-1990Isuzu Bighorn 2.8 Ltr TDI, 4JB1-T UBS55, 1/87-12/92 1987-1992Isuzu Bighorn 2.8 Ltr Diesel, 4JB1 UBS55, 1/87-12/93 1987-1993Isuzu Bighorn 3.1 Ltr Diesel, 4JG1/2 UBS68, 1/92-12/96 1992-1996Isuzu Bighorn 3.1 Ltr Diesel, 4JG1/2 UBS69, 1/92-12/96 1992-1996Isuzu D-Max 3.0 Ltr VCDi, 4JJ1-TC, 120kw 5 Speed, 10/08-5/12, Pull Type Clutch Only 2008-2012Isuzu D-Max 3.0L VCDi, 4JJ1-TCX, 130kw TF, 5 Speed, 6/12- 2012Isuzu Elf 3.1 Ltr, 4JG2 NHR69E, 1/93-12/00, New Zealand Model 1993-2000Isuzu Elf 150 Series 1.6 Ltr Petrol KA40, 1/72-12/79 1972-1979Isuzu Elf 150 Series 1.6 Ltr Petrol KA41, 1/72-12/79 1972-1979Isuzu Elf 150 Series 1.6 Ltr Petrol KA51, 1/72-12/79 1972-1979Isuzu Elf 150 Series 2.0 Ltr KAD41, MSC, 10/79-12/84 1979-1984Isuzu Elf 150 Series 2.0 Ltr KAD41, MSG, 1/77-12/84 1977-1984Isuzu Elf 150 Series 2.4 Ltr KAD42, 11/79-12/84 1979-1984Isuzu Elf 150 Series 2.0 Ltr KAD51, MSC, 1/79-12/84 1979-1984Isuzu Elf 150 Series 2.0 Ltr KAD51, MSG, 1/77-12/84 1977-1984Isuzu Elf 150 Series 2.4 Ltr KAD52, 1/79-12/84 1979-1984Isuzu Elf 150 Series 2.5 Ltr NHR541, 6/84-12/88 1984-1988Isuzu Elf 150 Series 2.5 Ltr NHR542, 1/84-12/88 1984-1988Isuzu Elf 150 Series 2.5 Ltr, 4JA1 NHR54C, 1/88-12/90 1988-1990Isuzu Elf 150 Series 2.8 Ltr, 4JB1 NHR55E, 1/88- 1988Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT15, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT15, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT24, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT24, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT25, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT25, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT26, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT26, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT36, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT36, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 KT45, 7/80-12/84 1980-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC1 KT45, 7/80-12/84 1980-1984Isuzu Elf 250 Series 2.8 Ltr, 4JB1 NKR55, 1/84-12/03, New Zealand Model 1984-2003Isuzu Elf 250 Series 2.4 Ltr TLD1, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD1, 11/78-5/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD1, 10/78-12/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD2, 11/78-5/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD2, 11/78-12/84 1978-1984Isuzu Elf 250 Series 2.4 Ltr TLD2, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD3, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.4 Ltr TLD3, 11/78-5/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD3, 11/78-12/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD4, 11/78-12/84 1978-1984Isuzu Elf 250 Series 2.4 Ltr TLD4, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD4, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD5, 11/78-5/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD5, 11/78-12/84 1978-1984Isuzu Elf 250 Series 2.4 Ltr TLD5, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.4 Ltr TLD6, 11/78-5/84 1978-1984Isuzu Elf 250 Series 2.8 Ltr, 4BA1 TLD6, 11/78-5/84 1978-1984Isuzu Elf 250 Series 3.3 Ltr, 4BC2 TLD6, 11/78-12/84 1978-1984Isuzu Fargo 2.0 Ltr TDI, 4FC1-T WFR51, 1/83-12/87 1983-1987Isuzu Fargo 2.2 Ltr Diesel, 4FD1 WFR53, 1/83-12/89 1983-1989Isuzu Fargo 2.4 Ltr Diesel, 4FG1 WFR62, 1/88-12/92 1988-1992Isuzu Fargo 2.0 Ltr Diesel, 4FC1 WFS51, 1/85-12/89 1985-1989ORANGE
