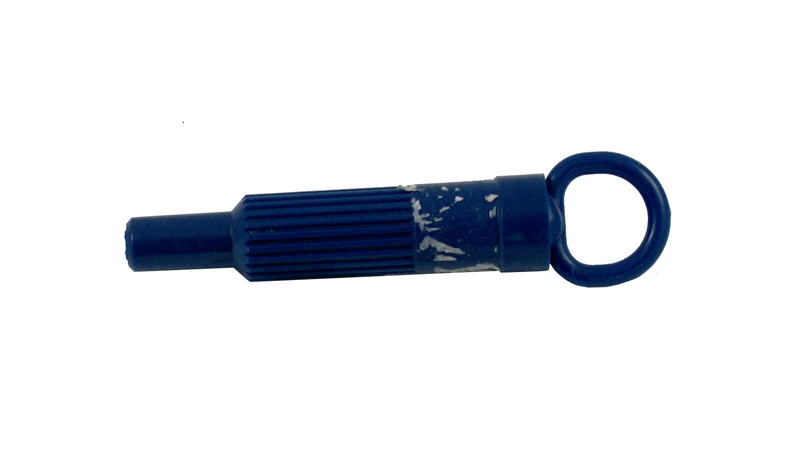

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Asia Rocsta 2.2 Ltr Diesel, JD-R AM102 JD-R, 1/93-2/02 1993-2002Asia Rocsta 1.8 Ltr, F8, 63kw AM102 JS-R, 1/93-2/00 1993-2000Asia Rocsta 2.0 Ltr JDR, 4/94-12/97 1994-1997Eunos Eunos 300 1.8 Ltr, F8 MA8PE, 10/89- 1989Eunos Eunos 300 2.0 Ltr, FE MAEPE, 10/89- 1989Eunos Eunos 30X 1.8 Ltr V6, K8 EC1081, 1/91-12/93 1991-1993Eunos Eunos 30X 1.8 Ltr V6, K8 EC1082, 11/93-12/98 1993-1998Eunos Eunos 500 1.8 Ltr V6, K8ZE, 99kw CA8PE, 11/92-9/96 1992-1996Eunos Eunos 500 2.0 Ltr V6, KF CAEPE, 2/92-12/93 1992-1993Ford Capri 1.6 Ltr DOHC, Turbo B6T SC, 4/92-6/93 1992-1993Ford Capri 1.6 Ltr DOHC, Turbo B6T SE, 6/93-11/94 1993-1994Ford Courier 2.0 Ltr, MA 1/81-12/84 1981-1984Ford Courier 1.8 Ltr 1/80-12/84, 37mm Bearing ID 1980-1984Ford Courier 2.2 Ltr Diesel, R2 1/85-12/96 1985-1996Ford Courier 2.2 Ltr Diesel, S2 1/81-12/85 1981-1985Ford Courier 2.0 Ltr, FE 1/85-12/92 1985-1992Ford Courier 1.8 Ltr 1/78-12/80 1978-1980Ford Courier 2.5 Ltr Diesel, WL PD, 5/96-2/99 1996-1999Ford Econovan 2.2 Ltr Diesel, S2 1/81-12/84 1981-1984Ford Econovan 2.0 Ltr 1/84-2/88 1984-1988Ford Econovan 2.2 Ltr Diesel, R2 1/84-2/88 1984-1988Ford Econovan 1.8 Ltr 1/84-2/88 1984-1988Ford Econovan 2.2 Ltr 1/88-12/88 1988-1988Ford Econovan 2.0 Ltr, F8 JG MWB, 5 Speed, 2/97-10/99 1997-1999Ford Econovan 2.0 Ltr, F8 JG SWB, 5 Speed, 2/97-10/99 1997-1999Ford Econovan 2.0 Ltr, F8 JH MWB, 5 Speed, 10/99-1/03 1999-2003Ford Econovan 2.0 Ltr, F8 JH SWB, 5 Speed, 10/99-1/03 1999-2003Ford Econovan 2.0 Ltr, F8, 71kw MWB, 5 Speed, 1/03-1/06 2003-2006Ford Econovan 2.5 Ltr Diesel, WL SG, 1/95-12/97 1995-1997Ford Econovan 1.6 Ltr SGMB, 1/79-12/84, 35mm Bearing ID 1979-1984Ford Econovan 1.6 Ltr SGMB, 1/79-12/84, 40mm Bearing ID 1979-1984Ford Econovan 1.6 Ltr SGMB, 1/79-12/84, 36mm Bearing ID 1979-1984Ford Econovan 2.2 Ltr Spectron, 1/88-12/88 1988-1988Ford Econovan 2.0 Ltr, F8, 67kw SWB, 5 Speed, 1/03-1/06 2003-2006Ford Econovan 2.0 Ltr SWB, 3/88-2/96 1988-1996Ford Econovan 1.8 Ltr SWB, 3/88-2/96 1988-1996Ford Laser 1.5 Ltr Turbo, E5T KB, 3/83-10/85 1983-1985Ford Laser 1.6 Ltr Turbo, B6T KE, 10/87-12/90 1987-1990Ford Laser 1.6 Ltr Turbo, B6T KE TX3, 10/87-4/90 1987-1990Ford Laser 1.6 Ltr Turbo, B6T KE TX3 4WD, 10/87-4/90 1987-1990Ford Laser 1.8 Ltr DOHC, BPC KF, 3/90-9/91 1990-1991Ford Laser 1.8 Ltr DOHC, BPC KF TX3, 4/90-10/91 1990-1991Ford Laser 1.8 Ltr 16V Turbo, BP(H) KF, 3/90-9/91 1990-1991Ford Laser 1.8 Ltr 16V Turbo, BP(H) KF TX3 4WD, 6/90-10/91 1990-1991Ford Laser 1.8 Ltr DOHC, BPC KH, 10/91-9/94 1991-1994Ford Laser 1.8 Ltr DOHC, BPC KH TX3, 10/91-10/94 1991-1994Ford Laser 1.8 Ltr 16V Turbo, BP(H) KH, 10/91-9/94 1991-1994Ford Laser 2.0 Ltr EFI, FS KQ, 4/01-10/02 2001-2002Ford Probe 2.5 Ltr 24V MPFI, V6 KL, 121kw ST, 7/94-12/95 1994-1995Ford Probe 2.5 Ltr 24V MPFI, V6 KL, 121kw SU, 3/96-5/97 1996-1997Ford Probe 2.5 Ltr 24V MPFI, V6 KL, 121kw SV, 2/97-1/98 1997-1998Ford Spectron 1.6 Ltr SG, 1/79-12/84, 35mm Bearing ID 1979-1984Ford Spectron 1.6 Ltr SG, 1/79-12/84, 40mm Bearing ID 1979-1984Ford Spectron 1.6 Ltr SG, 1/79-12/84, 36mm Bearing ID 1979-1984Ford Spectron 1.8 Ltr, F8 SGMD, 1/84-2/88 1984-1988Ford Spectron 2.0 Ltr, FE SGME, 1/87-2/88 1987-1988Ford Spectron 2.0 Ltr, FE SGMW, 1/84-2/88 1984-1988Ford Telstar 2.0 Ltr AR, 5/83-2/85 1983-1985Ford Telstar 2.0 Ltr AS, 9/85-9/87 1985-1987Ford Telstar 2.0 Ltr Turbo AS, 9/85-9/87 1985-1987Ford Telstar 2.2 Ltr EFI AT, 10/87-10/89 1987-1989Ford Telstar 2.0 Ltr AT, 10/87-10/89 1987-1989Ford Telstar 2.2 Ltr EFI AV, 1/90-1/92 1990-1992Ford Telstar 2.0 Ltr DOHC AX, 1/92-8/94 1992-1994Ford Telstar 2.5 Ltr DOHC, V6 AX, 1/92-8/94 1992-1994Ford Telstar 2.0 Ltr DOHC AY, 9/94-12/96 1994-1996Ford Telstar 2.5 Ltr DOHC, V6 AY, 9/94-12/96 1994-1996Kia Carens 1.8 Ltr 16V DOHC 7/00-12/01 2000-2001Kia Ceres 2.2 Ltr Diesel, S2 1/94-2/00 1994-2000Kia Ceres 2.4 Ltr Diesel, SC 12/96-2/00 1996-2000Kia Credos 2.0 Ltr 1/99- 1999Kia Credos 2.0 Ltr 1/96-12/99 1996-1999Kia K2700 2.7 Ltr Diesel Mk I, 5 Speed, 10/02- 2002Kia K2700 2.7 Ltr Diesel, J2, 62kw Mk II, 5 Speed, 10/02-2/05 2002-2005Kia Mentor 1.8 Ltr, BF, 65kw 4/98-9/99 1998-1999Kia Mentor 1.5 Ltr, BF, 65kw 5/98-6/00 1998-2000Kia MR 2.0 Ltr 16V, FE 1/96- 1996Kia Pregio 2.7 Ltr Diesel, J2, 62kw 5 Speed, 7/02-7/04 2002-2004Kia Shuma 1.8 Ltr, TE 1/99-5/01 1999-2001Kia Spectra 1.8 Ltr DOHC, TE, 82kw FB, 5 Speed, 5/01-12/03 2001-2003Kia Sportage 2.0 Ltr 16V MPFI, FED, 94kw 5 Speed, 11/96-7/03 1996-2003Mazda 121 1.8 Ltr CD2VC, 1/76-12/78 1976-1978Mazda 121 2.0 Ltr CD5MC, 1/78-12/81 1978-1981Mazda 626 2.0 Ltr, MH CB2MS, 1/79-12/83 1979-1983Mazda 626 2.2 Ltr DOHC Wagon, Estate, 1/92-12/97 1992-1997Mazda 626 2.0 Ltr GC10EP, 1/83-4/87 1983-1987Mazda 626 2.0 Ltr Diesel GC10FP, 1/83-12/87 1983-1987Mazda 626 2.2 Ltr GD10, 4/87-12/91 1987-1991Mazda 626 2.2 Ltr Turbo GD1021, 10/87-12/91 1987-1991Mazda 626 2.2 Ltr DOHC, 120kw GE, 1/92-12/97 1992-1997Mazda 626 2.0 Ltr DOHC, FS, 118kw GE, 1/92-7/97 1992-1997Mazda 626 2.5 Ltr DOHC, V6 KL, 123kw GE, 1/92-7/97 1992-1997Mazda 626 2.0 Ltr, FE GF, 8/97-12/99 1997-1999Mazda 626 2.5 Ltr, V6 KL GT5J, 1/95-12/99 1995-1999Mazda 626 2.0 Ltr, FE GV10, 1/95- 1995Mazda 626 2.2 Ltr GV10, 1/90-12/93 1990-1993Mazda 808 1.6 Ltr 808 AV, 1/77-12/78 1977-1978Mazda 808 1.6 Ltr 808 SN3A, 1/77-12/78 1977-1978Mazda 808 1.6 Ltr 808 SN4V, 1/77-12/78 1977-1978Mazda 929 2.0 Ltr, FE HBEP, 1/83-12/87 1983-1987Mazda 929 2.0 Ltr HBES, 1/83-12/87 1983-1987Mazda 929 2.0 Ltr, MA HBPHE, 1/81-12/83 1981-1983Mazda 929 2.0 Ltr, MA HBSHE, 1/81-12/83 1981-1983Mazda 929 2.0 Ltr LA4, 1/78-12/81 1978-1981Mazda 929 2.0 Ltr LA5, 1/78-12/81 1978-1981Mazda 929 2.0 Ltr LA7, 1/78-12/81 1978-1981Mazda 929 1.8 Ltr LA2, 1/73-12/78 1973-1978Mazda 929 1.8 Ltr LA3, 1/73-12/78 1973-1978Mazda 1500-1800 1.8 Ltr SVA, 1/72-12/73 1972-1973Mazda 323 Astina - Prot‚g‚ 2.0 Ltr 24V, V6 KF BA11F, 7/94-9/98 1994-1998Mazda 323 Astina - Prot‚g‚ 1.5 Ltr Turbo, E5T BD1051, 1/81-12/85 1981-1985Mazda 323 Astina - Prot‚g‚ 1.6 Ltr Turbo BF 4WD, 1/87-12/89 1987-1989Mazda 323 Astina - Prot‚g‚ 1.5 Ltr Turbo BF5P, 1/85-2/87 1985-1987Mazda 323 Astina - Prot‚g‚ 1.5 Ltr, E5 BF5R 4WD, 10/85-11/86, New Zealand Model 1985-1986Mazda 323 Astina - Prot‚g‚ 1.5 Ltr, E5 BFSR 4WD, 1/87-2/89, New Zealand Model 1987-1989Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V EFI BG Astina SP, 3/91-12/94 1991-1994Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V Turbo, BP BG 4WD, 6/89-7/94 1989-1994Mazda 323 Astina - Prot‚g‚ 2.0 Ltr 16V, DOHC, 98kw BJ, 2/01-12/03 2001-2003Mazda Atenza 2.0 Ltr, LFDE, 107kw GY, 6/02-5/05, New Zealand Model 2002-2005Mazda Atenza 2.0 Ltr, LFVE, 111kw GY, 6/05-12/07, New Zealand Model 2005-2007Mazda Axela 2.3 Ltr, L3VE, 127kw BK3P, 10/03-5/09, New Zealand Model Only 2003-2009Mazda Axela 2.0 Ltr, LFDE, 111kw BKEP, 10/03-5/06, New Zealand Model Only 2003-2006Mazda Axela 2.3 Ltr, L3VE, 127kw BK3P, 10/03-5/09, 77mm between Bearing Ears (New Zealand Model Only) 2003-2009Mazda Axela 2.0 Ltr, LFDE, 111kw BKEP, 10/03-5/06, 77mm between Bearing Ears (New Zealand Model Only) 2003-2006Mazda B1600 1.6 Ltr, NA Ute, BNA61, 5 Speed, 1/71-10/77 1971-1977Mazda B1600 1.6 Ltr, NA Ute, PE2N6, 5 Speed, 1/77-12/79 1977-1979Mazda B1600 1.6 Ltr, NA Ute, PE2N7, 5 Speed, 1/77-12/79 1977-1979Mazda B1800 1.8 Ltr, VC Ute, PE2V6, 5 Speed, 8/77-12/82 1977-1982Mazda B1800 1.8 Ltr, VC Ute, PE2V7, 5 Speed, 8/77-12/82 1977-1982Mazda B2000 2.0 Ltr, FE Ute & Dual Cab, 5 Speed, 6/85-12/88 1985-1988Mazda B2000 2.0 Ltr, MA Ute, JM2UC, 5 Speed, 10/81-5/85 1981-1985Mazda B2000 2.0 Ltr, MA Ute, PE2M7, 5 Speed, 10/79-10/81 1979-1981Mazda B2200 2.2 Ltr Diesel, S2 Ute, JM2UD, 5 Speed, 10/81-1/85 1981-1985Mazda B2200 2.2 Ltr, R2 Ute, KM2UD, 5 Speed, 2/85-12/91 1985-1991Mazda B2500 2.5 Ltr, WL, 64kw 5 Speed, 1/87-2/99 1987-1999Mazda Bongo 1.8 Ltr, 71kw SK82V, 6/99- 1999Mazda Bongo 2.0 Ltr, RF SSF8, 1/83-12/87 1983-1987Mazda Bounty 2.5 Ltr, WL SDX, 1/99-12/01 1999-2001Mazda Capella 1.8 Ltr DOHC, FP-DE CG2, 1/90-12/98 1990-1998Mazda Capella 1.8 Ltr DOHC, F8 GD8, 1/89-12/91 1989-1991Mazda Capella 1.8 Ltr, FPDE, 93kw GF8P, 8/97-2/02, New Zealand Model 1997-2002Mazda Capella 1.8 Ltr, F8DE, 85kw GV8W, 8/92-10/97, New Zealand Model 1992-1997Mazda Capella 1.8 Ltr, F8DE, 72kw GV8W, 2/88-7/92, New Zealand Model 1988-1992Mazda Capella 2.0 Ltr GVER, 10/90-10/97, New Zealand Model 1990-1997Mazda Capella 2.0 Ltr, RF GVFV, 2/88-10/97, New Zealand Model 1988-1997Mazda Capella 1.6 Ltr SNA, 1/70-12/78 1970-1978Mazda E1600 1.6 Ltr, NA, 59kw Van & Cab Chassis, BA2N9, 5/78-12/83 1978-1983Mazda E1600 1.6 Ltr, NA, 59kw Traveller Wagon, 1/83-5/84 1983-1984Mazda E1800 1.8 Ltr 8V MPFI, 67kw 2/03-7/06 2003-2006Mazda E1800 1.8 Ltr SOHC, 58kw 6/95-12/96 1995-1996Mazda E1800 1.8 Ltr, VC Van & Ute, BA2V8, 1/80-12/83 1980-1983Mazda E1800 1.8 Ltr, VC Van & Ute, BA2V8, 1/79-12/80 1979-1980Mazda E1800 1.8 Ltr, VC Van & Ute, BA3V8, 1/80-12/83 1980-1983Mazda E1800 1.8 Ltr, VC Van & Ute, BA3V8, 1/79-12/80 1979-1980Mazda E1800 1.8 Ltr, VC Van & Ute, BA3V9, 1/80-12/83 1980-1983Mazda E1800 1.8 Ltr, VC Van & Ute, BA3V9, 1/79-12/80 1979-1980Mazda E1800 1.8 Ltr, F8 Van & Pick-up, SD89T, 1/83-2/88 1983-1988Mazda E1800 1.8 Ltr, F8 Van & Pick-up, SD89T, 3/88-5/95 1988ORANGE
