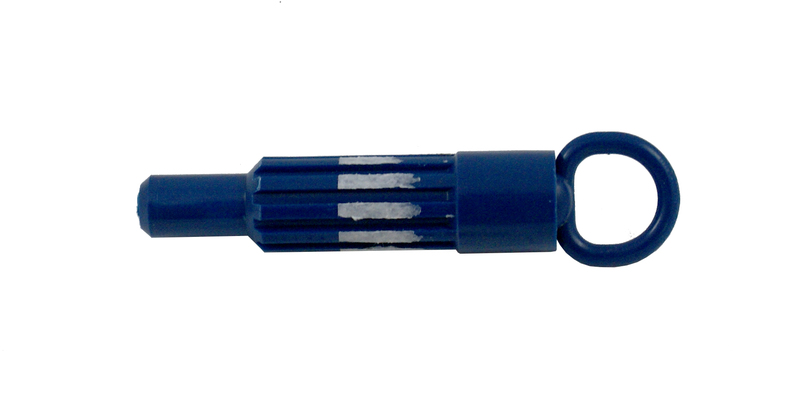

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:De Tomaso Deauville 5.8 Ltr, V8 4D Sedan, Deauville, 1/70-12/85 1970-1985De Tomaso Longchamp 5.8 Ltr, V8 2D Coupe, 2+2, 5 Speed, 1/74-12/89 1974-1989De Tomaso Longchamp 5.8 Ltr, V8 2D Coupe, GTS, 5 Speed, 1/80-12/89 1980-1989De Tomaso Longchamp 5.8 Ltr, V8 2D Convertible, Spider, 5 Speed, 1/74-12/89 1974-1989De Tomaso Pantera 5.8 Ltr, V8 2D Coupe, GT4, 1/71-12/91 1971-1991De Tomaso Pantera 5.8 Ltr, V8 2D Coupe, GT5, 1/80-12/91 1980-1991De Tomaso Pantera 5.8 Ltr, V8 2D Coupe, GTS, 1/74-12/91 1974-1991Ford American Models 260ci, V8 1/62-12/73 1962-1973Ford American Models 250ci, 6 Cyl 1/69-12/73 1969-1973Ford American Models 289ci, V8 1/62-12/73 1962-1973Ford American Models 302ci, V8 1/62-12/73, Except 302 H/D 1969-71 1962-1973Ford American Models 221ci, V8 1/62-12/73 1962-1973Ford American Models 351ci, V8 1/69-12/74 1969-1974Ford American Models 390ci, V8 1/63-12/70 1963-1970Ford American Models 302ci, V8 302 H/D, 1/69-12/71 1969-1971Ford American Models 250ci, 6 Cyl Maverick, 1/74-12/77 1974-1977Ford Bronco 4.1 Ltr, 6 Cyl 4WD, 1/81-12/84 1981-1984Ford Bronco 5.8 Ltr, V8 4WD, 1/83-12/87 1983-1987Ford Bronco 5.0 Ltr EFI, V8 4WD, 1/85-12/87 1985-1987Ford Bronco 4.1 Ltr, 6 Cyl 4WD, 1/81-12/84, Very Rare 1981-1984Ford Bronco 5.8 Ltr, V8 4WD, 1/81-12/83 1981-1983Ford Cortina 6 Cyl TC, 4 Speed, 10/72-10/74 1972-1974Ford Cortina 2.0 Ltr, NE TC, 10/72-10/74 1972-1974Ford Cortina 6 Cyl TD, 4 Speed, 10/74-6/77 1974-1977Ford Cortina 2.0 Ltr, NE TD, 10/74-6/77 1974-1977Ford Cortina 2.0 Ltr, NE TE, 6/77-8/80 1977-1980Ford Cortina 6 Cyl TE, 4 Speed, 6/77-11/80 1977-1980Ford Cortina 6 Cyl TF, 4 Speed, 11/80-8/82 1980-1982Ford Escort 2.0 Ltr, NE Mk II, 1/79-12/81 1979-1981Ford F Series 302ci, V8 F100, 1/74-8/85 1974-1985Ford F Series 250ci, 6 Cyl F100, 1/74-8/85 1974-1985Ford F Series 302ci, V8 F100, 3/83-8/85 1983-1985Ford F Series 351ci, V8 F100, 3/83-8/85 1983-1985Ford F Series 302ci, V8 F100, 1/77-12/87 1977-1987Ford F Series 351ci, V8 F100, 1/77-12/87 1977-1987Ford F Series 250ci, 6 Cyl F100, 1/74-12/84, Very Rare 1974-1984Ford F Series 300ci, 6 Cyl F100, 1/65-12/74 1965-1974Ford F Series 240ci, 6 Cyl F100, 1/65-12/74 1965-1974Ford F Series 351ci, V8 F100, 1/77-2/83 1977-1983Ford F Series 302ci, V8 F100, 1/77-2/83 1977-1983Ford F Series 5.0 Ltr, V8 F150, 4 Speed, 1/87-12/92 1987-1992Ford F Series 5.8 Ltr EFI, V8 F150, 5 Speed, 1/90-12/93 1990-1993Ford F Series 5.8 Ltr, V8 F150, 5 Speed, 1/93-12/94 1993-1994Ford F Series 300ci, 6 Cyl F150, 5 Speed, 1/93-12/96 1993-1996Ford F Series 5.0 Ltr, V8 F150, 5 Speed, 1/93-12/96 1993-1996Ford F Series 300ci, 6 Cyl F150, 5 Speed, 1/93-12/96 1993-1996Ford F Series 250ci, 6 Cyl F250, 1/74-8/85 1974-1985Ford F Series 351ci, V8 F250, 3/83-8/85 1983-1985Ford F Series 302ci, V8 F250, 3/83-6/85 1983-1985Ford F Series 4.2 Ltr Diesel, 6 Cyl F250, 1/81-12/82 1981-1982Ford F Series 302ci, V8 F250, 1/77-12/87 1977-1987Ford F Series 351ci, V8 F250, 1/77-12/87 1977-1987Ford F Series 5.8 Ltr EFI, V8 F250, 1/92-12/96 1992-1996Ford F Series 5.0 Ltr EFI, V8 F250, 1/87-12/92 1987-1992Ford F Series 250ci, 6 Cyl F250, 1/74-12/81, Very Rare 1974-1981Ford F Series 240ci, 6 Cyl F250, 1/65-1/74 1965-1974Ford F Series 300ci, 6 Cyl F250, 1/65-12/74 1965-1974Ford F Series 300ci, 6 Cyl F250 4WD, 1/74-12/76 1974-1976Ford F Series, 132kw F250, 7/01-7/03 2001-2003Ford F Series 4.2 Ltr Diesel, 6 Cyl F250, 1/97-9/98 1997-1998Ford F Series 5.0 Ltr, V8 F250, 5 Speed, 1/93-12/96 1993-1996Ford F Series 5.8 Ltr, V8 F250, 5 Speed, 1/93-12/94 1993-1994Ford F Series 300ci, 6 Cyl F250, 5 Speed, 1/93-12/96 1993-1996Ford F Series 300ci, 6 Cyl F250, 5 Speed, 1/93-12/96 1993-1996Ford F Series 302ci, V8 F250, 1/77-2/83 1977-1983Ford F Series 351ci, V8 F250, 1/77-2/83 1977-1983Ford F Series 302ci, V8 F350, 1/74-8/85 1974-1985Ford F Series 250ci, 6 Cyl F350, 1/74-8/85 1974-1985Ford F Series 302ci, V8 F350, 3/83-12/92 1983-1992Ford F Series 351ci, V8 F350, 3/83-8/85 1983-1985Ford F Series 302ci, V8 F350, 1/77-12/87 1977-1987Ford F Series 351ci, V8 F350, 1/77-12/87 1977-1987Ford F Series 5.0 Ltr EFI, V8 F350, 1/87-12/92 1987-1992Ford F Series 5.8 Ltr EFI, V8 F350, 1/92-12/96 1992-1996Ford F Series 250ci, 6 Cyl F350, 1/74-12/81, Very Rare 1974-1981Ford F Series 240ci, 6 Cyl F350, 1/65-12/74 1965-1974Ford F Series 300ci, 6 Cyl F350, 1/65-12/74 1965-1974Ford F Series 5.4 Ltr EFI, V8 F350, 1/99-12/03 1999-2003Ford F Series 300ci, 6 Cyl F350, 5 Speed, 1/93-12/96 1993-1996Ford F Series 5.8 Ltr, V8 F350, 5 Speed, 1/93-12/94 1993-1994Ford F Series 300ci, 6 Cyl F350, 5 Speed, 1/93-12/96 1993-1996Ford F Series 302ci, V8 F350, 1/77-2/83 1977-1983Ford F Series 351ci, V8 F350, 1/77-2/83 1977-1983Ford Falcon 302ci, V8 XR, 9/66-2/68 1966-1968Ford Falcon 302ci, V8 XT, 3/68-6/69 1968-1969Ford Falcon V8 XW, 7/69-10/70 1969-1970Ford Falcon 302ci, V8 XW, 7/69-10/70 1969-1970Ford Falcon V8 XY, 11/70-2/72 1970-1972Ford Falcon 302ci V8 XY, 11/70-2/72 1970-1972Ford Falcon 250ci 2V, 6 Cyl XY, 11/70-2/72, Rare 1970-1972Ford Falcon V8 XY, 11/70-2/72, Single Plate Conversion 1970-1972Ford Falcon 6 Cyl XY 4WD, 11/70-2/72 1970-1972Ford Falcon 250ci, 6 Cyl XY, 4 Speed, 11/70-2/72 1970-1972Ford Falcon 200ci, 6 Cyl XY, 4 Speed, 11/70-2/72 1970-1972Ford Falcon V8 XA, 3/72-10/73 1972-1973Ford Falcon 302ci, V8 XA, 3/72-10/73 1972-1973Ford Falcon 250ci 2V, 6 Cyl XA, 3/72-10/73, Rare 1972-1973Ford Falcon V8 XA, 3/72-10/73, Single Plate Conversion 1972-1973Ford Falcon 250ci, 6 Cyl XA, 4 Speed, 3/72-10/73 1972-1973Ford Falcon 200ci, 6 Cyl XA, 4 Speed, 3/72-10/73 1972-1973Ford Falcon V8 XB, 11/73-7/76 1973-1976Ford Falcon 302ci, V8 XB, 11/73-7/76 1973-1976Ford Falcon 250ci 2V, 6 Cyl XB, 11/73-7/76, Rare 1973-1976Ford Falcon V8 XB, 11/73-7/76, Single Plate Conversion 1973-1976Ford Falcon 250ci, 6 Cyl XB, 4 Speed, 11/73-7/76 1973-1976Ford Falcon 200ci, 6 Cyl XB, 4 Speed, 11/73-7/76 1973-1976Ford Falcon V8 XC, 8/76-2/79 1976-1979Ford Falcon V8 XC, 8/76-2/79, Single Plate Conversion 1976-1979Ford Falcon 6 Cyl XC, 4 Speed, 7/78-2/79 1978-1979Ford Falcon 200ci, 6 Cyl XC, 4 Speed, 8/76-6/78 1976-1978Ford Falcon 250ci, 6 Cyl XC, 4 Speed, 8/76-6/78 1976-1978Ford Falcon 5.8 Ltr, V8 XD, 3/79-2/82 1979-1982Ford Falcon 4.9 Ltr, V8 XD, 3/79-2/82 1979-1982Ford Falcon V8 XD, 3/79-2/82, Single Plate Conversion 1979-1982Ford Falcon 6 Cyl XD, 4 Speed, 3/79-2/82 1979-1982Ford Falcon 5.8 Ltr, V8 XE, 3/82-9/84 1982-1984Ford Falcon 4.9 Ltr, V8 XE, 3/82-9/84 1982-1984Ford Falcon 4.1 Ltr EFI, 6 Cyl XE, 3/82-9/84 1982-1984Ford Falcon V8 XE, 3/82-9/84, Single Plate Conversion 1982-1984Ford Falcon 6 Cyl XE, 4 Speed, 3/82-9/84 1982-1984Ford Falcon 6 Cyl XE, 5 Speed, 3/82-9/84 1982-1984Ford Falcon 3.3 Ltr, 6 Cyl XF, 4 Speed, 10/84-12/88 1984-1988Ford Falcon 4.1 Ltr, 6 Cyl XF, 4 Speed, 10/84-12/88 1984-1988Ford Falcon 3.3 Ltr, 6 Cyl XF, 5 Speed, 10/84-12/88 1984-1988Ford Falcon 4.1 Ltr EFI, 6 Cyl XF Unleaded, 5 Speed, 10/84-12/88 1984-1988Ford Falcon 4.1 Ltr EFI, 6 Cyl XF Unleaded, 4 Speed, 10/84-12/88 1984-1988Ford Falcon 3.9 Ltr EFI, 6 Cyl EA, 1/88-4/92 1988-1992Ford Falcon 3.2 Ltr EFI, 6 Cyl EA, 3/88-6/91 1988-1991Ford Falcon 4.0 Ltr EFI, 6 Cyl EB Series II, 4/92-7/93 1992-1993Ford Falcon 5.0 Ltr EFI, V8 EB, 1/92-12/94 1992-1994Ford Falcon 5.0 Ltr EFI, V8 EB GT, 1/92-12/93 1992-1993Ford Falcon 4.0 Ltr EFI, 6 Cyl EB Series II XR6, 4/92-7/93 1992-1993Ford Falcon 5.0 Ltr EFI, V8 EB XR8, 1/92-12/93 1992-1993Ford Falcon 3.2 Ltr EFI, 6 Cyl EB Series I, 7/91-4/92 1991-1992Ford Falcon 3.9 Ltr EFI, 6 Cyl EB Series I, 7/91-4/92 1991-1992Ford Falcon 4.0 Ltr EFI, 6 Cyl ED, 8/93-7/94 1993-1994Ford Falcon 5.0 Ltr EFI, V8 ED, 8/93-7/94 1993-1994Ford Falcon 4.0 Ltr EFI, 6 Cyl ED XR6, 8/93-7/94 1993-1994Ford Falcon 5.0 Ltr EFI, V8 ED XR8, 8/93-7/94 1993-1994Ford Falcon 4.0 Ltr EFI, 6 Cyl EF, 8/94-7/96 1994-1996Ford Falcon 5.0 Ltr EFI, V8 EF, 8/94-7/96 1994-1996Ford Falcon 4.0 Ltr EFI, 6 Cyl EF XR6, 8/94-7/96 1994-1996Ford Falcon 5.0 Ltr EFI, V8 EF XR8, 8/94-7/96 1994-1996Ford Falcon 4.0 Ltr EFI, 6 Cyl EL, 9/96-8/98 1996-1998Ford Falcon 5.0 Ltr EFI, V8 EL, 9/96-8/98 1996-1998Ford Falcon 4.0 Ltr EFI, 6 Cyl EL XR6, 9/96-8/98 1996-1998Ford Falcon 5.0 Ltr EFI, V8 EL XR8, 9/96-8/98 1996-1998Ford Falcon 4.0 Ltr EFI, 6 Cyl, 157kw AU Series I, 5 Speed, 5/99-4/00 1999-2000Ford Falcon 4.0 Ltr EFI, 6 Cyl, 157kw AU Series II, 5 Speed, 4/00-3/02 2000-2002Ford Falcon 5.0 Ltr EFI, V8 AU, 5/99-10/02 1999-2002Ford Falcon 4.0 Ltr EFI, 6 Cyl AU Series I XR6, 5/99-4/00 1999-2000Ford Falcon 4.0 Ltr EFI, 6 Cyl AU Series II XR6, 4/00-3/02 2000-2002Ford Falcon 5.0 Ltr EFI, V8, 200kw AU XR8, 1/99-10/02 1999-2002Ford Falcon 5.0 Ltr EFI, V8, 175kw AU XR8, 1/99-10/02 1999-2002Ford Falcon 5.0 Ltr EFI, V8, 185kw AU XR8, 1/99-10/02 1999-2002Ford Falcon 5.4 Ltr, 220kw BA, 5 Speed, 10/03-9/05 2003-2005Ford Falcon 5.4 Ltr, 260kw BA XR8, 5 Speed, 10/03-9/05 2003-2005Ford Falcon 5.4 Ltr, 220kw BF, 6 Speed, 10/05-4/08 2005-2008Ford Falcon 5.4 Ltr, 260kw BF XR8, 6 Speed, 10/05-4/08 2005-2008ORANGE
