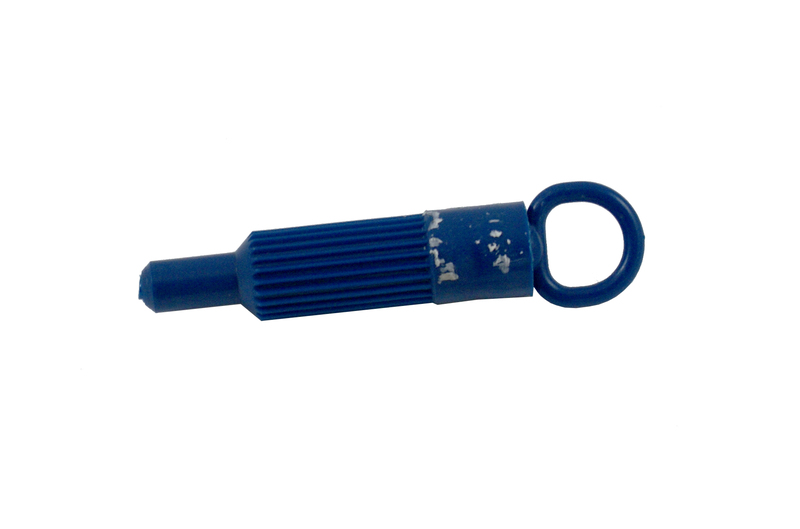

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Ford Capri 3.0 Ltr V6, HYF 1/71-12/73, Australian Production 1971-1973Ford Capri 2.8 Ltr V6, TV28HI 4/81-2/87 1981-1987Ford Capri 2.3 Ltr V6, TV23HYH 1/74-2/87 1974-1987Ford Capri 3.1 Ltr V6, RS 6/72-12/73, English Production 1972-1973Ford Capri 3.0 Ltr V6, TV30HYT 1/74-2/78 1974-1978Ford Capri 2.9 Ltr V6, EV30H 1/74-2/78 1974-1978Ford Cortina 1.6 Ltr, L2A TC, 10/72-10/74, 3 Bolt Cover 1972-1974Ford Cortina 2.0 Ltr, NE TE, 8/80-11/80 1980-1980Ford Cortina 2.0 Ltr, NE TF, 11/80-8/82 1980-1982Ford Escort 1.6 Ltr, L3A Mk I, 1/73-12/75, 3 Bolt Cover 1973-1975Ford Escort 1.3 Ltr, J2H Mk I, 1/73-12/75, 3 Bolt Cover 1973-1975Ford Escort 2.0 Ltr, NE Mk II, 6/79-3/81, RS2000 1979-1981Ford Escort 1.3 Ltr, J2H Mk II, 1/75-12/81 1975-1981Ford Escort 1.6 Ltr, L3A Mk II, 1/75-12/81 1975-1981Ford Ranger 2.5 Ltr, 2.5 MZR-CD, 105kw PJ, 5 Speed, 11/06-3/09 2006-2009Ford Ranger 3.0 Ltr, 3.0 MZR-CD, 115kw PJ, 5 Speed, 11/06-3/09 2006-2009Ford Ranger 2.5 Ltr, 2.5 MZR-CD, 105kw PK, 5 Speed, 4/09-8/11 2009-2011Ford Ranger 3.0 Ltr, 3.0 MZR-CD, 115kw PK, 5 Speed, 4/09-8/11 2009-2011Ford Ranger 2.2 Ltr I/C TDI, P4AT, 110kw PX, 6 Speed, 9/11- 2011Ford Ranger 3.2 Ltr I/C TDI, P5AT, 147kw PX, 6 Speed, 9/11- 2011Ford Ranger 3.2 Ltr I/C TDI, P5AT, 147kw Cab Chassis, 3/14- 2014Ford Sierra 2.0 Ltr 8/82-12/90 1982-1990Ford Sierra 2.8 Ltr V6, PRT XR4, 3/83-5/85 1983-1985Ford Sierra 2.8 Ltr V6, PRT XR4i, 3/83-5/85 1983-1985Ford Sierra 2.3 Ltr Turbo V6, YY, 79kw XR4Ti, 8/82-12/86 1982-1986Ford Transit V4 1/65-12/74 1965-1974Ford Transit 2.0 Ltr, N6T, 57kw MT75, 8/91-9/92 1991-1992Ford Transit 2.0 Ltr, NAT, 57kw MT75, 8/91-9/92 1991-1992Ford Transit 2.0 Ltr, NBA, 66kw MT75, 9/91-9/94 1991-1994Ford Transit 2.0 Ltr, NCA, 72kw MT75, 9/91-9/94 1991-1994Ford Transit 2.0 Ltr, NAV, 57kw MT75, 8/91-9/92 1991-1992Ford Transit 6 Cyl Falcon 1/65-12/74, with Eng Conversion 1965-1974Ford Transit 2.5 Ltr TDI, 63kw VF, 4/96-1/97 1996-1997Ford Transit 2.0 Ltr EFI, 83kw VF, 4/96-1/97 1996-1997Ford Transit 2.5 Ltr TDI, 63kw VG, 1/97-12/00 1997-2000Ford Transit 2.0 Ltr EFI, 83kw VG, 1/97-12/00 1997-2000Ford Transit 2.4 Ltr TDI VH, 12/00-4/02, DMR2220N Flywheel -8.0 DMF2254N Flywheel -13.1 2000-2002Ford Transit 2.4 Ltr TDI VH, 4/02-4/04, DMR2220N Flywheel -8.0 DMF2254N Flywheel -13.1 2002-2004Ford Transit 2.3 Ltr MPFI, E5FB, 103kw VH, 5 Speed, 8/01-4/02 2001-2002Ford Transit 2.3 Ltr MPFI, E5FB, 103kw VH, 5 Speed, 6/02-4/04 2002-2004Ford Transit 2.4 Ltr TDI, 101kw VJ, 5 Speed, 5/04-10/06, DMR2220N Flywheel -8.0 DMF2254N Flywheel -13.1 2004-2006Ford Transit 2.3 Ltr MPFI, E5FB, 103kw VJ, 5 Speed, 5/04-9/06 2004-2006Ford Transit 2.2 Ltr TDI, QVFA, 85kw VM, 5 Speed, 10/06-, Great Britain Model Only 2006Ford Transit 2.5 Ltr VH, 1/00-12/04 2000-2004Great Wall V240 2.4 Ltr MPFI, 4G69S4N, 100kw K2, 5 Speed, 6/09- 2009Great Wall X240 2.4 Ltr MPFI, 4G69S4N, 100kw CC, 5 Speed, 10/09- 2009Holden Colorado 3.6 Ltr MPFI, Alloytec, 157kw RC, 5 Speed, 7/08-5/12 2008-2012Holden Commodore 3.8 Ltr, V6 VS Series II, M35 Getrag, 7/96-5/97 1996-1997Holden Commodore 3.8 Ltr, V6 VH VS Series III, M35 Getrag, 3/99-12/00 1999-2000Holden Commodore 5.0 Ltr EFI, V8 VS, M34 Getrag, 7/96-5/97 1996-1997Holden Commodore 5.0 Ltr, V8 VU VS Series III, M34 Getrag, 3/99-12/00 1999-2000Holden Commodore 3.8 Ltr, V6 VT, M35 Getrag, 5/97-10/00 1997-2000Holden Commodore 5.0 Ltr EFI, V8 VT, M34 Getrag, 5/97-6/99 1997-1999Holden Commodore 3.8 Ltr, V6 VU, M35 Getrag, 1/01-9/02 2001-2002Holden Commodore 3.8 Ltr, V6 VX, M35 Getrag, 8/00-9/02 2000-2002Holden Commodore 3.8 Ltr, V6 VH, 152kw VY, M35 Getrag, 9/02-7/04 2002-2004Holden Commodore 3.6 Ltr EFI, V6, 175kw VZ, 6 Speed, 8/04-7/06 2004-2006Holden Commodore 3.6 Ltr MPFI, 195kw VE, 6 Speed, 8/06-8/10 2006-2010Holden Commodore 3.6 Ltr SIDI, 210kw VE Series II, 6 Speed, 9/10-4/13 2010-2013Holden Commodore 3.6 Ltr SIDI, 210kw VF, 6 Speed, 5/13- 2013Holden Crewman 3.6 Ltr MPFI, 175kw Crew Cab Utility, VZ, 6 Speed, 8/04-7/06 2004-2006Holden Rodeo 3.6 Ltr MPFI, Alloytec, 157kw RA, 5 Speed, 12/05-10/08 2005-2008HSV Clubsport 5.0 Ltr EFI, LB9, 185kw VS, M34 Getrag, 1/96-8/97 1996-1997HSV Clubsport 5.0 Ltr EFI, LB9, 195kw VT, M34 Getrag, 9/97-6/99 1997-1999HSV Maloo 5.0 Ltr EFI, LB9, 185kw VR, Getrag, 7/93-4/95 1993-1995HSV Maloo 5.0 Ltr EFI, LB9, 195kw VS, M34 Getrag, 5/99-10/00 1999-2000HSV Maloo 5.0 Ltr EFI, LB9, 185kw VS, M34 Getrag, 1/96-5/99 1996-1999HSV Manta 5.0 Ltr EFI, LB9, 185kw VS, M34 Getrag, 1/96-8/97 1996-1997HSV Senator 5.0 Ltr EFI, LB9, 185kw VS 185i, M34 Getrag, 1/96-8/97 1996-1997HSV Senator 5.0 Ltr EFI, LB9, 195kw VT Signature 195i, M34 Getrag, 9/97-6/99 1997-1999HSV XU8 5.0 Ltr EFI, LB9, 195kw VT, M34 Getrag, 1/99-6/99 1999-1999Hyundai H100 2.6 Ltr Diesel, D4BB 1/98-, Suit OEM Solid Flywheel 1998Kia Carnival 2.5 Ltr 24V, V6 KV6, 132kw KV11, 5 Speed, 1/99-8/06 1999-2006Mazda BT-50 2.5 Ltr, 2.5 MZR-CD, 105kw UN, 5 Speed, 11/06-10/11 2006-2011Mazda BT-50 3.0 Ltr, 3.0 MZR-CD, 115kw UN, 5 Speed, 11/06-10/11 2006-2011Mazda BT-50 2.2 Ltr, P4AT, 110kw UP0YD, 6 Speed, 1/11- 2011Mazda BT-50 3.2 Ltr I/C TDI, P5AT, 147kw UPOYF, 6 Speed, 11/11- 2011Mitsubishi 3000GT 3.0 Ltr Twin Turbo, V6 6G72, 163kw Constant 4WD, 5 Speed, 1/92-12/93 1992-1993Mitsubishi Challenger 2.8 Ltr TDI, 4M40T, 104kw K97, 8/97-5/99, New Zealand Model 1997-1999Mitsubishi Chariot 2.0 Ltr, 4G63 DL5H45, 1/97-12/98, New Zealand Model 1997-1998Mitsubishi Delica 2.3 Ltr Diesel, 4D55 L038P, 10/82-7/86 1982-1986Mitsubishi Delica 2.3 Ltr Diesel, 4D55 L068P, 10/82-5/86 1982-1986Mitsubishi Delica 2.5 Ltr Diesel, 4D56 P05V, 4/86-8/99 1986-1999Mitsubishi Delica 2.5 Ltr TDI, 4D56-T P05W, 4/86-8/99 1986-1999Mitsubishi Delica 2.5 Ltr Diesel, 4D56 P15V, 8/86-6/99 1986-1999Mitsubishi Delica 2.5 Ltr TDI, 4D56-T P25V, 4/86-8/99 1986-1999Mitsubishi Delica 2.5 Ltr TDI, 4D56-T P25W, 4/86-8/99 1986-1999Mitsubishi Delica 2.5 Ltr Diesel, 4D56 P35W, 8/89-8/99 1989-1999Mitsubishi Delica 2.5 Ltr Diesel, 4D56 P45V, 1/90-12/99 1990-1999Mitsubishi Delica 2.5 Ltr Diesel, 4D56 PA5V, 3/94-4/99 1994-1999Mitsubishi Delica 2.5 Ltr Diesel, 4D56 PA5W, 3/94-4/99 1994-1999Mitsubishi Diamante 3.0 Ltr, V6 6G72 F36A, 1/95-9/02 1995-2002Mitsubishi Diamante 3.5 Ltr, 6G74 F36C, 1/01-10/04 2001-2004Mitsubishi Diamante 3.5 Ltr, 6G74 KE8, 1/96-12/00 1996-2000Mitsubishi Express 2.0 Ltr, 4G63, 66kw SF, 10/86-10/90 1986-1990Mitsubishi Express 2.4 Ltr, 4G64B, 81kw SF, 10/86-10/90 1986-1990Mitsubishi Express 2.0 Ltr, 4G63, 66kw SG, 9/90-1/94 1990-1994Mitsubishi Express 2.5 Ltr Diesel, 4D56, 51kw SG, 9/90-1/94 1990-1994Mitsubishi Express 2.4 Ltr, 4G64B, 81kw SG, 9/90-1/94, incl 4WD 1990-1994Mitsubishi Express 2.0 Ltr, 4G63, 66kw SH, 9/90-9/95 1990-1995Mitsubishi Express 2.5 Ltr Diesel, 4D56, 51kw SH, 9/90-9/95 1990-1995Mitsubishi Express 2.4 Ltr, 4G64B, 81kw SH, 9/90-9/95 1990-1995Mitsubishi Express 2.0 Ltr SOHC, 4G63 SJ, 6/94-5/98 1994-1998Mitsubishi Express 2.5 Ltr Diesel, 4D56 SJ, 10/94-5/98 1994-1998Mitsubishi Express 2.4 Ltr 16V, 4G64B SJ, 1/98-5/98 1998-1998Mitsubishi Express 2.4 Ltr 16V, 4G64B, 97kw WA, 9/94-11/05 1994-2005Mitsubishi L200 2.6 Ltr, 4G54 K13T, 1/86-12/90, New Zealand Model (Bearing is 33mm Fork to Face) 1986-1990Mitsubishi L200 2.6 Ltr, 4G54 K13T, 1/90-12/91, New Zealand Model (Bearing is 27mm Fork to Face) 1990-1991Mitsubishi L200 2.5 Ltr Diesel, 4D56 K34, 1/92-12/96 1992-1996Mitsubishi L200 2.5 Ltr Turbo, 4D56T KJ7, 1/92-12/98, New Zealand Model 1992-1998Mitsubishi L200 2.0 Ltr, 4G63 L026, 1/82-12/87, New Zealand Model 1982-1987Mitsubishi L200 2.0 Ltr, 4G52 MA, 3/80-10/81, > Eng No 42F66755 1980-1981Mitsubishi L200 2.0 Ltr, 4G52 MB, 10/81-10/82 1981-1982Mitsubishi L200 2.0 Ltr, 4G52 MC, 10/82-9/84 1982-1984Mitsubishi L200 2.3 Ltr Diesel MC, 10/82-9/84 1982-1984Mitsubishi L200 2.0 Ltr, 4G52 MD, 9/84-10/86 1984-1986Mitsubishi L200 2.3 Ltr Diesel MD, 9/84-10/86 1984-1986Mitsubishi L200 2.5 Ltr Diesel, 4D56 K14T, 1/86-12/92 1986-1992Mitsubishi L200 2.8 Ltr Diesel, 4M40 K67, 1/97-12/02, New Zealand Model 1997-2002Mitsubishi L200 2.5 Ltr Diesel, 4D56 KF3, 1/92-12/96 1992-1996Mitsubishi L200 2.5 Ltr Diesel, 4D56 KF7, 1/92-12/96 1992-1996Mitsubishi L200 2.4 Ltr Diesel, 4D55 L021, 1/82-12/86 1982-1986Mitsubishi L200 2.4 Ltr Diesel, 4D55 L026, 4WD, 1/82-12/86 1982-1986Mitsubishi L200 2.4 Ltr Diesel, 4D55 L028, 4WD, 1/82-12/86 1982-1986Mitsubishi L300 2.0 Ltr, 4G63 SD, 8/84-7/85 1984-1985Mitsubishi L300 2.0 Ltr, 4G63 SE, 7/85-10/86 1985-1986Mitsubishi L300 2.0 Ltr, 4G63, 66kw SF, 10/86-10/90 1986-1990Mitsubishi L300 2.3 Ltr Diesel, 4D55 SF, 10/86-10/90, incl 4WD 1986-1990Mitsubishi L300 2.4 Ltr, 4G64B, 81kw SF, 10/86-10/90 1986-1990Mitsubishi L300 2.0 Ltr, 4G63, 66kw SG, 9/90-1/94 1990-1994Mitsubishi L300 2.5 Ltr Diesel, 4D56, 51kw SG, 9/90-1/94 1990-1994Mitsubishi L300 2.4 Ltr, 4G64B, 81kw SG, 9/90-1/94, incl 4WD 1990-1994Mitsubishi L300 2.0 Ltr, 4G63, 66kw SH, 9/90-9/95 1990-1995Mitsubishi L300 2.5 Ltr Diesel, 4D56, 51kw SH, 9/90-9/95 1990-1995Mitsubishi L300 2.4 Ltr, 4G64B, 81kw SH, 9/90-9/95 1990-1995Mitsubishi L300 2.0 Ltr SOHC, 4G63 SJ, 6/94-1/06 1994-2006Mitsubishi L300 2.0 Ltr SOHC SJ, 11/03- 2003Mitsubishi L300 2.5 Ltr Diesel, 4D56 SJ, 10/94-2/00 1994-2000Mitsubishi L300 2.0 Ltr 16V, 4G63B SJ, 9/94-11/03 1994-2003Mitsubishi L300 2.4 Ltr 16V, 4G64B, 84kw SJ P04V, 2/06-12/12 2006-2012Mitsubishi L300 2.4 Ltr 16V, 4G64B SJ P04V, 1/98-1/07 1998-2007Mitsubishi L300 2.4 Ltr 16V, 4G64B, 84kw SJ P14V, 6/94-12/12 1994-2012Mitsubishi L300 2.4 Ltr 16V, 4G64B, 97kw WA, 9/94-2/03 1994-2003Mitsubishi L300 2.0 Ltr 8V, 4G63B, 78kw WA, 10/94-8/05 1994-2005Mitsubishi L300 2.0 Ltr 16V, 4G63B, 85kw WA, 9/94-8/05 1994-2005Mitsubishi L400 2.4 Ltr 16V, 4G64B, 97kw WA, 9/94-8/05 1994-2005Mitsubishi Lancer 1.8 Ltr Turbo, 4G93T, 152kw CM5A, 12/96-4/00, New Zealand Model 1996-2000Mitsubishi Lancer 2.0 Ltr Turbo, 4G63 CN9A (EVO IV), 8/97-8/98 1997-1998Mitsubishi Lancer 2.0 Ltr Turbo, 4G63T CP9A (EVO V), 1/98-12/98 1998-1998Mitsubishi Lancer 2.0 Ltr Turbo CP9A (EVO VI), 1/99-11/01 1999-2001Mitsubishi Lancer 2.0 Ltr Turbo, 4G63, 195kw CT9A (EVO VIII), 5 Speed, 6/04-6/05 2004-2005ORANGE
