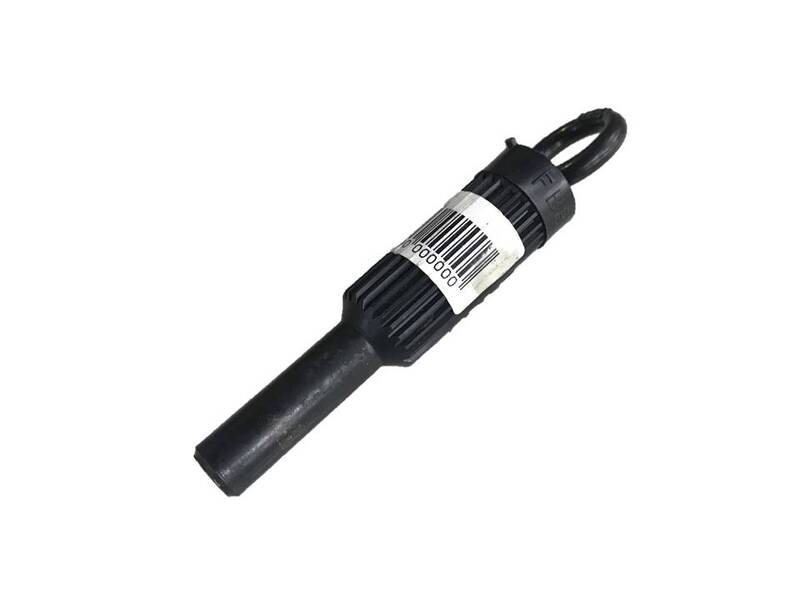

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Ford Courier 2.6 Ltr PC, 1/86-12/92 1986-1992Ford Courier 2.6 Ltr EFI, G6(F) PD, 5/96-2/99 1996-1999Ford Courier 2.6 Ltr EFI, G6 PE, 2/99-5/00 1999-2000Ford Courier 2.5 Ltr TDI, WLAT PE, 2/99-11/02 1999-2002Ford Courier 2.6 Ltr EFI, G6 PE, 6/00-10/02 2000-2002Ford Courier 2.5 Ltr TDI, WLAT PG, 11/02-7/04 2002-2004Ford Courier 2.6 Ltr EFI, G6 PG, 11/02-7/04 2002-2004Ford Courier 2.5 Ltr TDI, WLAT PH, 8/04-12/06 2004-2006Ford Courier 2.6 Ltr EFI, G6 PH, 8/04-12/06 2004-2006Ford Econovan 2.2 Ltr Diesel, R2 3/88- 1988Ford Econovan 2.0 Ltr, F8 JG LWB, 5 Speed, 2/97-10/99 1997-1999Ford Econovan 2.0 Ltr, F8 JH LWB, 5 Speed, 10/99-1/03 1999-2003Ford Econovan 2.0 Ltr, F8 LWB, 5 Speed, - 1960Ford Econovan 2.0 Ltr LWB, 3/88-2/96 1988-1996Ford Explorer 4.0 Ltr, V6, 119kw 1/96-6/99 1996-1999Ford Explorer 4.0 Ltr, V6, 119kw UQ, 6/99-1/00 1999-2000Ford Explorer 4.0 Ltr, V6, 119kw US, 1/00-10/01 2000-2001Ford Focus 2.0 Ltr MPFI, AODA, 107kw LS, 5 Speed, 5/05-6/07 2005-2007Ford Focus 2.0 Ltr MPFI, AODB, 107kw LS, 5 Speed, 5/05-6/07 2005-2007Ford Focus 2.0 Ltr MPFI, AODB, 107kw LT, 5 Speed, 7/07-1/08 2007-2008Ford Focus 2.0 Ltr MPFI, AODA, 107kw LT, 5 Speed, 7/07-1/08 2007-2008Ford Laser 1.8 Ltr DOHC EFI, BPD(N) KJ, 10/94-8/95 1994-1995Ford Laser 1.8 Ltr DOHC EFI, BPD(N) KJ Liata, 10/94-8/95 1994-1995Ford Mondeo 2.5 Ltr Quadcam, SEA V6 HE ST24, 2/00-4/01 2000-2001Ford Raider 2.6 Ltr EFI, 92kw UV, 4WD, 1/91-7/97 1991-1997Ford Raider 2.6 Ltr EFI, G6(F), 92kw UV, 5 Speed 4WD, 8/91-11/96 1991-1996Ford Ranger 3.0 Ltr, V6, 115kw 11/94-12/05 1994-2005Ford Ranger 4.0 Ltr, V6, 119kw 1/98-12/00 1998-2000Ford Spectron 2.0 Ltr, FE SGME, 3/88-12/90 1988-1990Ford Spectron 2.0 Ltr, FE SGMW, 3/88-12/88 1988-1988Ford Telstar 2.2 Ltr Turbo AT, 10/87-10/89 1987-1989Ford Telstar 2.2 Ltr Turbo AV, 1/90-1/92 1990-1992Ford Transit 2.4 Ltr TDI, 101kw VJ, 6 Speed, 5/04-10/06 2004-2006Ford Transit 2.4 Ltr TDI, 103kw VM, 6 Speed, 10/06- 2006Mazda 626 2.2 Ltr Turbo GD10, 1/87-12/91 1987-1991Mazda 929 3.0 Ltr, V6 JE HC, 1/92-12/96 1992-1996Mazda 929 3.0 Ltr, V6 HC10E, 1/87-12/92 1987-1992Mazda 929 3.0 Ltr, V6 JE HD, 1/92-12/96 1992-1996Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V, DOHC BA11P, 7/94-8/95 1994-1995Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V, DOHC BH, 7/94-8/95 1994-1995Mazda B Series 2.6 Ltr EFI Petrol, 66 B2600 FY065, 4/96-11/06 1996-2006Mazda B2500 2.5 Ltr TDI, WL-T, 86kw 5 Speed, 2/99-11/06 1999-2006Mazda B2600 2.6 Ltr, 73kw Cab Chassis & Ute, incl 4WD, 5 Speed, 3/87-11/91 1987-1991Mazda B2600 2.6 Ltr EFI, AM, 92kw Cab Chassis & Ute, incl 4WD, 5 Speed, 12/90-11/06 1990-2006Mazda B4000 4.0 Ltr, V6 G6 1/96-12/04 1996-2004Mazda Bounty 2.5 Ltr TDI, WL-T SDX, 1/00- 2000Mazda E2000 2.0 Ltr, FE SDEA incl 4WD, 3/88-7/06 1988-2006Mazda E2000 2.0 Ltr, FE SRE9 incl 4WD, 3/88-7/06 1988-2006Mazda E2000 2.0 Ltr, FE SREA incl 4WD, 3/88-7/06 1988-2006Mazda E2000 2.0 Ltr, FE SSE8 incl 4WD, 3/88-7/06 1988-2006Mazda E2000 2.0 Ltr Diesel, RF Van & Wagon, SSF8V, 5/88-12/94 1988-1994Mazda E2000 2.0 Ltr Diesel, RF Van & Wagon, SSF8W, 5/88- 1988Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SD29M incl 4WD, 1/88-8/97 1988-1997Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SD2AT-29T, 1/88-8/97 1988-1997Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AM incl 4WD, 1/88-8/97 1988-1997Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AV-29V, 1/88-11/95 1988-1995Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AV-29V, 1/88-8/97 1988-1997Mazda E2200 2.2 Ltr Diesel, R2 Wagon, SS28R incl 4WD, 1/88-8/97 1988-1997Mazda E2200 2.2 Ltr Diesel, R2 Wagon, SSF8W incl 4WD, 1/88-8/97 1988-1997Mazda E2500 2.5 Ltr TDI, WL-T 2/99-4/03 1999-2003Mazda MPV 3.0 Ltr, V6 JE LVEW, 1/91-12/95 1991-1995Mazda MX6 2.2 Ltr Turbo, F22 GD, 1/87-12/91 1987-1991Mazda Proceed 2.6 Ltr, G6, 89kw 1/90-1/99 1990-1999Mazda T2600 2.6 Ltr Cab Chassis, 4/85-12/88 1985-1988
