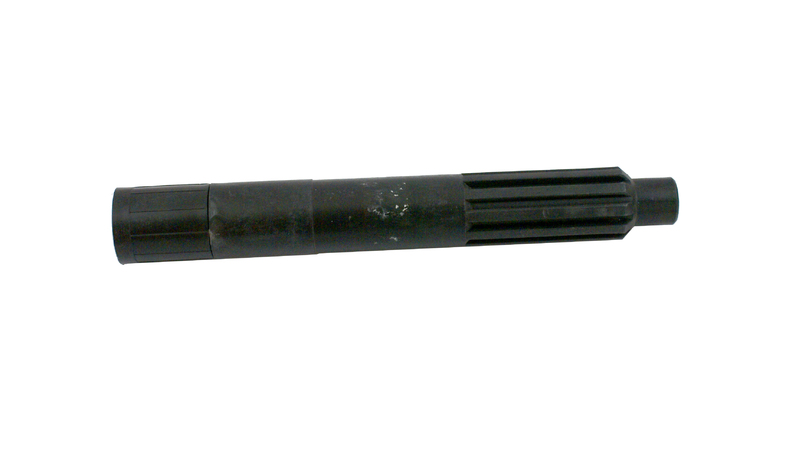

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Ford Cargo 10.4 Ltr, 3208 Caterpillar 1617, 10 Speed R/Ranger, 12/83-12/91 1983-1991Ford Cargo 10.4 Ltr, 3208 Caterpillar 1621, 10 Speed R/Ranger, 12/83-12/91 1983-1991Ford Cargo 10.4 Ltr, 3208 Caterpillar 2419, 10 Speed R/Ranger, 12/83-4/89 1983-1989Ford Cargo 10.4 Ltr, 3208 Caterpillar 2421, 10 Speed R/Ranger, 12/83-12/91 1983-1991Hino FM Series 9.9 Ltr, M10C FM3M, Fuller RT-6613 13 Speed, 1/93-12/01, Shrike 1400 1993-2001International Acco Series 7.7 Ltr TDI, Cummins F2250D, 13 Speed, 1/88-12/92 1988-1992International Acco Series 7.7 Ltr TDI T2250D, 13 Speed, 1/88-12/92 1988-1992Mitsubishi Fuso FP 11.2 Ltr, 6D22-1A FP418, 1/85-12/94 1985-1994Mitsubishi Fuso FV 16.0 Ltr, 8DC9-1A FV315HRA, R/Ranger, 1/82-12/84 1982-1984Mitsubishi Fuso FV 14.8 Ltr, 8DC8-2A FV413, R/Ranger, 1/84-12/92 1984-1992Mitsubishi Fuso FV 16.0 Ltr, 8DC9-1A FV413, R/Ranger, 1/84-12/92 1984-1992Mitsubishi Fuso FV 14.8 Ltr, 8DC8-2A FV415, R/Ranger, 1/84-12/92 1984-1992Mitsubishi Fuso FV 16.0 Ltr, 8DC9-1A FV415, R/Ranger, 1/84-12/92 1984-1992Mitsubishi Fuso FV 12.2 Ltr, 6D24-OATI FV417, 10 Speed R/Ranger, 1/96-12/98 1996-1998Mitsubishi Fuso FV 12.2 Ltr TDI, 6D22-1AT3 FV418, 10 Speed Fuller, 1/87-12/94 1987-1994Mitsubishi Fuso FV 12.2 Ltr TDI, 6D22-1AT3 FV418, 10 Speed R/Ranger, 1/87-12/94 1987-1994Mitsubishi Fuso FV 12.2 Ltr, 6D24-OATI FV517, 10 Speed R/Ranger, 7/98-11/02 1998-2002Mitsubishi Fuso FV 12.2 Ltr, 6D24-OATI FV518, 10 Speed R/Ranger, 7/98-11/02 1998-2002Mitsubishi Fuso FV 11.9 Ltr, 6D24-OAT2, 280hp FV547, 13 Speed, 1/98-12/99 1998-1999Nissan Diesel UD CGA Series 12.0 Ltr TDI, PE6T CGA45, R/Ranger, 1/87-12/94 1987-1994Nissan Diesel UD CGA Series 12.0 Ltr TDI, PE6T CGA46, R/Ranger, 1/87-12/94 1987-1994Nissan Diesel UD CGB Series 12.0 Ltr TDI, PF6TA CGB450, R/Ranger, 1/87-12/94 1987-1994Nissan Diesel UD CK Series 12.0 Ltr, PE6 CK30, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CK Series 12.0 Ltr, PF6TA CK320, Eaton, 2/98-2/04 1998-2004Nissan Diesel UD CK Series 10.3 Ltr, PD6T CK40, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CK Series 12.0 Ltr, PE6 CK50, R/Ranger, 1/75- 1975Nissan Diesel UD CKA Series 12.0 Ltr, PE6 CKA30, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CKA Series 12.0 Ltr, PE6 CKA31, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CKA Series 12.0 Ltr, PE6T CKA45, R/Ranger, 1/88-12/92 1988-1992Nissan Diesel UD CKA Series 12.0 Ltr, PE6T CKA45, 1/79-12/88 1979-1988Nissan Diesel UD CKA Series 12.0 Ltr, PE6 CKA45BT, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CKA Series 12.0 Ltr, PE6 CKA45CT, R/Ranger, 1/71-12/92 1971-1992Nissan Diesel UD CKA Series 12.0 Ltr, PE6T CKA46, R/Ranger, 1/88-12/92 1988-1992Nissan Diesel UD CKA Series 12.5 Ltr, PF6T CKA46, 1/91-12/92 1991-1992Nissan Diesel UD CKA Series 14.3 Ltr, RD8 CKA50BT, R/Ranger, 1/75- 1975Nissan Diesel UD CKB Series 12.5 Ltr, PF6T CKB450, R/Ranger, 1/92-12/94 1992-1994Nissan Diesel UD CKB Series 12.5 Ltr, PF6T CKB450, R/Ranger, 1/92-12/94 1992-1994Nissan Diesel UD CV Series 10.3 Ltr, PD6T CV41L, R/Ranger, 1/75-12/92, Twin steer 1975-1992Nissan Diesel UD CW Series 12.5 Ltr, PF6TA CW320, Eaton, 2/96-2/04 1996-2004Nissan Diesel UD CW Series 12.5 Ltr, PF6TA CW350, Eaton, 2/96-2/04 1996-2004Nissan Diesel UD CW Series 11.7 Ltr, PE6T CW46, 1/88-12/92 1988-1992Nissan Diesel UD CW Series 14.3 Ltr, RD8 CW50, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD CW Series 14.3 Ltr, RD8 CW51, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD CW Series 14.3 Ltr, RD8 CW52, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD CWA Series 12.0 Ltr TDI, PE6T CWA45, R/Ranger, 1/80-12/88 1980-1988Nissan Diesel UD CWA Series 12.0 Ltr, PE6 CWA45, R/Ranger, 1/75- 1975Nissan Diesel UD CWA Series 12.0 Ltr TDI, PE6T CWA46, R/Ranger, 1/80-12/88 1980-1988Nissan Diesel UD CWA Series 14.3 Ltr, RD8 CWA52, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD CWA Series 18.9 Ltr, RE10 CWA620, R/Ranger, 1/85-12/90 1985-1990Nissan Diesel UD CWA Series 14.0 Ltr, GD6-T CWA70, R/Ranger, 1/87-12/93 1987-1993Nissan Diesel UD CWA Series 21.2 Ltr, RF10 CWA720, R/Ranger, 1/85-12/90 1985-1990Nissan Diesel UD CWB Series 12.5 Ltr TDI, PF6T CWB450, R/Ranger, 1/92-12/94 1992-1994Nissan Diesel UD CWB Series 12.5 Ltr TDI, PF6TB CWB450, 1/92-12/94 1992-1994Nissan Diesel UD CWB Series 12.5 Ltr TDI, PF6T CWB452, 1/92-12/94 1992-1994Nissan Diesel UD CWB Series 12.5 Ltr TDI, PF6TB CWB455, Eaton, 1/92-12/94 1992-1994Nissan Diesel UD CWD Series 14.3 Ltr, RD8 CWD52, R/Ranger, 1/72- 1972Nissan Diesel UD KG Series 11.7 Ltr, PE6 KG30R, R/Ranger, 1/75- 1975Nissan Diesel UD KG Series 11.7 Ltr, PE6T Crane Carrier, KG45S, 1/91- 1991Nissan Diesel UD KG Series 14.3 Ltr, RD8 KG50T, R/Ranger, 1/75- 1975Nissan Diesel UD KK Series 10.3 Ltr, PD6 KK20G, R/Ranger, 1/75- 1975Nissan Diesel UD KW Series 11.7 Ltr, PE6T KW30M, R/Ranger, 1/75- 1975Nissan Diesel UD TW Series 14.3 Ltr, RD8 TW50HT, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD TWA Series 14.3 Ltr, RD8 TWA50, R/Ranger, 1/72-12/78 1972-1978Nissan Diesel UD TWA Series 14.3 Ltr, RD8 TWA51, R/Ranger, 1/72-12/78 1972-1978Nissan Diesel UD TWA Series 14.3 Ltr, RD8 TWA52, R/Ranger, 1/78- 1978Nissan Diesel UD TWA Series 14.3 Ltr, RD8 TWA52HT, R/Ranger, 1/72-12/80 1972-1980Nissan Diesel UD TWD Series 14.3 Ltr, RD8 TWD52, R/Ranger, 1/78- 1978Nissan Diesel UD TZ Series 14.3 Ltr, RD8 TZ50, R/Ranger, 1/72- 1972Nissan Diesel UD TZA Series 14.3 Ltr, RD8 TZA52, R/Ranger, 1/72- 1972Nissan Diesel UD UK Series 14.3 Ltr, RD8 UK50, R/Ranger, 1/75-12/77 1975-1977Nissan Diesel UD UW Series 14.3 Ltr, RD8 UW50, R/Ranger, 1/75-12/77 1975-1977Nissan Diesel UD UZ Series 14.3 Ltr, RD8 UZ50, R/Ranger, 1/75-12/77 1975-1977Nissan Diesel UD WD Series 14.3 Ltr, RD8 WD151, R/Ranger, 1/75-12/81 1975-1981Nissan Diesel UD WD Series 14.3 Ltr, RD8 WD180, R/Ranger, 1/75-12/81 1975-1981ORANGE
