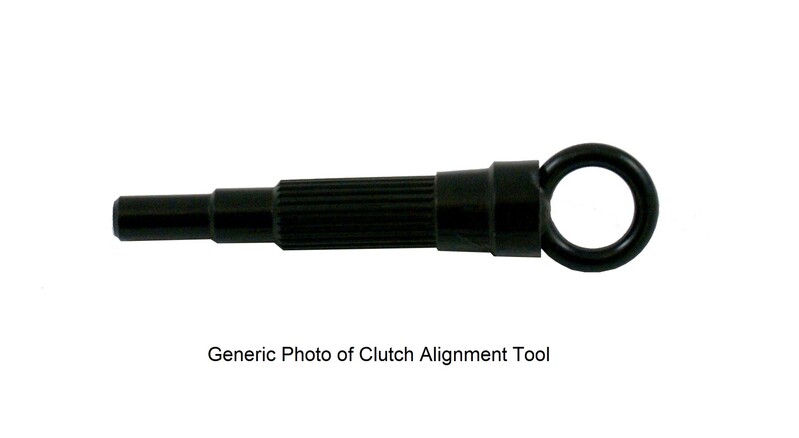

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Dodge A Series V8, PT3 A10-16BV, 5 Speed, 1/60-12/61, Normal & Forward control 1960-1961Dodge A Series V8, PT3 A10-60AV, 5 Speed, 1/60-12/61, Normal & Forward control 1960-1961Dodge A Series V8, PT3 A10-63BV, 5 Speed, 1/60-12/61, Normal & Forward control 1960-1961Dodge A Series V8, PT3 A10-75AV, 5 Speed, 1/60-12/61, Normal & Forward control 1960-1961Dodge A Series V8, PT3 A10-90AV, 5 Speed, 1/60-12/61, Normal & Forward control 1960-1961Dodge AT4 Series 361ci, V8 Petrol 760, 1/62-12/72 1962-1972Dodge AT4 Series 361ci, V8 Petrol 775, 1/62-12/72 1962-1972Dodge AT4 Series 361ci, V8 Petrol 784T, 1/62-12/72 1962-1972Hino FB Series 5.3 Ltr, J05C FB4J Ranger 4, 6/96-1/03 1996-2003International N1750 Series 6.9 Ltr, FE6B N1750, 6 Speed, 1/89-12/91 1989-1991Mercedes Benz 1418 Bus, OM346 6 Speed Eaton, 1/65-12/78 1965-1978Nissan Diesel UD CLG Series 6.9 Ltr, FE6B CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6A CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6B CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr TDI, FE6BT CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr TDI, FE6BT CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6A CLG87, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6B CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr TDI, FE6BT CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6A CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6B CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr TDI, FE6BT CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CLG Series 6.9 Ltr, FE6A CLG88, 1/88-12/94 1988-1994Nissan Diesel UD CMF Series 6.9 Ltr TDI, FE6BT CMF88, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr TDI, FE6BT CMF88, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr, FE6B CMF88, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr, FE6B CMF88, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr, FE6B CMF89, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr TDI, FE6BT CMF89, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr TDI, FE6BT CMF89, 1/88-12/92 1988-1992Nissan Diesel UD CMF Series 6.9 Ltr, FE6B CMF89, 1/88-12/92 1988-1992Nissan Diesel UD CPA Series 6.9 Ltr, FE6B CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPA Series 6.9 Ltr TDI, FE6BT CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPA Series 6.9 Ltr, FE6A CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPA Series 6.9 Ltr, FE6B CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPA Series 6.9 Ltr TDI, FE6BT CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPA Series 6.9 Ltr, FE6A CPA87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6B CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6B CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6A CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6A CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr TDI, FE6BT CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr TDI, FE6BT CPB87, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6A CPB88, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr TDI, FE6BT CPB88, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6B CPB88, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6B CPB88, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr, FE6A CPB88, 1/88-12/94 1988-1994Nissan Diesel UD CPB Series 6.9 Ltr TDI, FE6BT CPB88, 1/88-12/94 1988-1994Nissan Diesel UD LK Series 6.9 Ltr, FE6T LK185, 2/95-12/04 1995-2004Nissan Diesel UD LK Series 6.9 Ltr, FE6T LK185, 2/95- 1995Nissan Diesel UD LK Series 6.9 Ltr, FE6TA LK235, 6 Speed, 5/99- 1999Nissan Diesel UD LK Series 6.9 Ltr, FE6TA LK235, 6 Speed, 5/99-2/04 1999-2004Nissan Diesel UD MK Series 6.9 Ltr, FE6T MK180, 1/96-1/05 1996-2005Nissan Diesel UD MK Series 6.9 Ltr, FE6T MK180, 1/96-1/05 1996-2005Nissan Diesel UD MK Series 6.9 Ltr, FE6TA MK235, 6 Speed, 1/94- 1994Nissan Diesel UD MK Series 6.9 Ltr, FE6TA MK235, 6 Speed, 1/94-11/00 1994-2000Nissan Diesel UD MK Series 6.9 Ltr TDI, FE6TB MK240, 6 Speed, 3/04-12/09 2004-2009Nissan Diesel UD MK Series 6.9 Ltr TDI, FE6TB MK240, 6 Speed, 3/04- 2004Nissan Diesel UD MK Series 6.9 Ltr TDI, FE6TB MK245, 6 Speed, 3/04-12/07 2004-2007Nissan Diesel UD MK Series 6.9 Ltr TDI, FE6TB MK245, 6 Speed, 3/04- 2004Nissan Diesel UD MK Series 6.9 Ltr, FE6TA MK255, 1/94- 1994Nissan Diesel UD MK Series 6.9 Ltr, FE6TA MK255, 1/94-11/00 1994-2000Nissan Diesel UD MKC Series 6.9 Ltr, FE6T MKC210, 1/93-12/03 1993-2003Nissan Diesel UD MKC Series 6.9 Ltr, FE6T MKC210, 1/93- 1993Nissan Diesel UD PK 220 6.9 Ltr, FE6 PKF210, 1/98-12/05 1998-2005Nissan Diesel UD PK 220 6.9 Ltr, FE6 PKF210, 1/98-12/05 1998-2005Nissan Diesel UD PK 242 6.9 Ltr, FE6 PKB215, 1/06-12/10 2006-2010Nissan Diesel UD PK 242 6.9 Ltr, FE6 PKB215, 1/06-12/10 2006-2010Nissan Diesel UD PK 245 6.9 Ltr, FE6TB PKC215, 6 Speed UD, 1/03-12/10 2003-2010Nissan Diesel UD PK 245 6.9 Ltr, FE6TB PKC215, 6 Speed UD, 1/03-12/10 2003-2010Nissan Diesel UD PK Series 6.9 Ltr, FE6T PK220, 6 Speed, 2/98-11/00 1998-2000Nissan Diesel UD PK Series 6.9 Ltr, FE6T PK220, 6 Speed, 2/98-11/00 1998-2000Nissan Diesel UD PK Series 6.9 Ltr, FE6TA PK235, 6 Speed, 1/94- 1994Nissan Diesel UD PK Series 6.9 Ltr, FE6TA PK235, 6 Speed, 1/94-12/05 1994-2005Nissan Diesel UD PKB Series 6.9 Ltr, FE6T PKB210, 1/96-12/05 1996-2005Nissan Diesel UD PKB Series 6.9 Ltr, FE6T PKB210, 1/96-12/05 1996-2005Nissan Diesel UD PKC Series 6.9 Ltr, FE6T PKC212, 9 Speed, 1/01- 2001Nissan Diesel UD PKC Series 6.9 Ltr, FE6T PKC212, 9 Speed, 1/01-12/05 2001-2005Nissan Diesel UD MK Series 6.9 Ltr, FE6T MK185, 6 Speed, 1/96-1/05 1996-2005ORANGE
