Designed and manufactured to replace the clutch system installed as Original Equipment, a 4Terrain Ultimate replacement clutch kit offers the ultimate torque capacity increase. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 70 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, CI is the trusted source for a complete range of Clutch Kits suited to your vehicle. PATENTED 4TERRAIN OFF ROAD COVER ASSEMBLY: 4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation. SPHEROIDAL GRAPHITE CASTINGS: Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion. BALANCED COVERS: To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process. 4TERRAIN DUAL FRICTION CLUTCH PLATE: 4Terrain Ultimate Clutch Kits feature a dual friction clutch plate. Organic material on the flywheel side is replaced with Aramid, the same material used in bulletproof vests, for improved fade resistance and increased torque capacity due to a higher coefficient of friction. 4Terrain Ultimate plates are the ultimate for your 4x4.

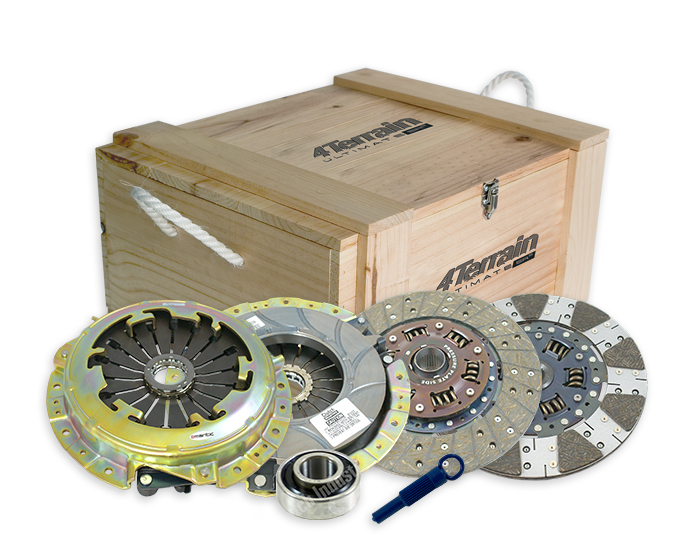

This kit includes : 4TERRAIN ER2 Heavy Duty Cover Assembly, 4Terrain Aramid Dual Friction, High Torque, Clutch Plate, Release bearing, Clutch Alignment Tool, Spigot Bearing

Features and Specifications
  • Patented ER2 High Torque SGI Cover Assembly
  • Aramid Dual Friction Clutch Plate
  • Dual Mass Flywheel: Not Included
  • Flywheel Step: -12
  • Solid Flywheel: Not Included
  • Concentric Slave Cylinder: Not Included
  • Spigot: RSB577
  • Alignment Tool: CAT154
  • Torque Capacity: Peak: 777Nm, Rated: 622Nm

    • Fitment:
  • Holden Frontera 3.2 Ltr 24V, 6VD1, 151kw 4WD, 1/95-6/99 1995-1999
  • Holden Frontera 3.2 Ltr 24V, 6VD1, 151kw 4WD, 7/99-6/04 1999-2004
  • Holden Jackaroo 3.2 Ltr, 6VD1 UBS L2 4WD, 4/92-2/98 1992-1998
  • Holden Jackaroo 3.2 Ltr, 6VD1 UBS25 4WD, 4/92-2/98 1992-1998
  • Holden Rodeo 3.2 Ltr V6, 6VD1 R7, 2/98-6/98 1998-1998
  • Holden Rodeo 3.2 Ltr V6, 6VD1 R9, 6/98-2/03 1998-2003
  • Holden Rodeo 3.2 Ltr V6, 6VD1 TF (incl 4WD), 6/98-2/03 1998-2003
  • Isuzu Bighorn 3.2 Ltr, 6VD1, 149kw UBS25GW, 12/91-1/98 1991-1998
