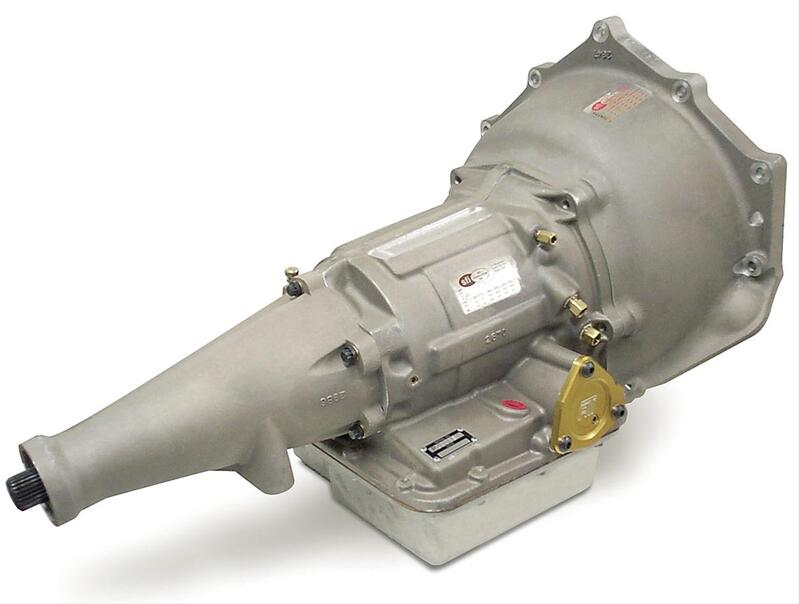

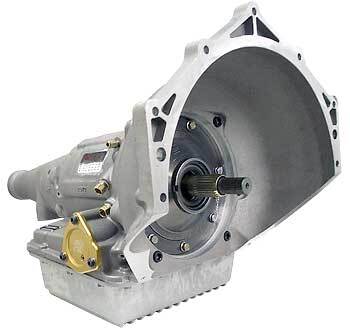

High Impact Pro Glide ®
For high horsepower applications. ATI High Impact Powerglide Racing Transmissions are recommended for vehicles that produce more than 1500 HP and need the added reliability offered by these heavy-duty gear combinations. High Impact Transmissions are built with many other components as “standard equipment” that would usually be needed with high horsepower combinations.

Max HP
1,800 HP

Specs
• 9310 or Vasco Straight Cut Gear Set
• New Precision Balanced Carrier with 4340 Output
• SFI 4.1 & 30.1 SuperCase
• HD Extension Housing with Bearing
• Wicked Quick® Billet Aluminum
   Safety Reverse Trans Brake Valve Body
• Vasco Ringless Input Shaft
• 10 Clutch High Gear Drum
• New Kevlar Band
• New Billet Clutch Hub
• High Flow Front Pump
• Heat-Treated and Pinned Stator Tube
• Billet Twin Seal Servo and Alum Cover

CRITICAL LOW GEAR BAND ADJUSTMENT - To keep your ATI Steel Drum Powerglide trans in good working order, you must keep the band adjustment in check. 80 inch lbs - back out 3.5 turns! For Aluminum Drums, 80 in lbs - back out 4.5 turns

For Pro Glide® and High Impact Transmissions: Adjust at the end of each race day, or every five passes, when unit is new. Once you check and there is little to no change then check it every 25 passes.

For Superglide® Transmissions: Check and adjust the band after each pass (especially important when brand new). Once the band stops changing then check at the end of each race day or after 8 rounds. This will vary with HP as Superglide units are rated from 2000 to 3500 HP. Just remember five minutes of maintenance here will help the low gear band do its job. Call a Sales Technician for more info.
