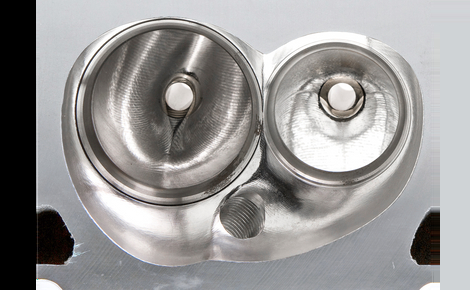

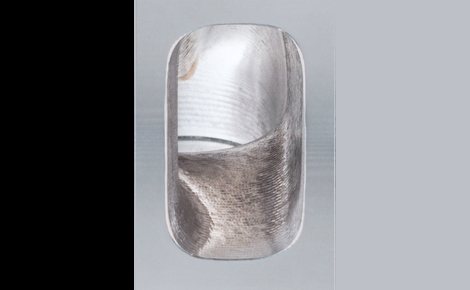

AFR's 205cc "Competition" cylinder heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for race applications and very agressive street/strip builds operating up to 7400 RPM. Maximum intake flow potential @0.750" lift is 331 CFM. AFR heads are available bare (without parts), call our tech line for details.

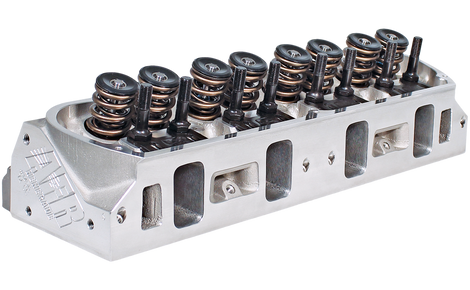

205cc Aluminum SBF Cylinder Heads
Part # Rocker Type Combustion Chamber
1450 Stud Mount 58cc
1458 Stud Mount 72cc



205cc Street Head Flow Chart
  .200 .300 .400 .500 .550 .600 .700 .750
Int 139 199 251 285 297 308 317 320
Exh 121 170 206 219 227 230 232 234
