Our largest and highest flowing head for the small block ford is the best in-line head money can buy. Featuring 220cc intake runners, this package is recommended for race applications and radical "Pro-Street" builds. Available with 58cc or 72cc combustions chambers, you can further customize your setup with our various components upgrades and available machining options. AFR heads are available bare (without parts), call our tech line for details.

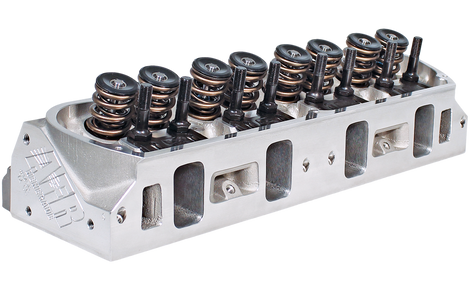

SBF 220cc Aluminum Cylinder Heads
Part # Rocker Type Combustion Chamber
1451 Stud Mount 58cc
1456 Stud Mount 72cc



220cc Street Head Flow Chart
  .200 .300 .400 .500 .600 .700 .800
Int 135 194 258 295 315 325 331
Exh 121 171 215 238 245 249 250
