Recommended for displacements up to 408 cubic inches, operating up to 6500-6800 RPM, our 195cc "Competition" cylinder heads feature 100% CNC machined intake ports, exhaust ports and combustion chambers. Manufactured in A356 aluminum and assembled with high quality components. Not compatible with OEM pistons. Component upgrades and different machining options are available to suit your specific build. AFR heads are available bare (without parts), call our tech line for details.

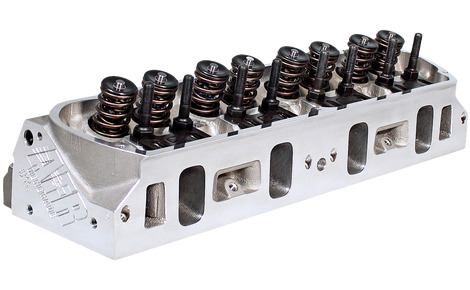

195cc Aluminum SBF Cylinder Heads
Part # Description Combustion Chamber
1426-716 Stud Mount - With EGR & Air Pump 58cc
1428-716 Stud Mount - With EGR & Air Pump 72cc
1381-716 Stud Mount - Without EGR & Air Pump 58cc
1383-716 Stud Mount - Without EGR & Air Pump 72cc



195cc Competition Head Flow Chart
  .200 .300 .400 .500 .550 .600 .650
Int 148 201 255 283 292 294 298
Exh 126 171 207 222 227 231 235
