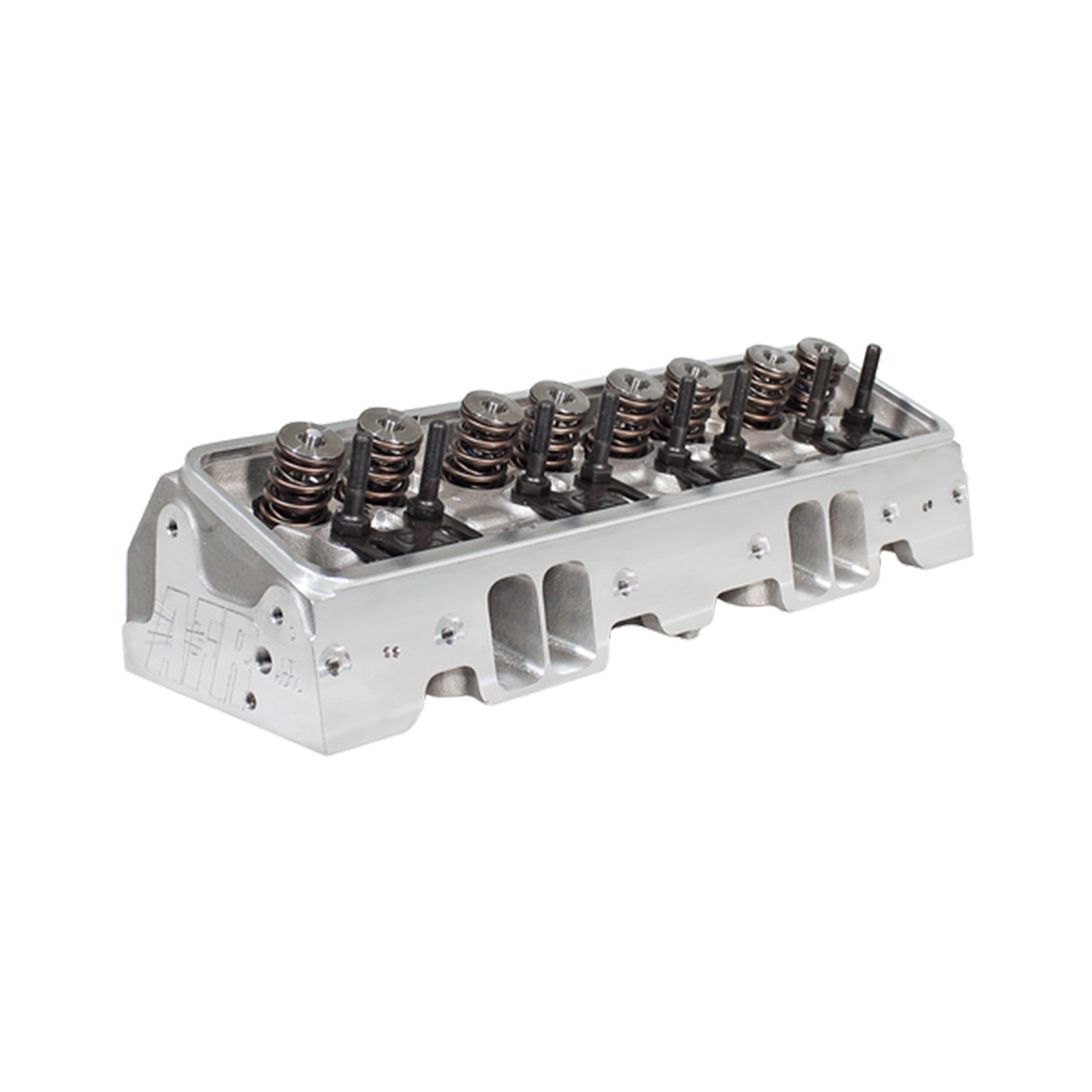

AFR 195cc SBC Eliminator LT 23 degree cylinder heads feature100 percent CNC-ported intakes, exhausts, and chambers, as well as A356 aluminum castings and high-quality components throughout. They are emissions-legal (CARB E.O. #D-250-2 for engines up to 1994). These LT1/LT4 heads are designed for the Gen II reversed-cooled SBC engines from 1992-97, and are machined to accept both center bolt and perimeter bolt valve covers. Their excellent build and flow characteristics are recommended for displacements up to 400 cu. in. with an operating range up to 6500 rpm (6,500 – 6,800 rpm for the Competition heads). AFR 195cc SBC Eliminator LT heads typically include: * 8mm bead lock intake and exhaust valves * Hydraulic dual valve spring * 7 degree chromoly retainers * 7 degree bead lock valve keepers * ARP rocker studs * Adjustable 5/16 in. guide plates * Viton valve seals * Hardened valve spring * Ductile iron intake and exhaust valve seats * 8mm bronze valve guides
