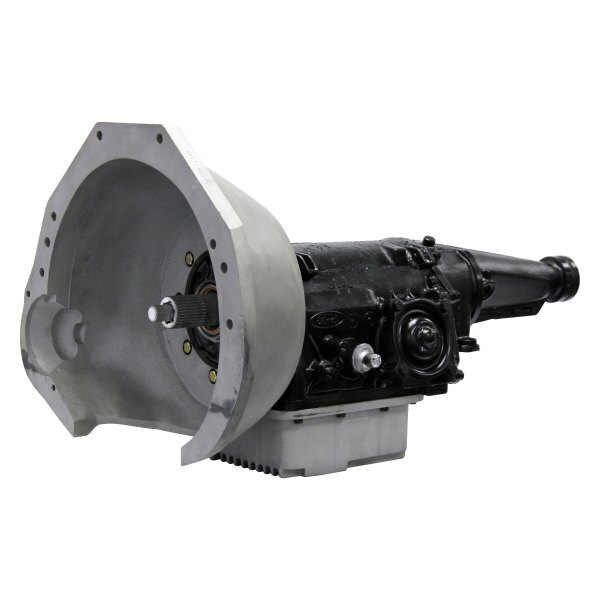

JW Ford C4 Performance & Bellhousing Kit

Over the years the Ford C4 transmission has proven to be a quick and reliable transmission for all forms of racing. J.W. Performance offers the Ford C4 in Reverse Manual and Reverse Manual with trans-brake options. All J.W. Performance C4's feature a 26 spline input shaft, billet servo cover and performance clutches. Many upgrades are available to make this transmission handle horsepower levels up to 650hp! All C4's come ready for your choice of bellhousing fbellhousing sold separate).

RTS Transmissions SFI Bellhousing

Using the latest casting technologies, RTS has designed these cast aluminium bellhousings allowing many popular engine/transmission combinations to be easily mated together. They have gone through SFI’s explosion-proof testing procedures and have come out the other side with a SFI 30.1 rating! Manufactured from one-piece A356-T6 cast aluminium, they are roughly 5 times stronger than standard replacement bellhousings and can withstand the harshest tyre shake, while still being able to fit under most floorpans.

  • Small Block SB Ford 289, 302, 351 Windsor & Cleveland
  • SFI 30.1 Certified
  • Works with OEM C4 case
  • Mounts to front pump on C10 applications
  • Must use torque converter with small bolt circle (10.5")
  • Works with most 11" and smaller torque converters
  • T6 cast aluminium
  • Precision machined
  • 5x stronger than OEM
  • Hardware kit included
  • Requires removal of OEM bellhousing on OEM cases
  • Use 157 tooth flexplate
  • Please use RTS-BH007-CVR if you wish to cover access hole
