Outputs: CAN and 0-5 V analogue outputs.

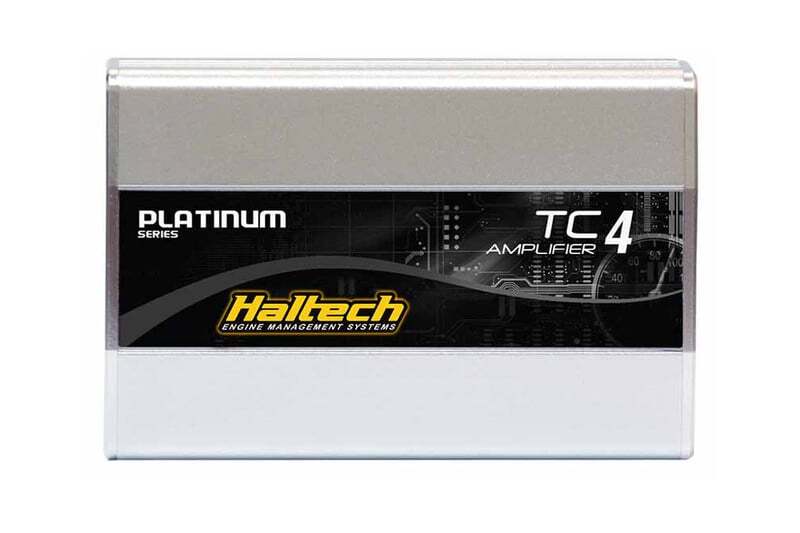

Includes: Quad Channel Thermocouple Amplifier, Elite CAN cable DTM-4 to 8 pin Black Tyco - 300mm (12")

Notes: Combine two Dual and/or Quad Channel Thermocouple Amplifiers with different CAN ID's (Box A or B) for up to 12 channels (subject to ECU compatibility)


OVERVIEW

As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB.If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation.If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation.in a suitable length for your specific installation.Cables are available from 75mm (3") to 3600mm (144")Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.
