Haltech GM Gen III V8 (LS1/LS6) Terminated Engine Harness Kits, Nexus R5 VCU + LSx DBW Terminated Harness Injector Connector: EV6, Kit
Part Number:HT-195405
$7,864.00
or buy now, pay later with

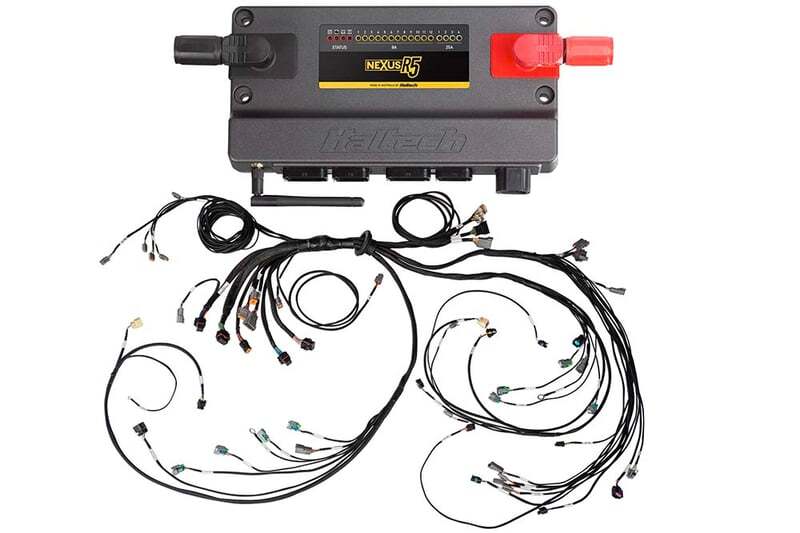

Includes: 1 x HT-195000 - Nexus R5 ECU1 x HT-186205 - Terminated Harness
OVERVIEW
Terminated harness suits LSx engines with DBW, and incorporates PDM functionality.
- EV6 primary injector plugs.
- Plug and play with the OEM Ignition sub-harness on the engine. (Required)
- ^ Includes
- 1 x HT-186205 Terminated Harness
- 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
- 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
- 1 x DT-8 connector with pre-crimped 18AWG wires
- 1 x 2 pin Bosch alternator adaptor harness
- 1 x 2 pin Yazaki alternator adaptor harness
- 1 x 4 pin Delco alternator adapter harness
VCU OVERVIEW
Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
FEATURES
- 8 x Primary injectors (EV6)
- Breakout plug for 8 x Secondary injectors
- 2 x outputs available for Tertiary injection
- Universal breakout for accelerator pedal wiring
- Single / Dual boost solenoid control
- Dual wideband sensor control (R5 onboard wideband controller)
- Flex fuel sensor connection
- Direct fuel pump control (using 25A-HCO)
- Direct thermofan control (using 25A-HCO)
- In cabin breakout connector for spare inputs and outputs
- Engine bay breakout connector for spare inputs and outputs (eg transmission control)
- Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
- Haltech CAN Bus support (DTM-4)
VCU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
